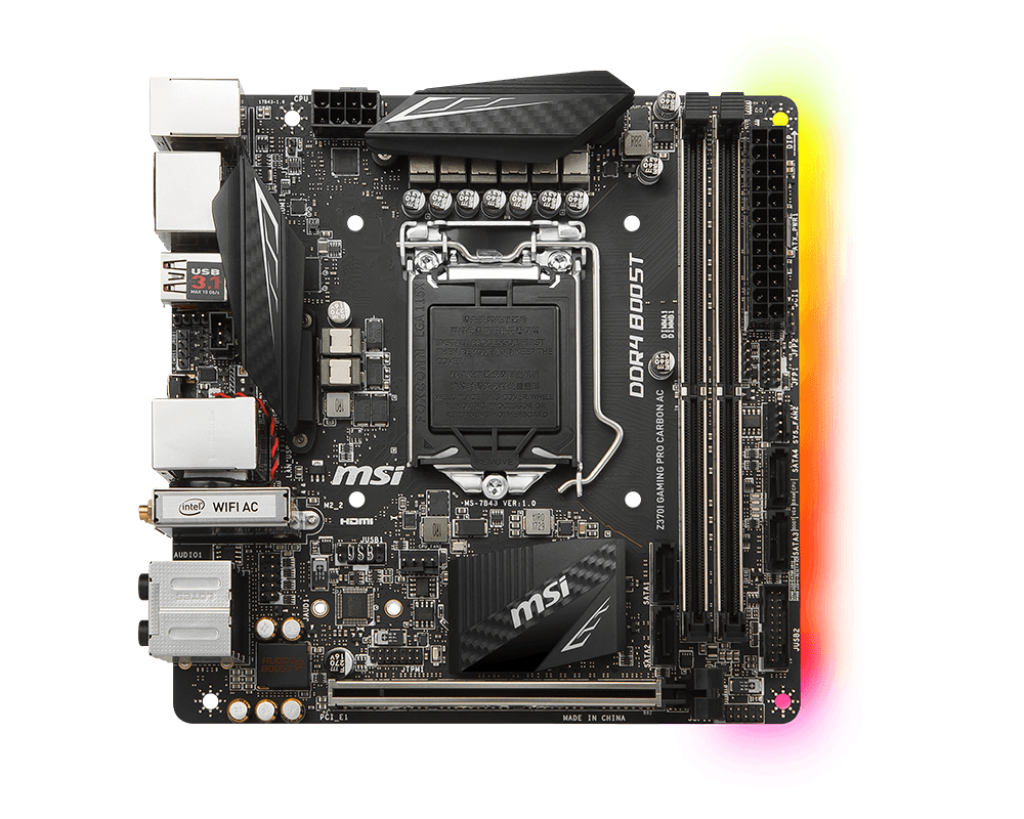

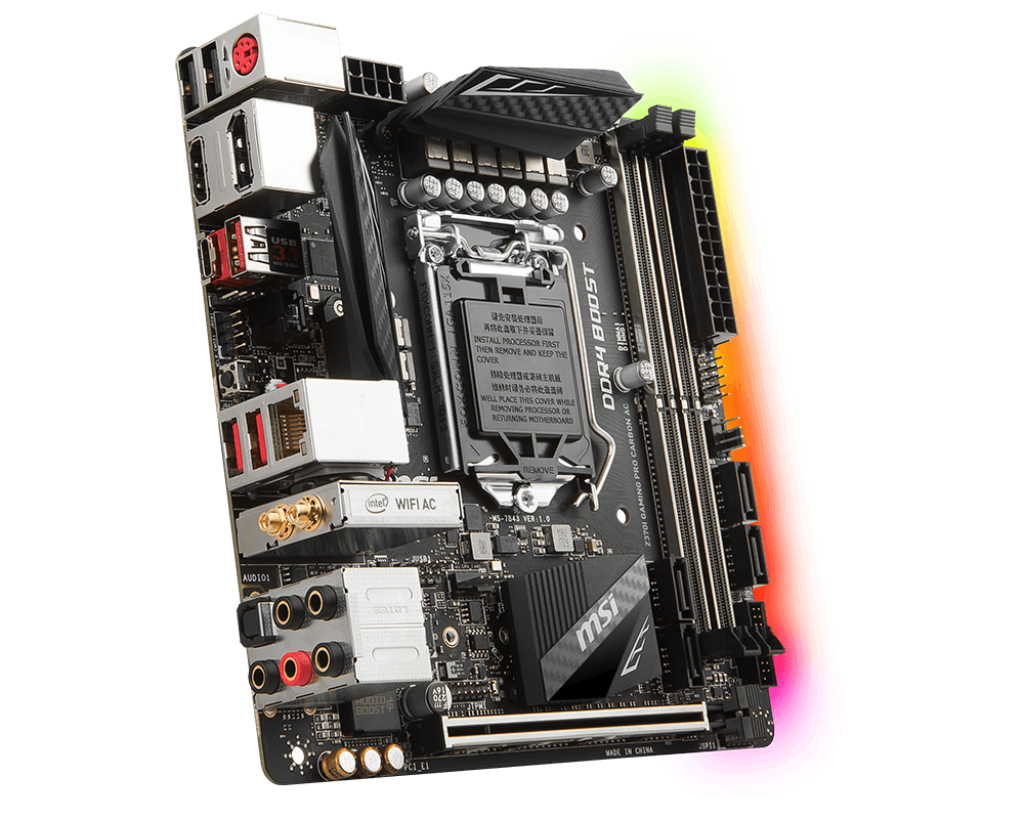

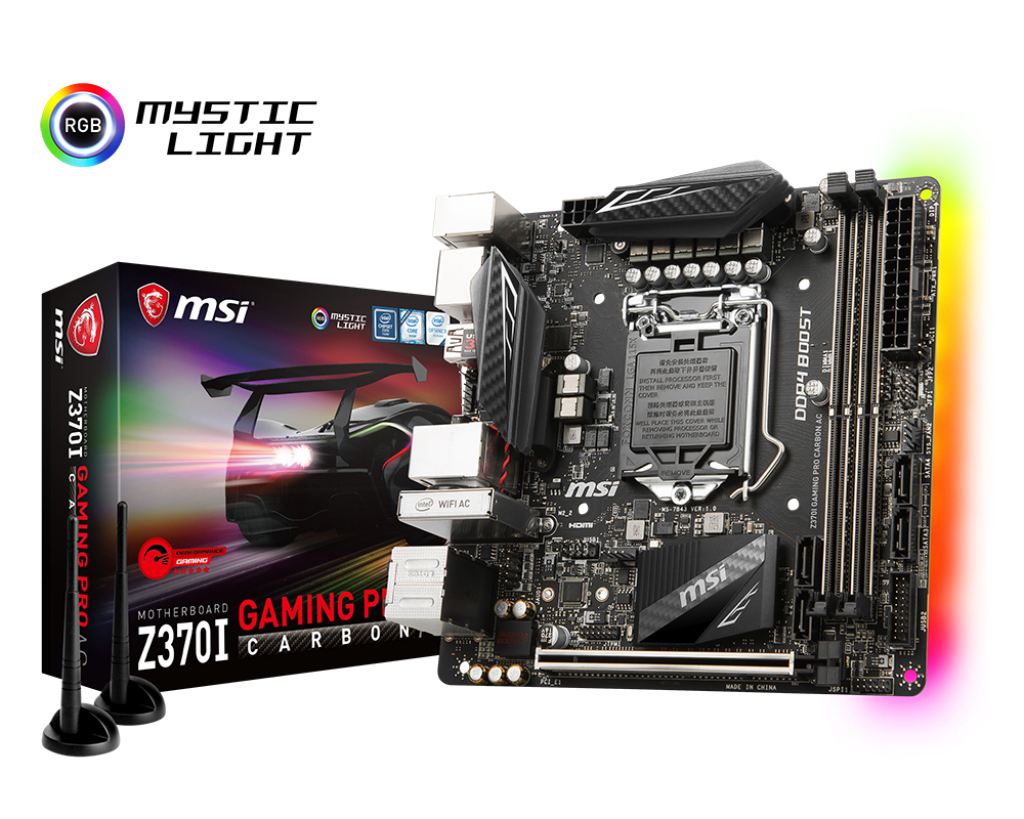

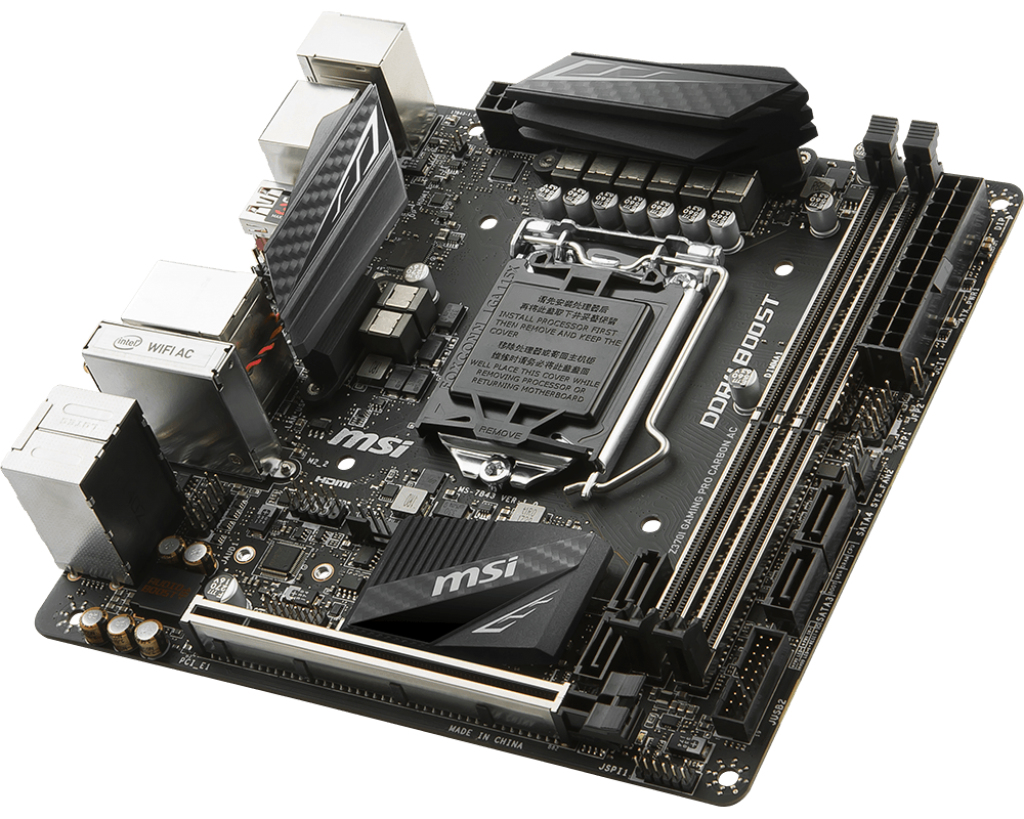

MSI Z370I GAMING PRO CARBON AC

MSI Z370I GAMING PRO CARBON AC

Model Z370I GAMING PRO CARBON ACEAN 824142154731

75 specifications
  • SpeedWi-Fi 5 (802.11ac)
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
  • Supported storage drive typesHDD & SSD
  • Maximum resolution4096 x 2304 pixels
  • USB 2.0 connectors1
See all specifications

Overview

Speed
Wi-Fi 5 (802.11ac)
Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
Supported storage drive types
HDD & SSD
Maximum resolution
4096 x 2304 pixels
USB 2.0 connectors
1
Brand
MSI
Category
Motherboard
Model
Z370I GAMING PRO CARBON AC
Part number
Z370I GAMING PRO CARBON AC
EAN / UPC
824142154731, 4719072540333
Also known as
MSI Z370I GAMING PRO CARBON AC motherboard Intel® Z370 LGA 1151 (Socket H4) mini ITX

Specifications

75 specifications in 13 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1151 (Socket H4)
Compatible processor seriesIntel® Celeron®, Intel® Pentium®
Supported processor socketsLGA 1151 (Socket H4)

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots2
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds2133,2400,2667,2800,3000,3200,3300,3333,3466,3600,3733,3866,4000,4133,4266,4333,4400,4500 MHz
Supported memory clock speed (max)4500 MHz
Maximum internal memory32 GB

Storage controllers

Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, SATA III
RAID supportYes
RAID levels0, 1, 5, 10

Graphics

Maximum resolution4096 x 2304 pixels
DirectX version12.0

Internal I/O

USB 2.0 connectors1
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
Number of SATA III connectors4
Number of SATA II connectors0
Number of SATA connectors4
Number of Parallel ATA connectors0
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Chassis intrusion connectorYes
Peripheral (Molex) power connectors (4-pin)1
12V power connectorYes
TPM connectorYes

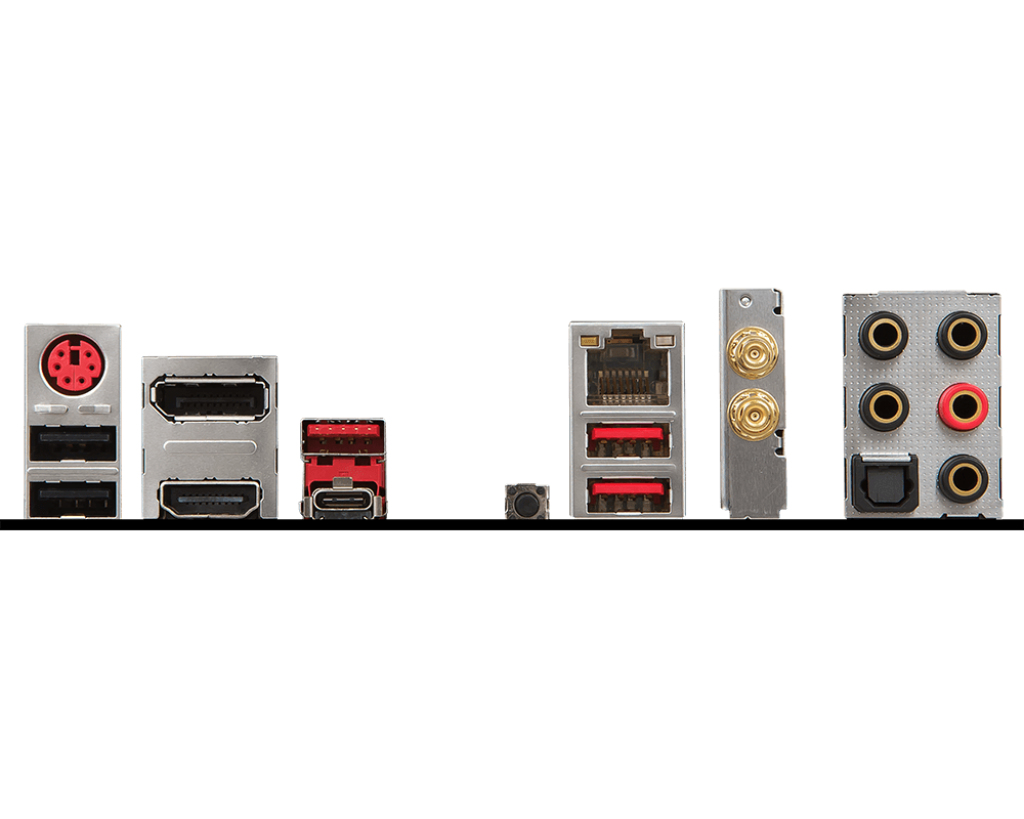

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity1
DVI-D ports quantity0
DisplayPorts quantity1
S/PDIF out portYes
Digital audio optical out5
WiFi-AP antenna jack2

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerIntel® I219-V
Wi-FiYes
Top Wi-Fi standardWi-Fi 5 (802.11ac)
Wi-Fi standards802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
WLAN controller modelIntel Dual Band Wireless-AC 8265
BluetoothYes
Bluetooth version4.2

Features

Component forPC
Motherboard form factormini ITX
Motherboard chipset familyIntel
Motherboard chipsetIntel® Z370
Audio chipRealtek ALC1220
Audio output channels7.1 channels
Power source typeATX
Windows operating systems supportedWindows 10 x64

Expansion slots

PCI Express x16 (Gen 3.x) slots1
Number of M.2 (M) slots1

BIOS

Clear CMOS jumperYes
Clear CMOS buttonYes

Processor special features

Intel Extreme Memory Profile (XMP)Yes
Intel® Optane™ Memory ReadyYes

Weight & dimensions

Width170 mm
Depth170 mm

Other features

Analog audio output5
