MSI Z370 GAMING PRO CARBON AC

MSI Z370 GAMING PRO CARBON AC

Model Z370 GAMING PRO CARBON ACEAN 824142152508

86 specifications
  • SpeedWi-Fi 5 (802.11ac)
  • ColourBlack
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
  • Supported storage drive typesHDD & SSD
  • USB 2.0 connectors2
See all specifications

Overview

Speed
Wi-Fi 5 (802.11ac)
Colour
Black
Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
Supported storage drive types
HDD & SSD
USB 2.0 connectors
2
Brand
MSI
Category
Motherboard
Model
Z370 GAMING PRO CARBON AC
Part number
Z370 GAMING PRO CARBON AC
EAN / UPC
824142152508, 2000030029031, 4719072540456
Also known as
MSI Z370 GAMING PRO CARBON AC motherboard Intel® Z370 LGA 1151 (Socket H4) ATX

Specifications

86 specifications in 14 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1151 (Socket H4)
Compatible processor seriesIntel® Celeron®, Intel® Pentium®
Maximum number of SMP processors1
Supported processor socketsLGA 1151 (Socket H4)

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds2133,4000 MHz
Supported memory clock speed (max)4000 MHz
Maximum internal memory64 GB
Unbuffered memoryYes

Storage controllers

Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, SATA III
RAID supportYes
RAID levels0, 1, 5, 10

Graphics

Parallel processing technology support2-Way CrossFireX, 2-Way SLI, 3-Way CrossFireX
Graphics card familyIntel
DirectX version12.0
Discrete graphics supportYes

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
Number of SATA III connectors6
Number of SATA II connectors0
Number of SATA connectors6
Number of Parallel ATA connectors0
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors4
Chassis intrusion connectorYes
EPS power connector (8-pin)Yes
TPM connectorYes

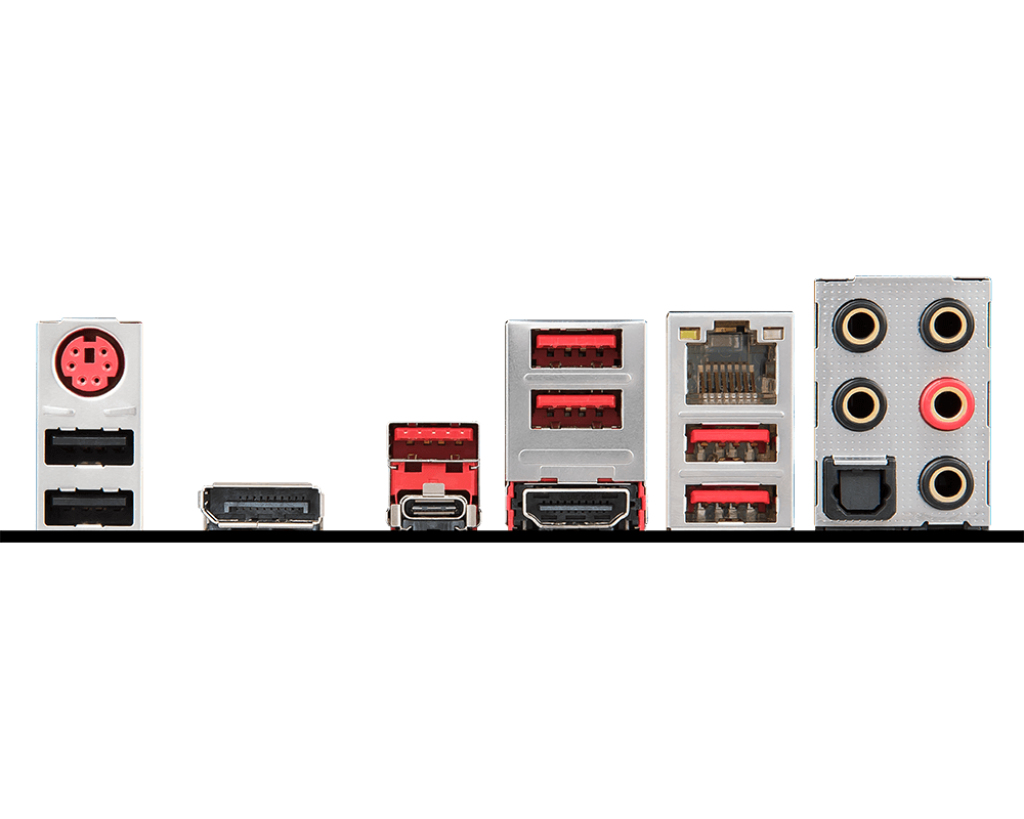

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity1
DVI-D ports quantity0
DisplayPorts quantity1
Headphone outputs1
Microphone inYes
S/PDIF out portYes
Digital audio optical out5

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerIntel® I219-V
Wi-FiYes
Top Wi-Fi standardWi-Fi 5 (802.11ac)
Wi-Fi standards802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
WLAN controller modelIntel Dual Band Wireless-AC 8265
BluetoothYes
Bluetooth version4.2

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® Z370
Audio chipRealtek ALC1220
Audio output channels7.1 channels
Product colourBlack
PC health monitoringCPU, Fan, Power supply, Temperature, Voltage
Cooling typePassive
Power source typeATX
Windows operating systems supportedYes

Expansion slots

PCI Express x1 slots3
PCI Express x1 (Gen 3.x) slots3
PCI Express x16 (Gen 3.x) slots3
Number of M.2 (M) slots2

BIOS

BIOS typeUEFI

Processor special features

Intel Extreme Memory Profile (XMP)Yes
Intel® Optane™ Memory ReadyYes

Weight & dimensions

Width243 mm
Height304 mm

Packaging content

Cables includedSATA
Drivers includedYes

Other features

Quick installation guideYes
