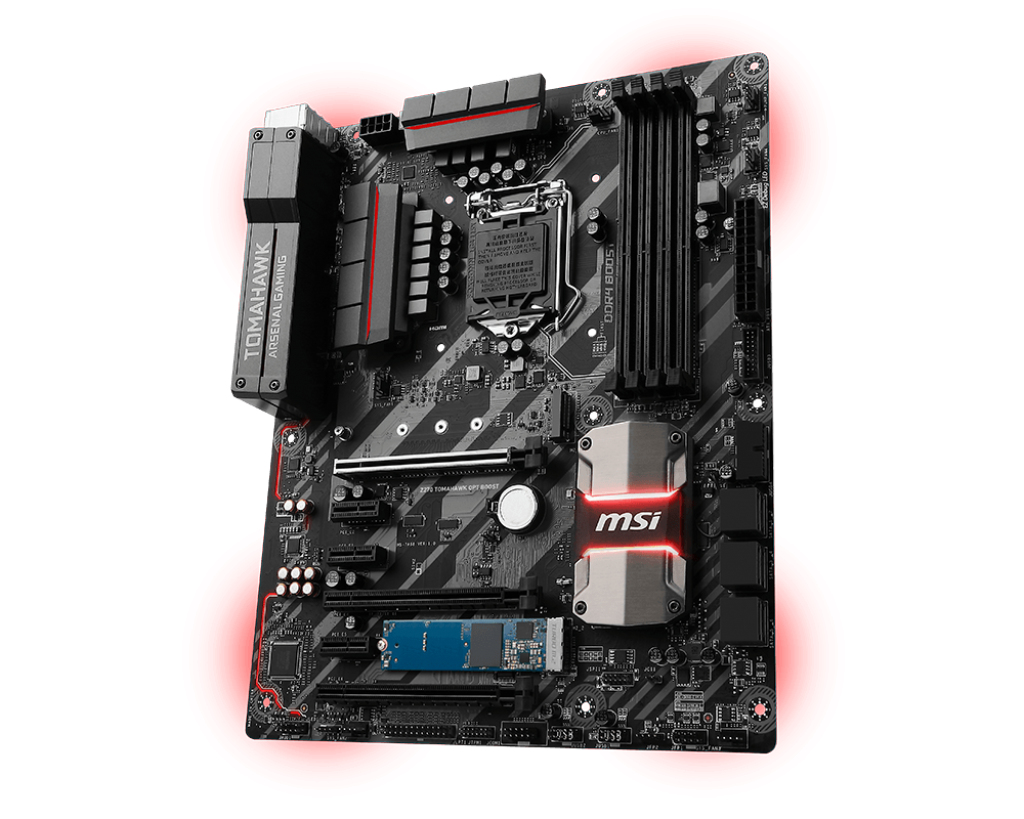

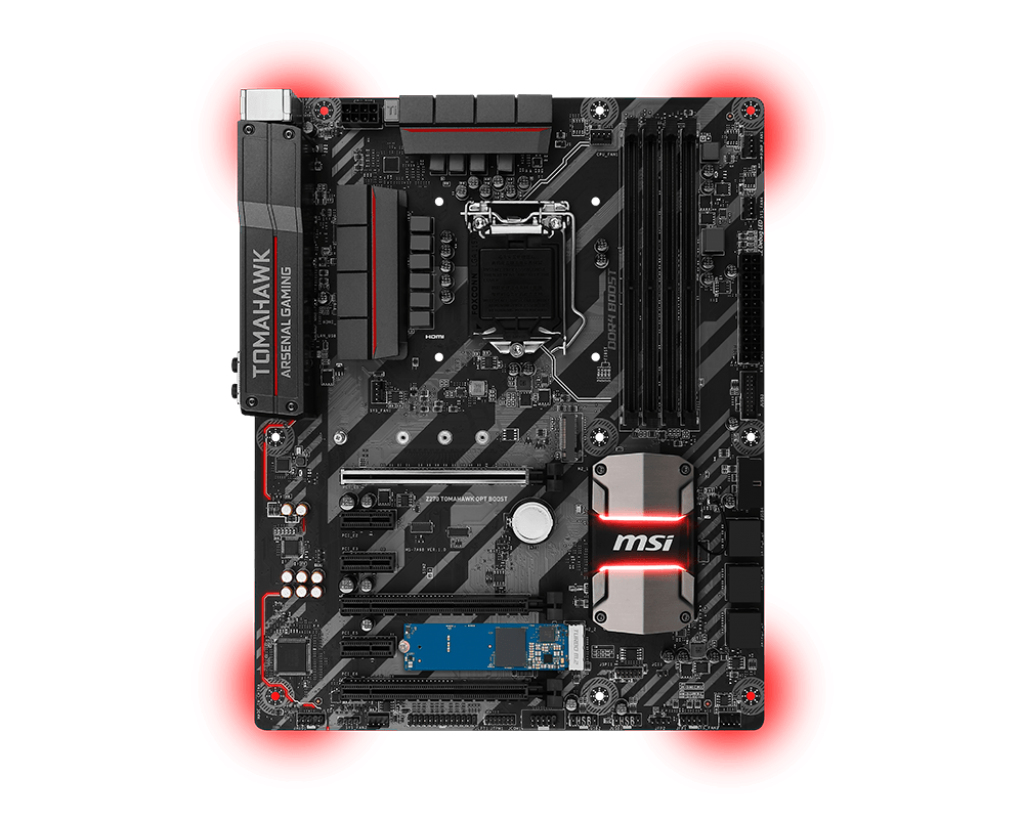

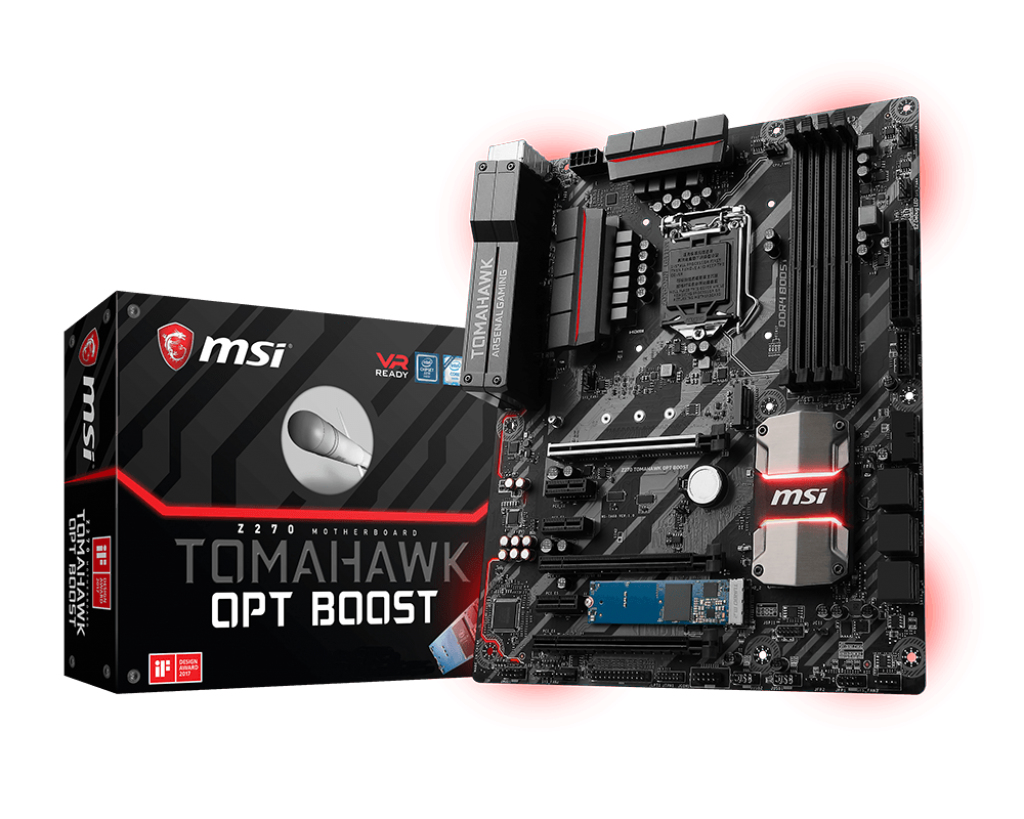

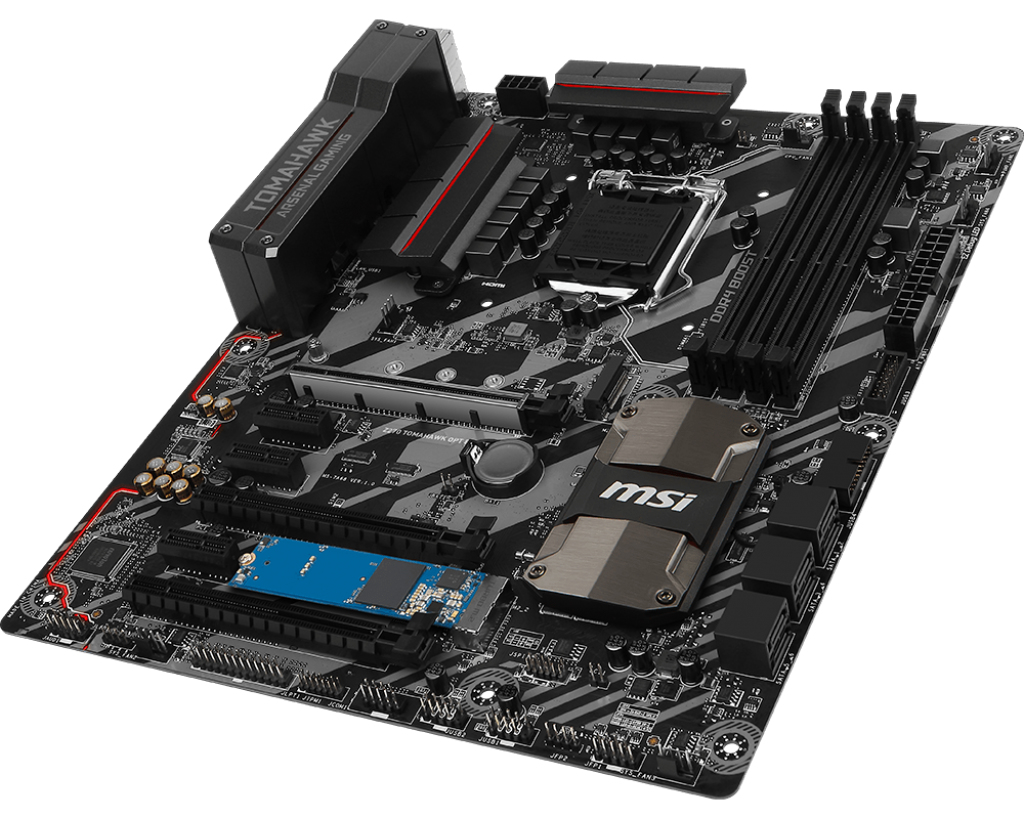

MSI Z270 TOMAHAWK OPT BOOST

MSI Z270 TOMAHAWK OPT BOOST

Model Z270 TOMAHAWK OPT BOOST

62 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
  • RAID levels0, 1, 5, 10
  • USB 2.0 connectors2
  • Ethernet LANYes
  • Component forPC
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
RAID levels
0, 1, 5, 10
USB 2.0 connectors
2
Ethernet LAN
Yes
Component for
PC
Brand
MSI
Category
Motherboard
Model
Z270 TOMAHAWK OPT BOOST
Part number
Z270 TOMAHAWK OPT BOOST
Also known as
MSI Z270 TOMAHAWK OPT BOOST motherboard Intel® Z270 LGA 1151 (Socket H4) ATX

Specifications

62 specifications in 12 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1151 (Socket H4)
Compatible processor seriesIntel® Celeron®, Intel® Pentium®

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
Supported memory clock speeds2133,2400,2600,2800,3000,3200,3600,3800 MHz
Maximum internal memory64 GB
Supported memory module capacities16GB

Storage controllers

RAID levels0, 1, 5, 10

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
Number of SATA III connectors6
Number of SATA II connectors0
Number of Parallel ATA connectors0
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors4
Chassis intrusion connectorYes
EPS power connector (8-pin)Yes
Serial port headers1
TPM connectorYes

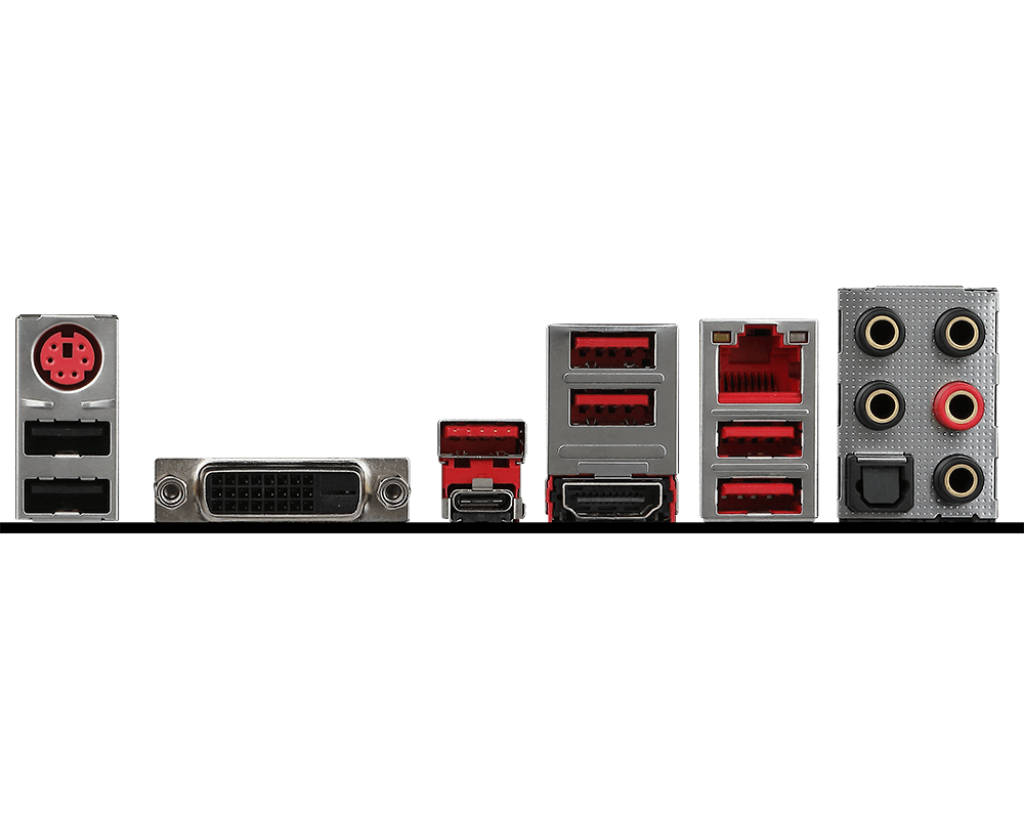

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity1
DVI-D ports quantity1
Headphone outputs1
Microphone inYes
S/PDIF out portYes

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerIntel® I219-V

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® Z270
Audio output channels7.1 channels
Power source typeATX
Linux operating systems supportedYes
Windows operating systems supportedYes

Expansion slots

PCI Express x1 (Gen 3.x) slots3
PCI Express x16 (Gen 3.x) slots3

BIOS

BIOS typeUEFI AMI
Clear CMOS jumperYes

Processor special features

Intel® Optane™ Memory ReadyYes
Intel® Optane™ Memory module installedYes

Weight & dimensions

Width243 mm
Depth304 mm

Other features

Parallel port via internal headerYes
Serial port via internal headerYes
