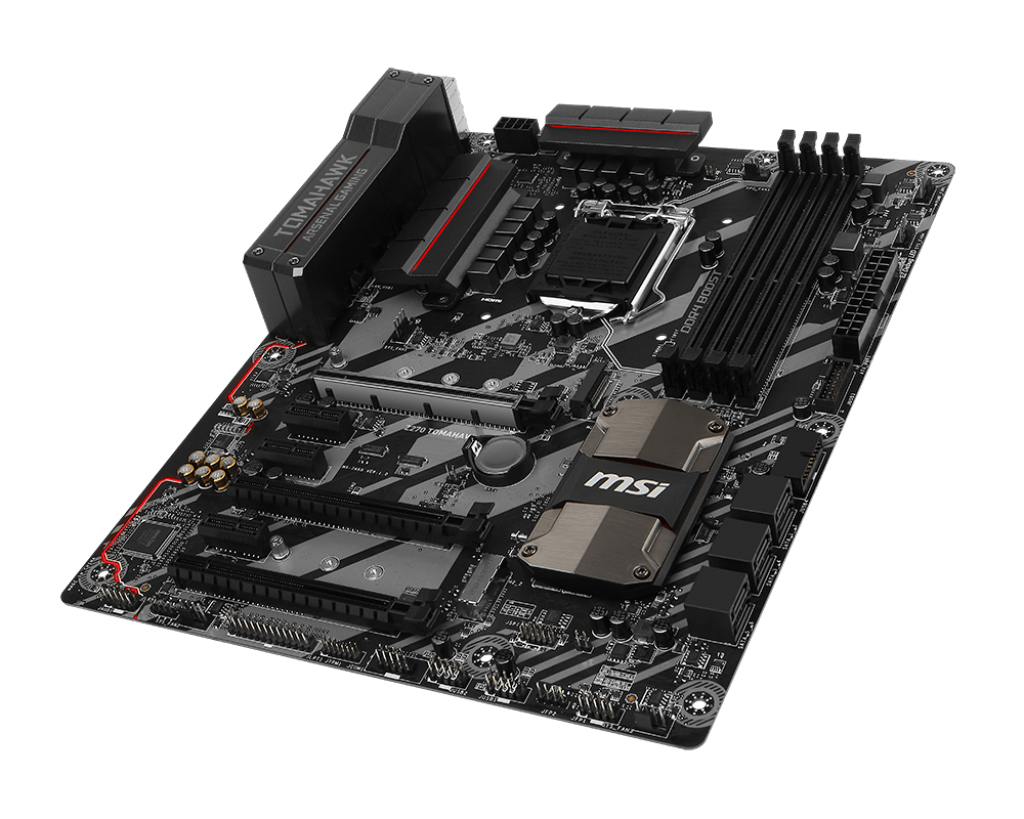

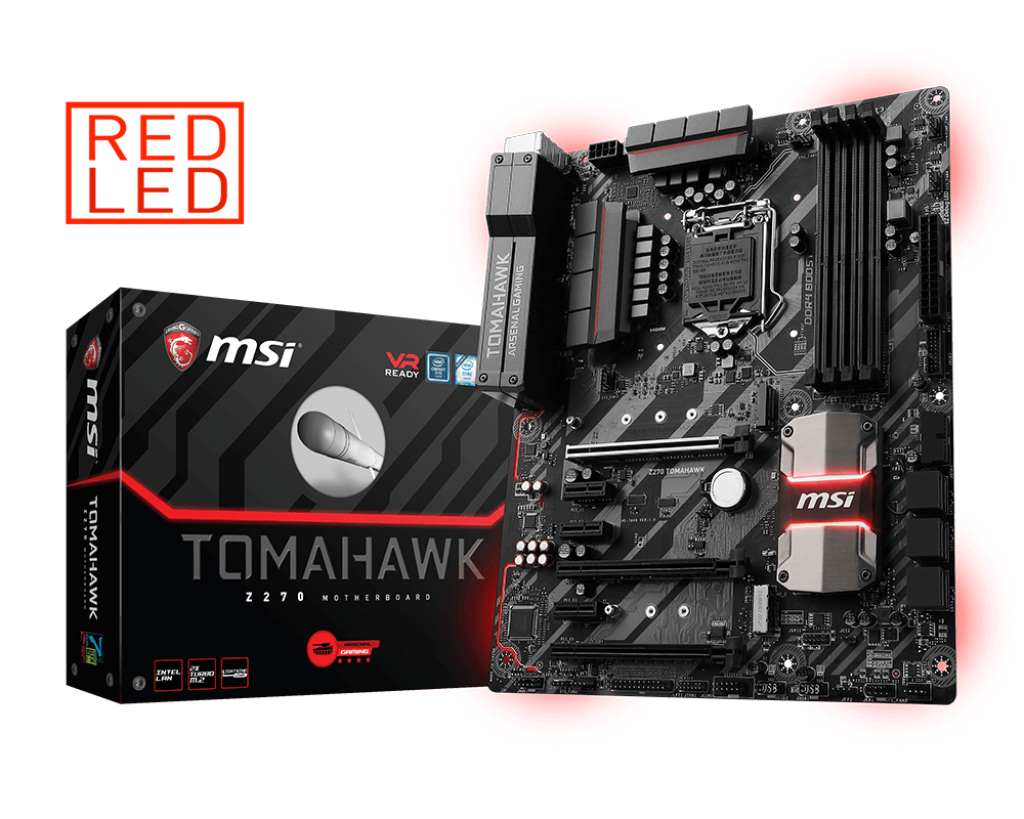

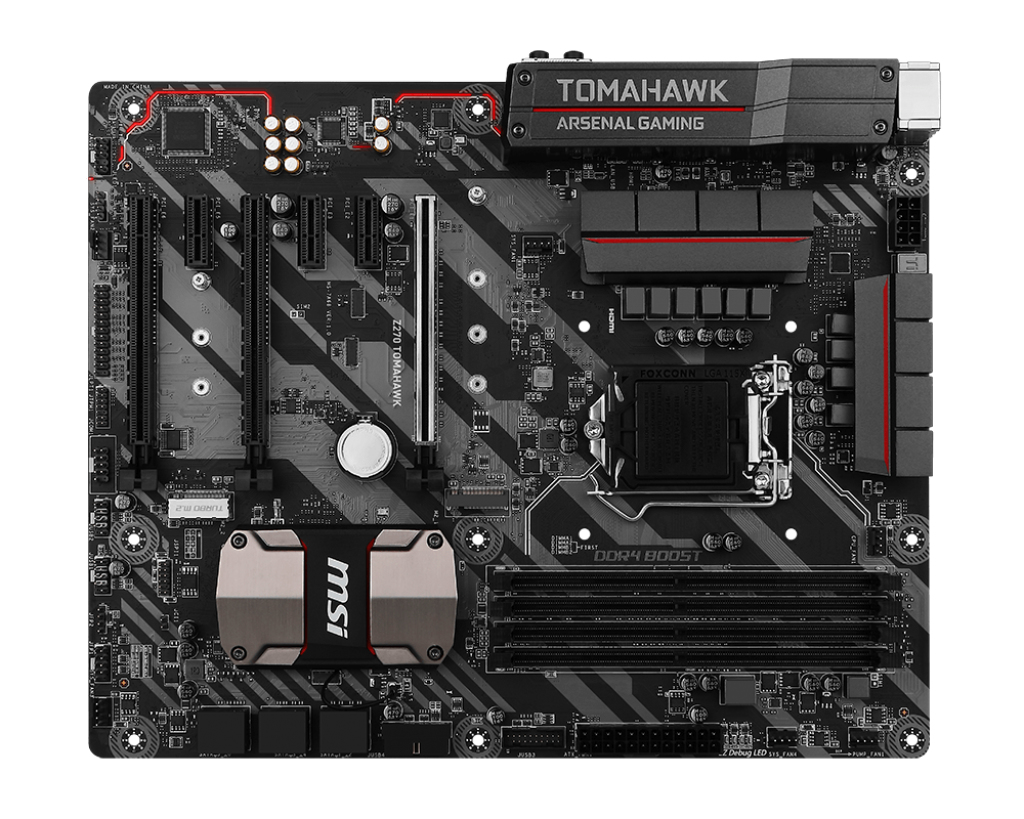

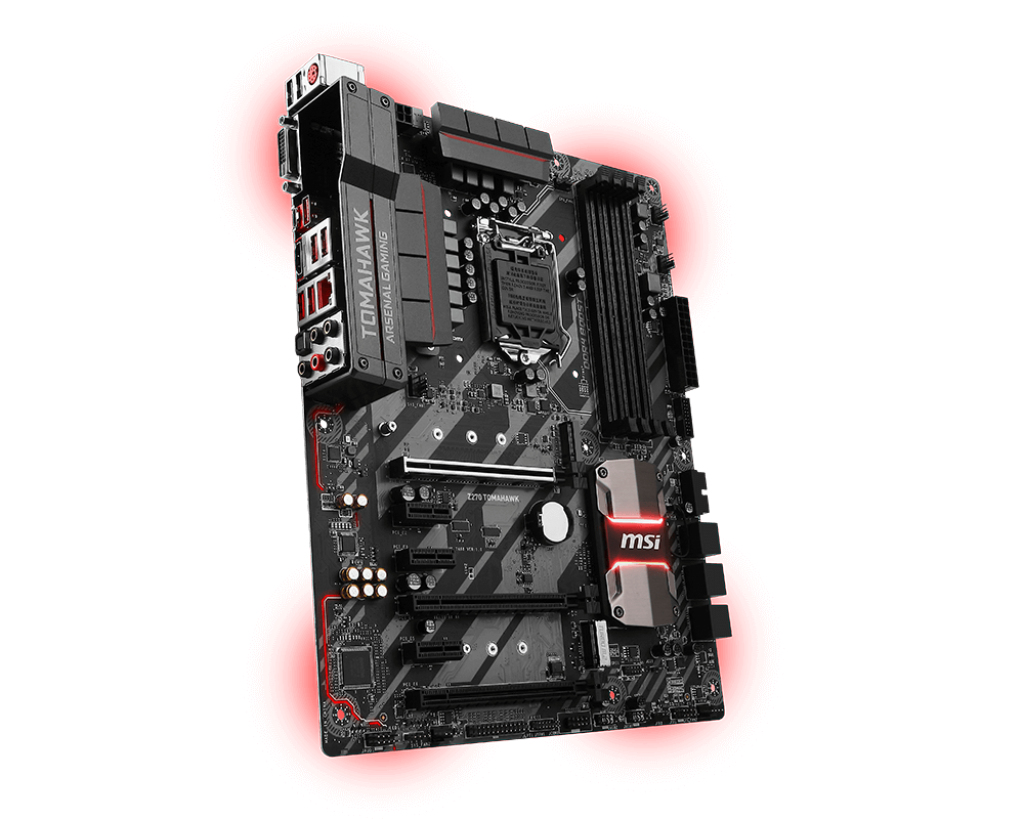

MSI Z270 TOMAHAWK

MSI Z270 TOMAHAWK

Model Z270 TOMAHAWKPart no. 7A68-002REAN 824142140147

64 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
  • Supported storage drive typesHDD & SSD
  • Parallel processing technology support2-Way CrossFireX
  • USB 2.0 connectors2
  • USB 2.0 ports quantity6
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
Supported storage drive types
HDD & SSD
Parallel processing technology support
2-Way CrossFireX
USB 2.0 connectors
2
USB 2.0 ports quantity
6
Brand
MSI
Category
Motherboard
Model
Z270 TOMAHAWK
Part numbers
7A68-002R, 911-7A68-014
EAN / UPC
824142140147, 4058154162859, 4719072496227
Also known as
MSI Z270 TOMAHAWK Intel® Z270 LGA 1151 (Socket H4) ATX

Specifications

64 specifications in 12 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1151 (Socket H4)
Compatible processor seriesIntel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
Supported memory clock speeds2133,2400,2600,2800,3000,3200,3600,3800 MHz
Maximum internal memory64 GB

Storage controllers

Supported storage drive typesHDD & SSD
RAID levels0, 1, 5, 10

Graphics

Parallel processing technology support2-Way CrossFireX
Maximum resolution4096 x 2160 pixels

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
Number of SATA III connectors6
Number of SATA II connectors0
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors4
Chassis intrusion connectorYes
Peripheral (Molex) power connectors (4-pin)1
EPS power connector (8-pin)Yes
TPM connectorYes

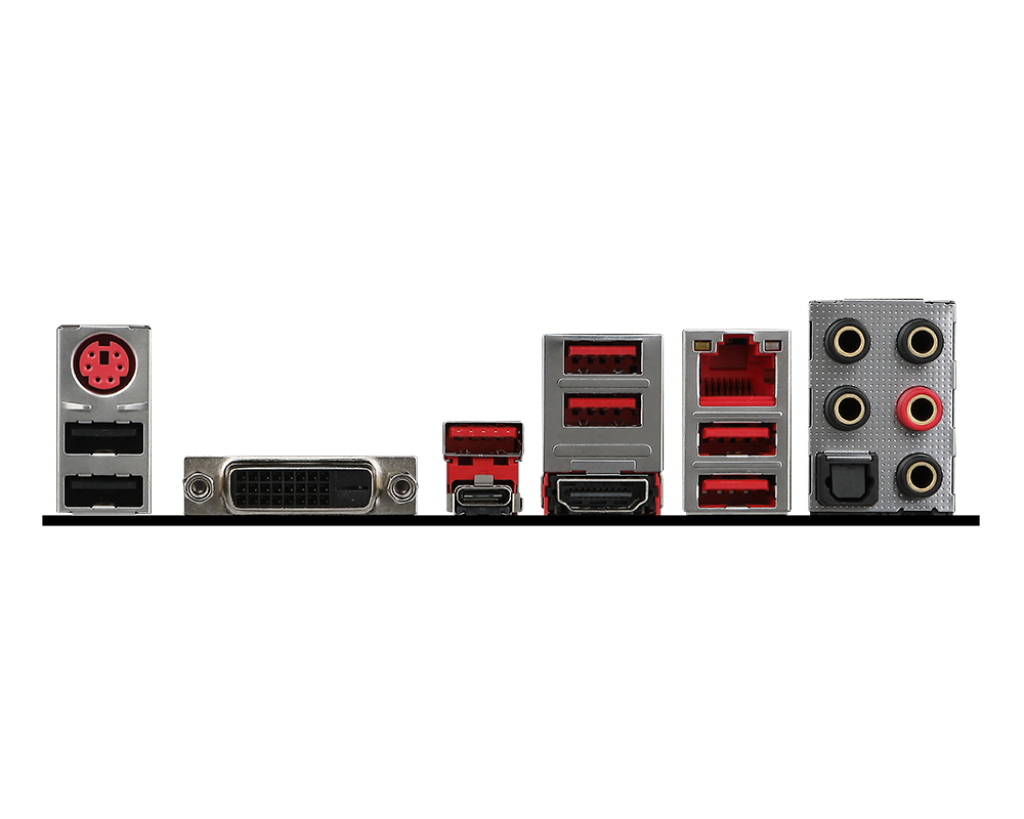

Rear panel I/O ports

USB 2.0 ports quantity6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity8
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity1
DVI-D ports quantity1
Headphone outputs1
Microphone inYes
S/PDIF out portYes
Parallel ports quantity1
Serial ports quantity1

Network

Ethernet LANYes
LAN controllerIntel® I219-V

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® Z270
Audio output channels7.1 channels
Power source typeATX

Expansion slots

PCI Express x1 slots3
PCI Express x16 slots3
Number of M.2 (M) slots2

BIOS

Clear CMOS jumperYes

Processor special features

Intel Extreme Memory Profile (XMP)Yes
Intel® Smart Response TechnologyYes
Trusted Platform Module (TPM)Yes
Intel® Optane™ Memory ReadyYes

Weight & dimensions

Width304 mm
Depth243 mm
