MSI Z270 GAMING M6 AC

MSI Z270 GAMING M6 AC

Model Z270 GAMING M6 ACEAN 824142143445

72 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
  • RAID levels0, 1, 5, 10
  • Parallel processing technology support2-Way SLI, 3-Way CrossFireX
  • USB 2.0 connectors2
  • USB 2.0 ports quantity3
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
RAID levels
0, 1, 5, 10
Parallel processing technology support
2-Way SLI, 3-Way CrossFireX
USB 2.0 connectors
2
USB 2.0 ports quantity
3
Brand
MSI
Category
Motherboard
Model
Z270 GAMING M6 AC
Part numbers
Z270 GAMING M6 AC, 7A78-008R
EAN / UPC
824142143445, 4719072511531
Also known as
MSI Z270 GAMING M6 AC motherboard Intel® Z270 LGA 1151 (Socket H4) ATX

Specifications

72 specifications in 13 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1151 (Socket H4)
Compatible processor seriesIntel® Celeron®, Intel® Pentium®
Intel Core i3/i5/i7/i9 seriesi3-6xxx, i3-7xxx, i5-6xxx, i5-7xxx, i7-6xxx, i7-7xxx

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds2133,2400,2600,2800,3000,3200,3600,3800 MHz
Maximum internal memory64 GB
Unbuffered memoryYes

Storage controllers

RAID levels0, 1, 5, 10

Graphics

Parallel processing technology support2-Way SLI, 3-Way CrossFireX
Maximum resolution4096 x 2160 pixels

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
Number of SATA III connectors6
Number of SATA II connectors0
Number of Parallel ATA connectors0
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Chassis intrusion connectorYes
12V power connectorYes
Serial port headers1

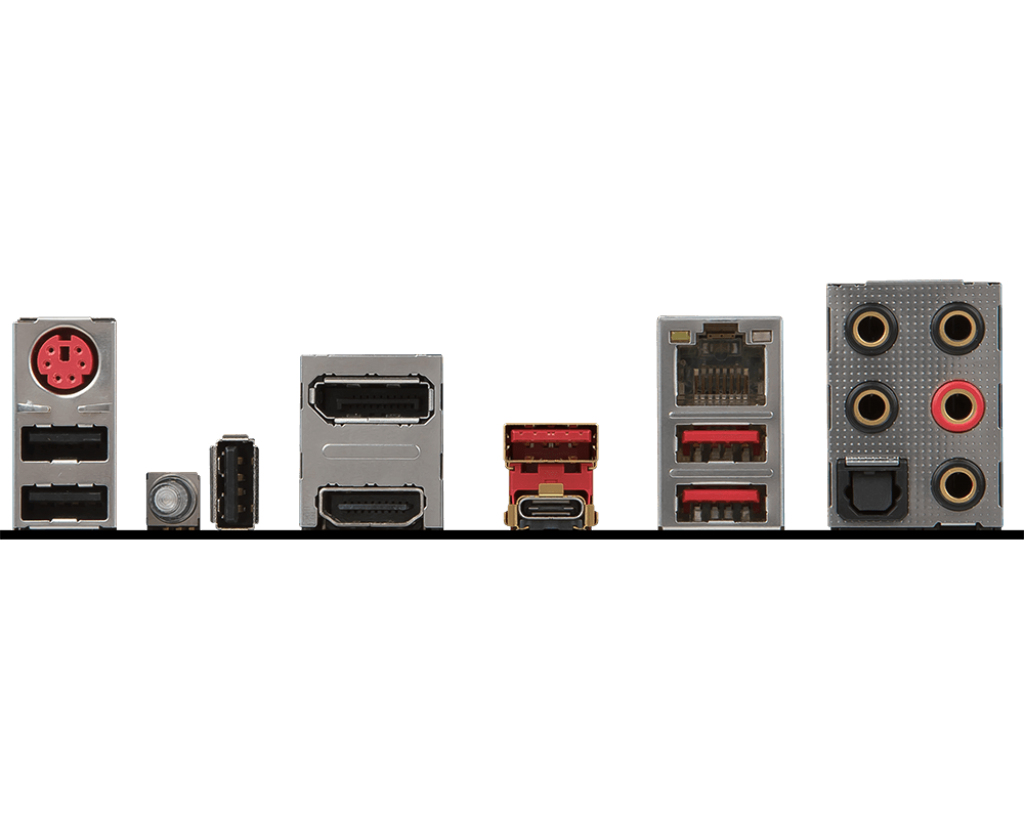

Rear panel I/O ports

USB 2.0 ports quantity3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity1
DVI-D ports quantity0
DisplayPorts quantity1
Headphone outputs1
Microphone inYes
S/PDIF out portYes

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerKiller E2500
Wi-FiYes
Wi-Fi standardsWi-Fi 5 (802.11ac)
BluetoothYes
Bluetooth version4.2

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® Z270
Audio chipRealtek ALC1220
Audio output channels7.1 channels
Power source typeATX
Number of mounting holes9

Expansion slots

PCI Express x1 (Gen 3.x) slots3
PCI Express x16 (Gen 3.x) slots3
Number of M.2 (M) slots2

BIOS

BIOS typeUEFI AMI
BIOS memory size16 Mbit
ACPI version5.0
Clear CMOS jumperYes
Clear CMOS buttonYes

Processor special features

Intel Extreme Memory Profile (XMP)Yes
Trusted Platform Module (TPM)Yes

Weight & dimensions

Width305 mm
Depth244 mm

Other features

Bluetooth Low Energy (BLE)Yes
