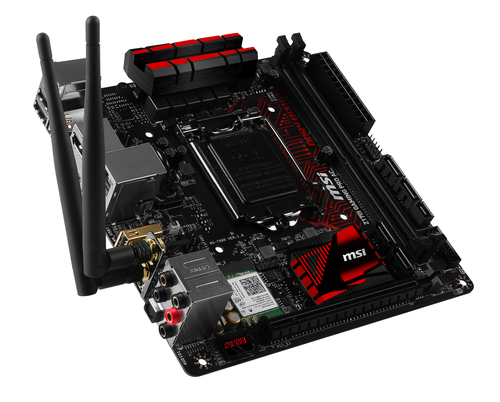

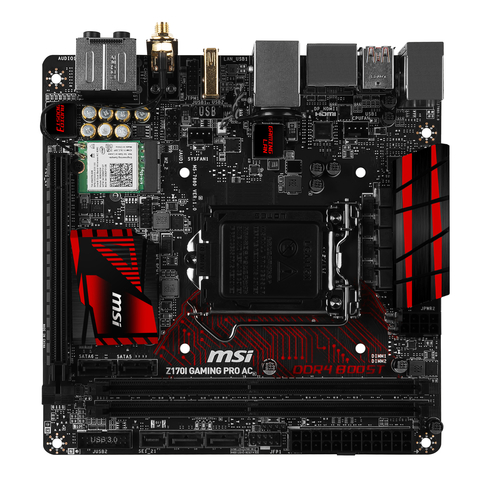

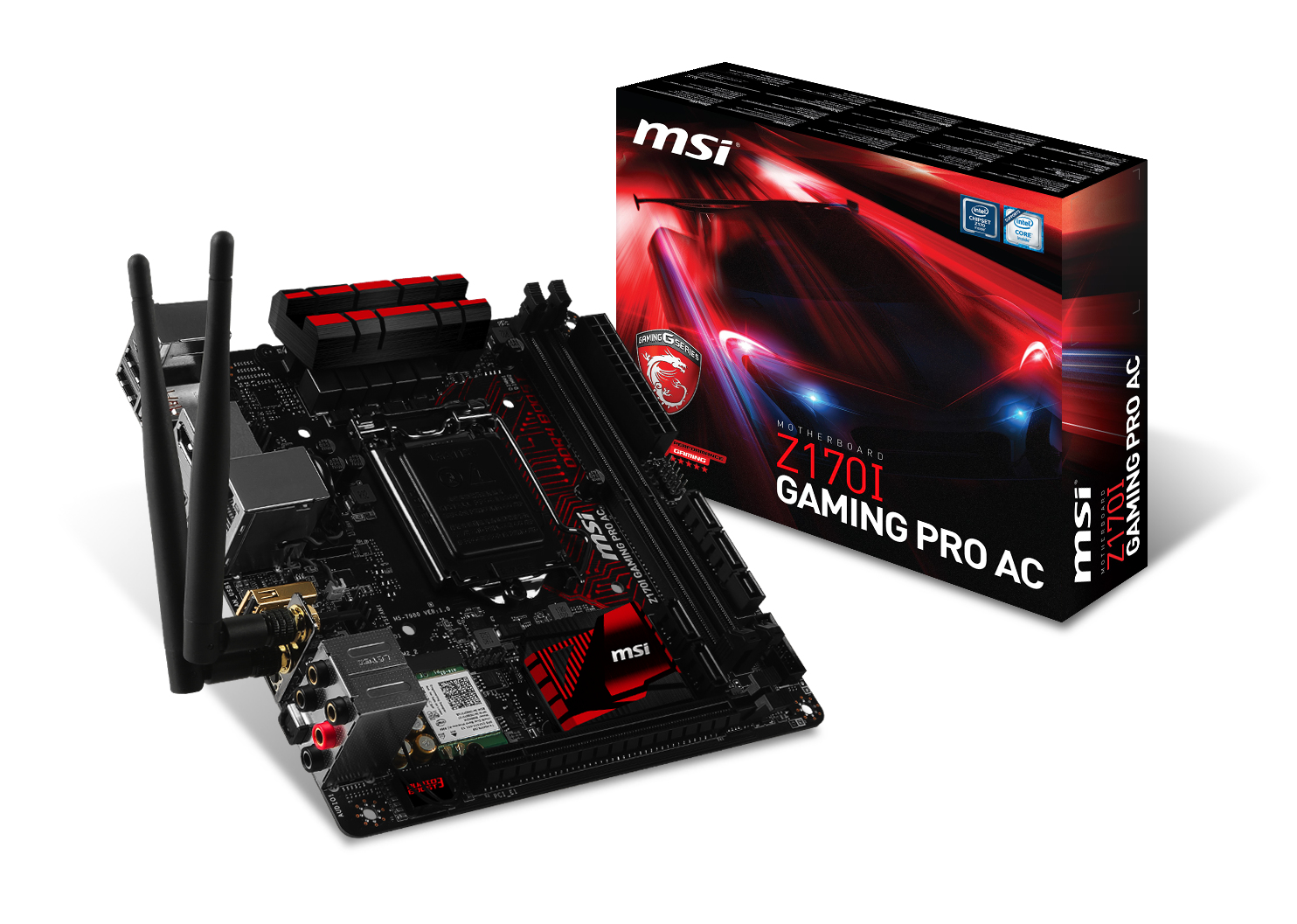

MSI Z170I GAMING PRO AC

MSI Z170I GAMING PRO AC

Model Z170I GAMING PRO ACPart no. Z170I GAMING PRO AC-TNEAN 5054629904374

62 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
  • Supported storage drive interfacesM.2, SATA III
  • USB 2.0 connectors1
  • USB 2.0 ports quantity3
  • Ethernet LANYes
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
Supported storage drive interfaces
M.2, SATA III
USB 2.0 connectors
1
USB 2.0 ports quantity
3
Ethernet LAN
Yes
Brand
MSI
Category
Motherboard
Model
Z170I GAMING PRO AC
Part numbers
Z170I GAMING PRO AC-TN, 7980-001R
EAN / UPC
5054629904374, 824142121238, 3609920154496, 4053162960176 +2 more
Also known as
MSI Z170I GAMING PRO AC Intel® Z170 LGA 1151 (Socket H4) mini ITX

Specifications

62 specifications in 10 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1151 (Socket H4)
Compatible processor seriesIntel® Celeron®, Intel® Pentium®

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots2
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds2133,2400,2600,2800,3000,3200,3600,3866,4000 MHz
Maximum internal memory32 GB
Unbuffered memoryYes

Storage controllers

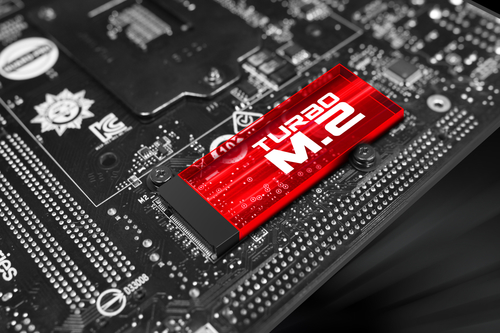

Supported storage drive interfacesM.2, SATA III
RAID levels0, 1, 5, 10

Internal I/O

USB 2.0 connectors1
USB 3.2 Gen 1 (3.1 Gen 1) connectors0
Number of SATA III connectors4
Number of SATA II connectors0
Number of SATA connectors4
Number of Parallel ATA connectors0
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Power fan connectorYes
CPU fan connectorYes
Chassis intrusion connectorYes
EPS power connector (8-pin)Yes
TPM connectorYes

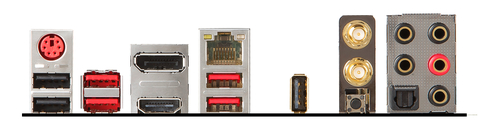

Rear panel I/O ports

USB 2.0 ports quantity3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity4
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity1
DVI-D ports quantity0
DisplayPorts quantity1
Headphone outputs1
Microphone inYes
S/PDIF out portYes
WiFi-AP antenna jack2

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerIntel® I219-V
Wi-FiYes
Wi-Fi standards802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
BluetoothYes
Bluetooth version4.2

Features

Component forPC
Motherboard form factormini ITX
Motherboard chipset familyIntel
Motherboard chipsetIntel® Z170
Audio output channels7.1 channels
Power source typeATX
Linux operating systems supportedYes
Windows operating systems supportedYes

Expansion slots

PCI Express x16 (Gen 3.x) slots1

BIOS

BIOS typeAWARD
Clear CMOS jumperYes
Clear CMOS buttonYes

Weight & dimensions

Width170 mm
Depth170 mm
