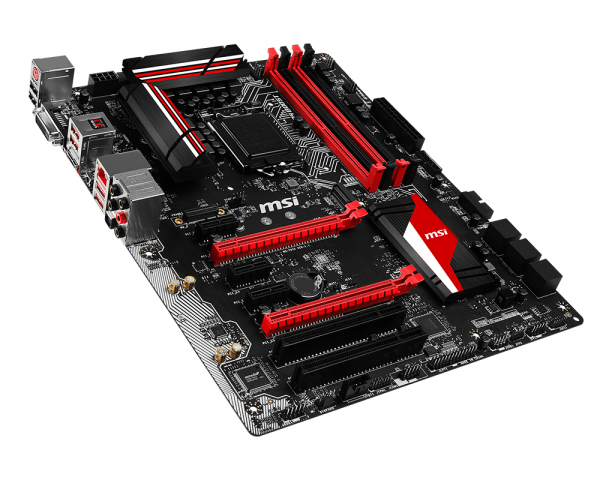

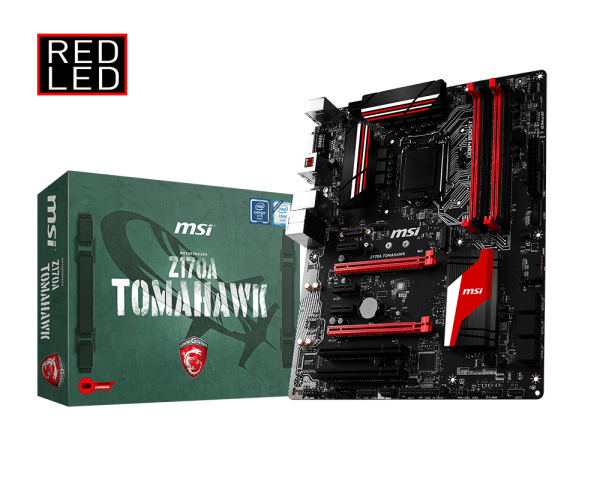

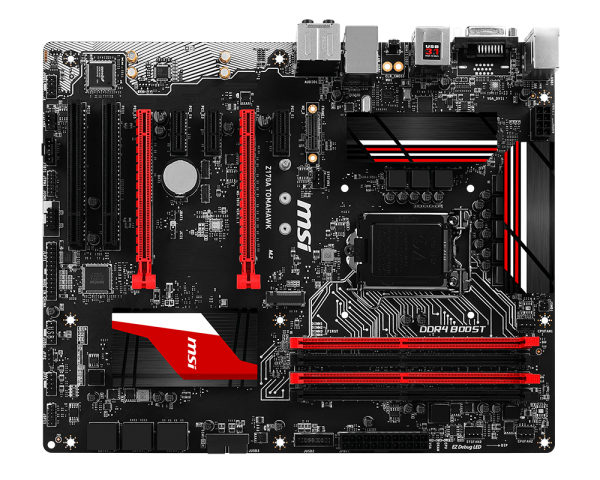

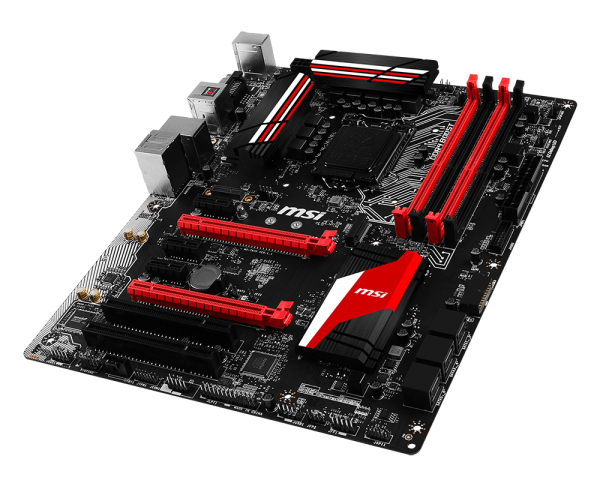

MSI Z170A TOMAHAWK

MSI Z170A TOMAHAWK

Model Z170A TOMAHAWKPart no. 7970-001REAN 824142122150

58 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
  • Supported storage drive interfacesM.2, SATA
  • USB 2.0 connectors1
  • USB 2.0 ports quantity2
  • Ethernet LANYes
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
Supported storage drive interfaces
M.2, SATA
USB 2.0 connectors
1
USB 2.0 ports quantity
2
Ethernet LAN
Yes
Brand
MSI
Category
Motherboard
Model
Z170A TOMAHAWK
Part number
7970-001R
EAN / UPC
824142122150, 4058154049198, 4719072425647, 8809481920591
Also known as
MSI Z170A TOMAHAWK Intel® Z170 LGA 1151 (Socket H4) ATX

Specifications

58 specifications in 11 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1151 (Socket H4)
Compatible processor seriesIntel® Celeron®, Intel® Pentium®
Maximum number of SMP processors1

Memory

Supported memory typesDDR4-SDRAM
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityECC & Non-ECC
Supported memory clock speeds2133,2400,2600,2800,3000,3200,3600 MHz
Maximum internal memory64 GB

Storage controllers

Supported storage drive interfacesM.2, SATA
RAID levels0, 1, 5, 10

Internal I/O

USB 2.0 connectors1
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
Number of SATA III connectors0
Number of SATA II connectors0
Number of SATA connectors6
Number of Parallel ATA connectors1
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors3
Serial port headers1
TPM connectorYes

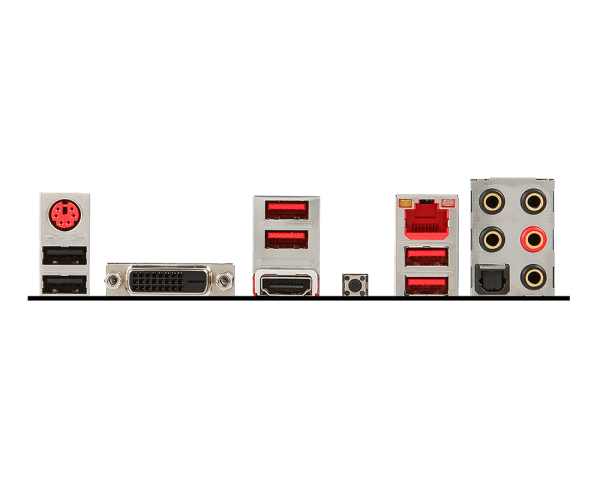

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity1
DVI-D ports quantity1
Headphone outputs1
Microphone inYes

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111H

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® Z170
Audio output channels7.1 channels
Power source typeATX

Expansion slots

PCI Express x1 (Gen 3.x) slots3
PCI Express x16 (Gen 3.x) slots2
PCI slots2
Number of M.2 (M) slots1

BIOS

BIOS typeUEFI
Clear CMOS jumperYes
Clear CMOS buttonYes

Processor special features

Intel Rapid Storage TechnologyYes
Intel® High Definition Audio (Intel® HD Audio)Yes
Intel® Smart Response TechnologyYes
Intel® Virtualization Technology (Intel® VT)VT-d

Weight & dimensions

Width304 mm
Depth224 mm
