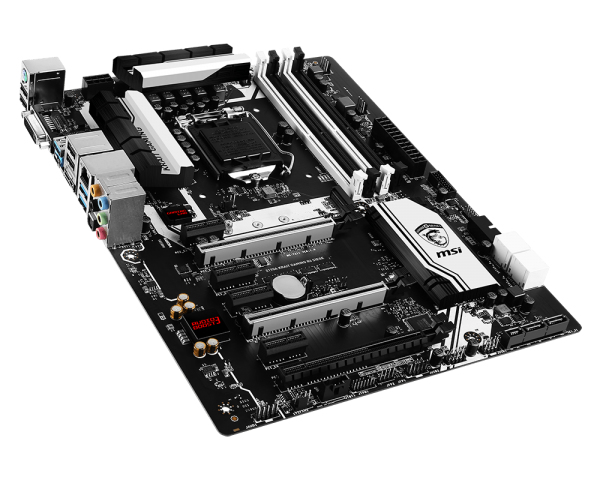

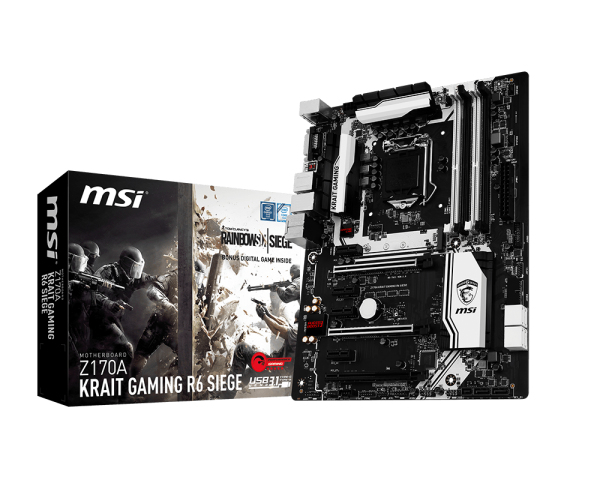

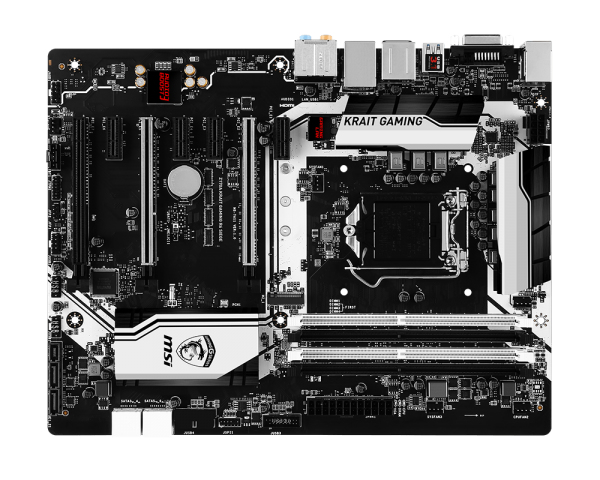

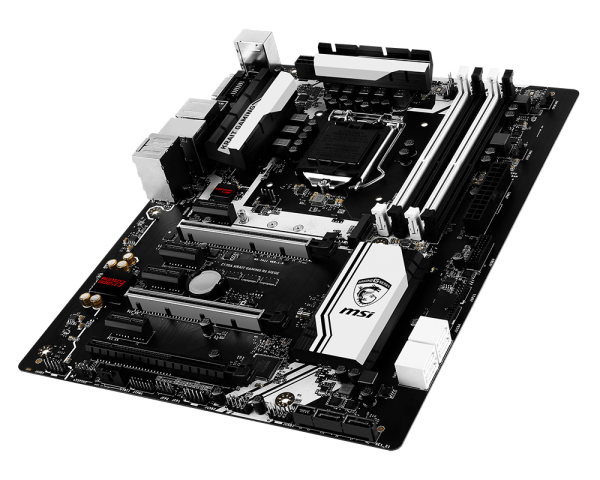

MSI Z170A KRAIT GAMING R6 SIEGE
Model Z170A KRAIT GAMING R6 SIEGEPart no. 7A11-003REAN 824142125403
75 specifications
- Processor manufacturerIntel
- Supported memory typesDDR4-SDRAM
- Supported storage drive interfacesM.2, SATA III
- Parallel processing technology support2-Way SLI, 3-Way CrossFireX
- USB 2.0 connectors2
- USB 2.0 ports quantity4
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR4-SDRAM
- Supported storage drive interfaces
- M.2, SATA III
- Parallel processing technology support
- 2-Way SLI, 3-Way CrossFireX
- USB 2.0 connectors
- 2
- USB 2.0 ports quantity
- 4
- Brand
- MSI
- Category
- Motherboard
- Model
- Z170A KRAIT GAMING R6 SIEGE
- Part number
- 7A11-003R
- EAN / UPC
- 824142125403, 4719072442408
- Also known as
- MSI Z170A KRAIT GAMING R6 SIEGE Intel® Z170 LGA 1151 (Socket H4) ATX
Specifications
75 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1151 (Socket H4) |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 2133,2400,2600,2800,3000,3200,3600 MHz |
| Maximum internal memory | 64 GB |
| Unbuffered memory | Yes |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | M.2, SATA III |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | 2-Way SLI, 3-Way CrossFireX |
| Maximum resolution | 4096 x 2160 pixels |
| DirectX version | 12.0 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 6 |
| Number of SATA II connectors | 0 |
| Number of SATA Express connectors | 1 |
| Number of Parallel ATA connectors | 0 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| TPM connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 0 |
| S/PDIF out port | Yes |
| COM ports quantity | 0 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel® I219-V |
| Wi-Fi | No |
| Bluetooth | No |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® Z170 |
| Audio chip | Realtek ALC1150 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 (Gen 3.x) slots | 4 |
| PCI Express x16 (Gen 3.x) slots | 3 |
| Number of M.2 (M) slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI |
| Clear CMOS jumper | Yes |
Processor special features
| Specification | Value |
|---|---|
| Conflict-Free | Yes |
| Intel Extreme Memory Profile (XMP) | Yes |
| Intel ME Firmware Version | 11 |
| Intel Rapid Storage Technology | Yes |
| Intel Rapid Storage Technology enterprise | No |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel Trusted Execution Technology | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® High Definition Audio (Intel® HD Audio) | Yes |
| Intel® Small Business Advantage (Intel® SBA) | No |
| Intel® Smart Response Technology | Yes |
| Intel® Virtualization Technology (Intel® VT) | VT-d |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 235 mm |
Other features
| Specification | Value |
|---|---|
| Mini DisplayPorts quantity | 0 |
| Intel® vPro™ Platform Eligibility | No |
What people say
Reviews & ratings
MSI Z170A KRAIT GAMING R6 SIEGE
No reviews yet
Be the first to tell others how MSI Z170A KRAIT GAMING R6 SIEGE works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare MSI Z170A KRAIT GAMING R6 SIEGE
All motherboard comparisons- MSI Z170A KRAIT GAMING R6 SIEGE vsMSI Z170A GAMING PRO CARBONCompare specs
- MSI Z170A KRAIT GAMING R6 SIEGE vsMSI C236A WORKSTATIONCompare specs
- MSI Z170A KRAIT GAMING R6 SIEGE vsMSI H110M ECOCompare specs
- MSI Z170A KRAIT GAMING R6 SIEGE vsMSI H110M PRO-DCompare specs

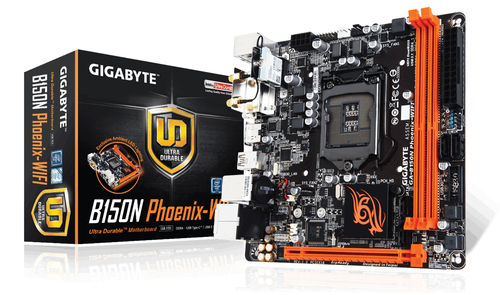

- MSI Z170A KRAIT GAMING R6 SIEGE vsGIGABYTE GA-B150N Phoenix-WIFICompare specs

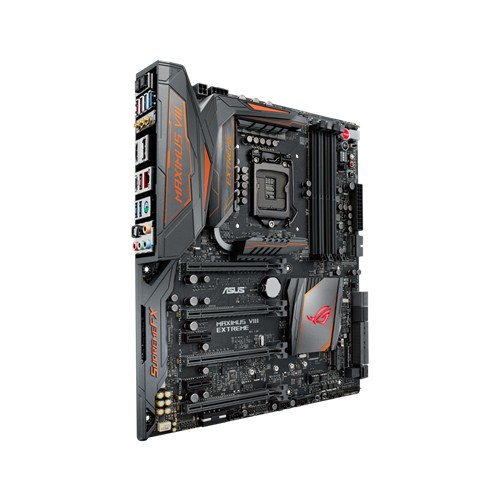

- MSI Z170A KRAIT GAMING R6 SIEGE vsASUS ROG MAXIMUS VIII EXTREME/ASSEMBLYCompare specs

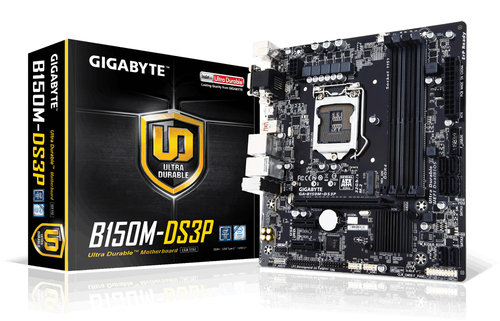

- MSI Z170A KRAIT GAMING R6 SIEGE vsGIGABYTE GA-B150M-DS3P motherboard Intel® B150 LGA 1151 (Socket H4) ATXCompare specs

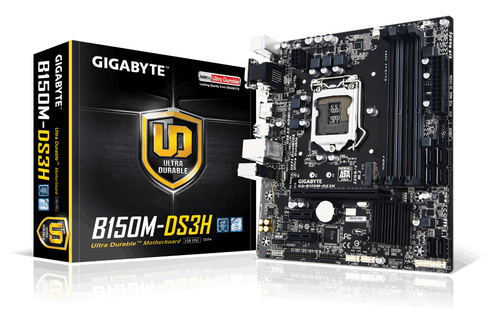

- MSI Z170A KRAIT GAMING R6 SIEGE vsGIGABYTE GA-B150M-DS3H motherboard Intel® B150 LGA 1151 (Socket H4) micro ATXCompare specs
