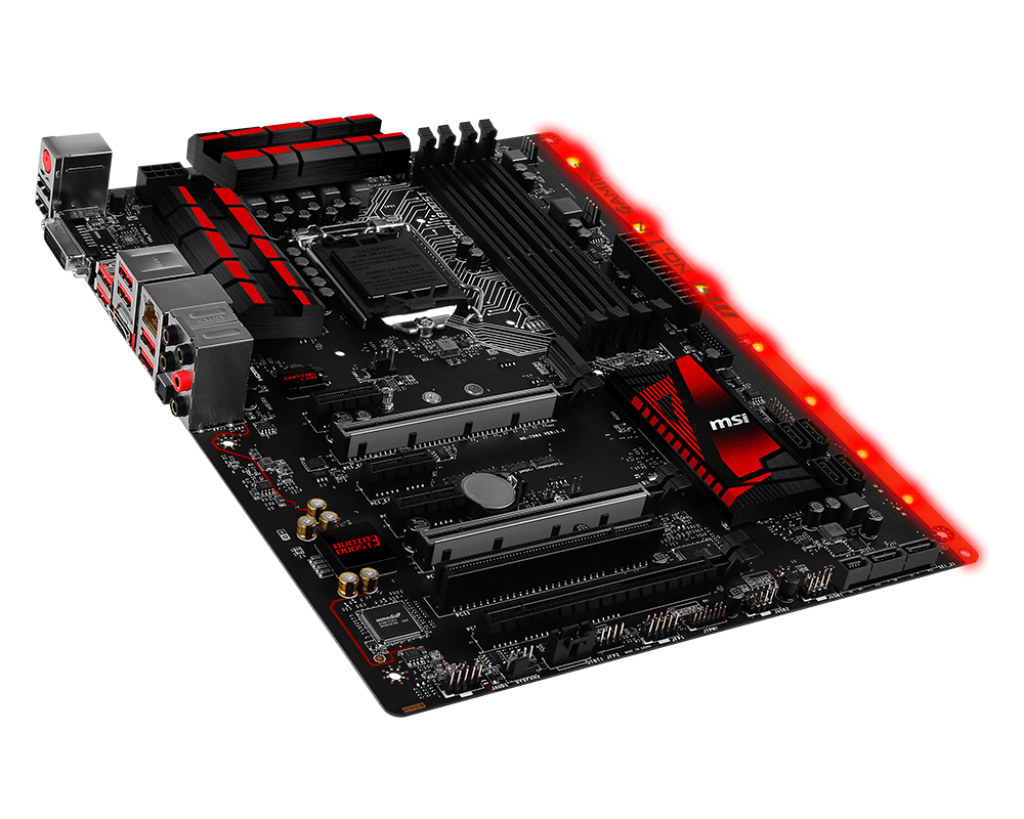

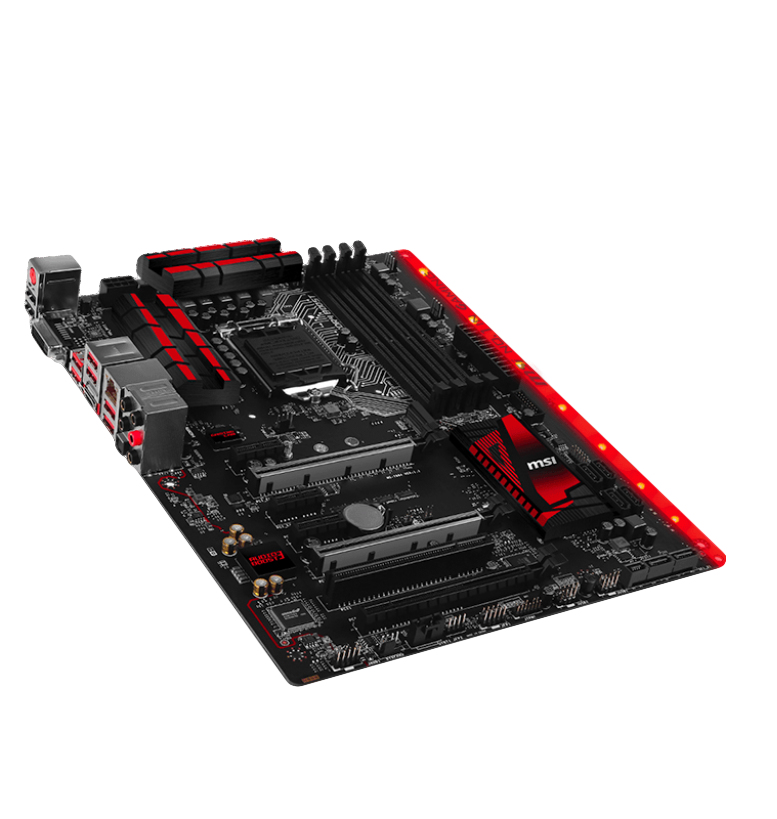

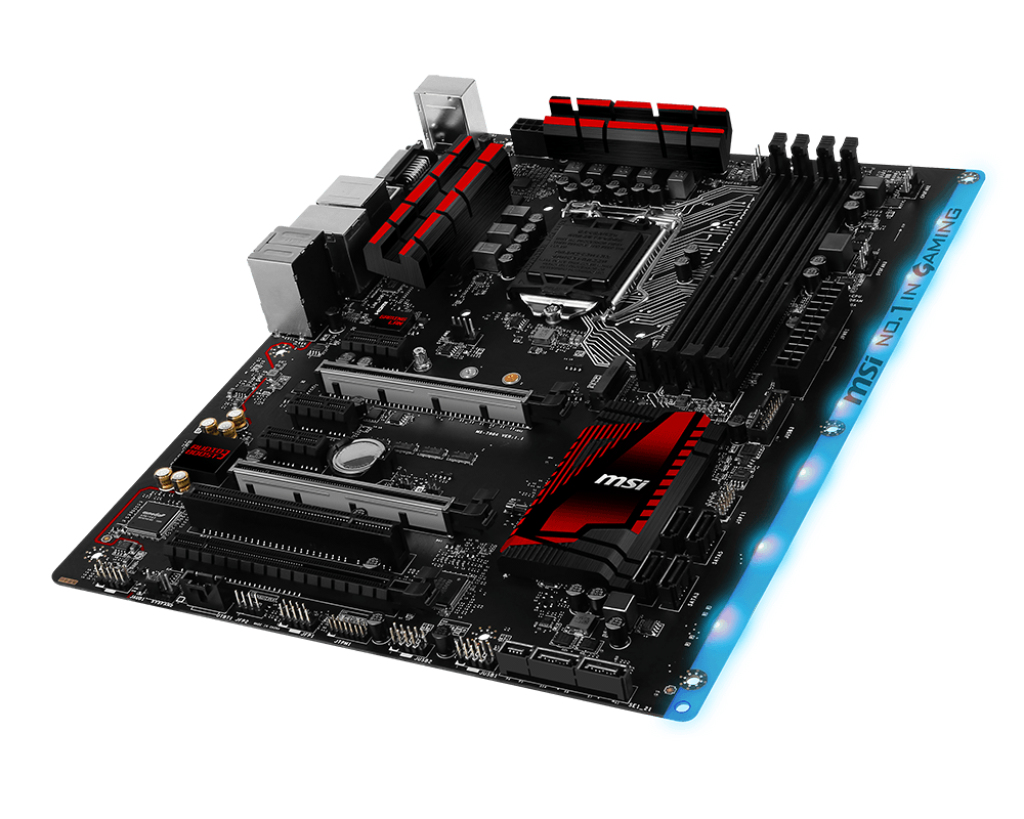

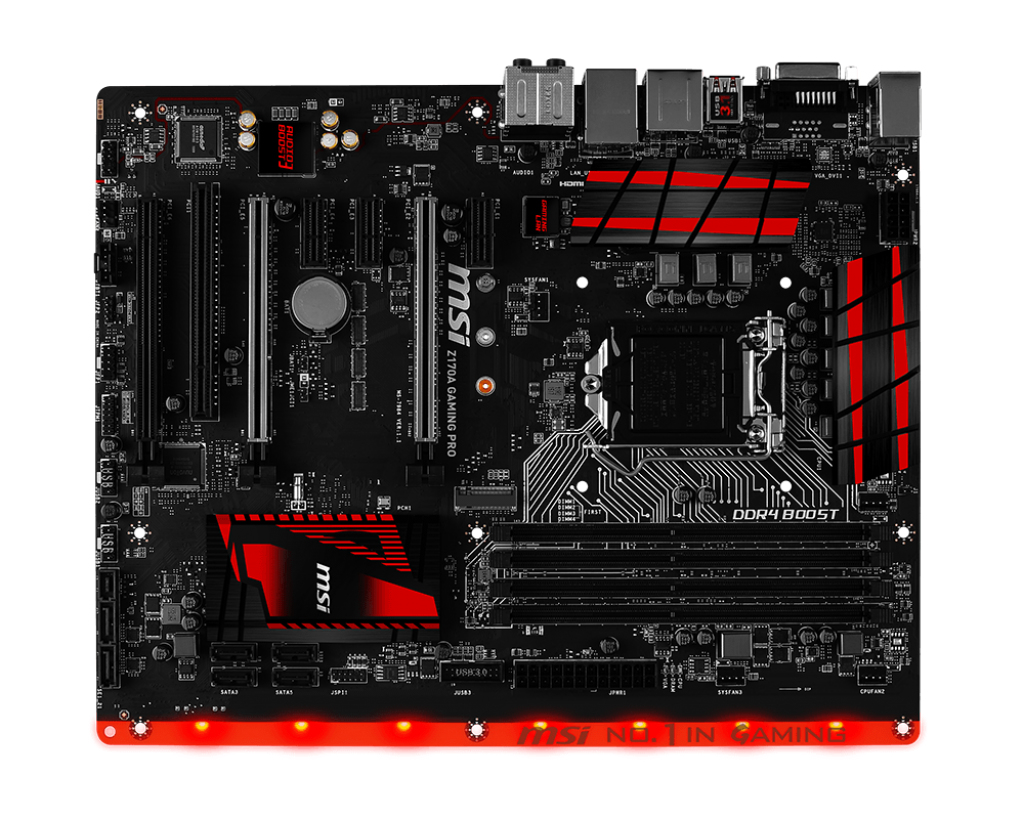

MSI Z170A Gaming Pro

MSI Z170A Gaming Pro

Model Z170A Gaming ProPart no. 7984-001REAN 824142119945

62 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
  • Supported storage drive interfacesSATA III
  • Parallel processing technology support2-Way SLI, 3-Way CrossFireX
  • USB 2.0 connectors2
  • Ethernet LANYes
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
Supported storage drive interfaces
SATA III
Parallel processing technology support
2-Way SLI, 3-Way CrossFireX
USB 2.0 connectors
2
Ethernet LAN
Yes
Brand
MSI
Category
Motherboard
Model
Z170A Gaming Pro
Part number
7984-001R
EAN / UPC
824142119945, 4053162931183, 4719072412951, 8809321843677
Also known as
MSI Z170A Gaming Pro Intel® Z170 LGA 1151 (Socket H4) ATX

Specifications

62 specifications in 12 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1151 (Socket H4)
Compatible processor seriesIntel® Celeron®, Intel® Pentium®
Supported processor socketsLGA 1151 (Socket H4)

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityECC
Supported memory clock speeds2133,2400,2600,2800,3000,3200 MHz
Maximum internal memory64 GB
Unbuffered memoryYes

Storage controllers

Supported storage drive interfacesSATA III
RAID levels1, 5, 10

Graphics

Parallel processing technology support2-Way SLI, 3-Way CrossFireX
Maximum resolution4096 x 2160 pixels

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors6
USB 3.2 Gen 2 (3.1 Gen 2) connectors2
Number of SATA III connectors6
Number of SATA II connectors0
Number of SATA Express connectors1
Number of Parallel ATA connectors0
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors3
Chassis intrusion connectorYes
EPS power connector (8-pin)Yes
TPM connectorYes

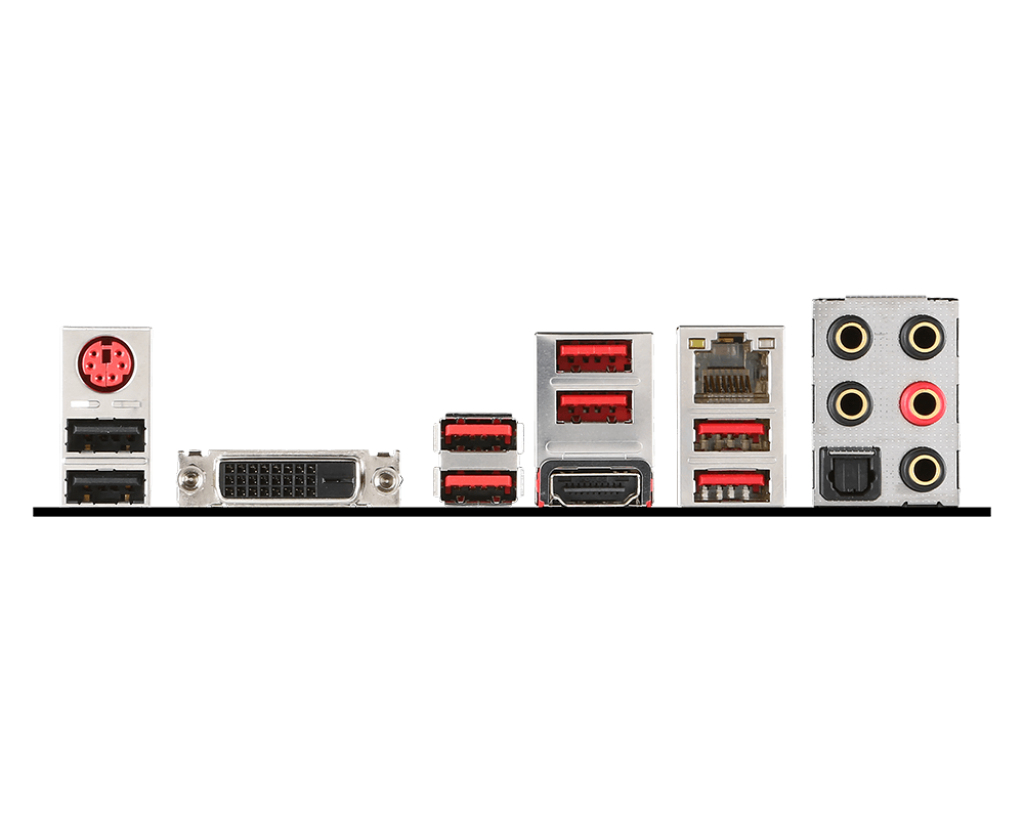

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity6
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity1
DVI-D ports quantity1
Headphone outputs1
Microphone inYes
S/PDIF out portYes

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerIntel® I219-V

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® Z170
Audio output channels7.1 channels
Cooling typePassive
Power source typeATX

Expansion slots

PCI Express x1 (Gen 3.x) slots3
PCI Express x16 (Gen 3.x) slots3
PCI slots1
Number of M.2 (M) slots1

BIOS

BIOS typeUEFI
Clear CMOS jumperYes

Processor special features

Intel Extreme Memory Profile (XMP)Yes

Weight & dimensions

Width305 mm
Depth244 mm
