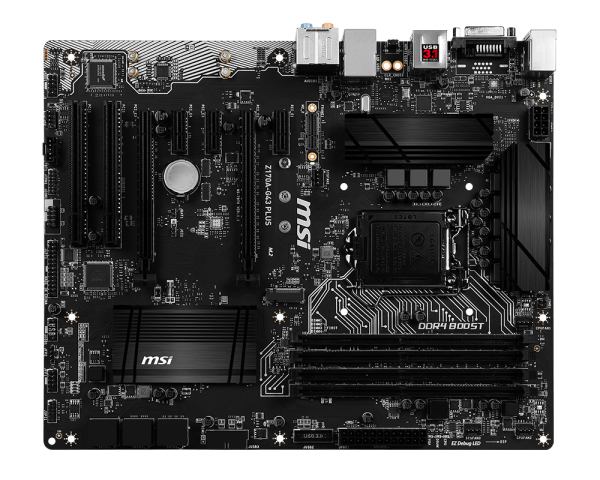

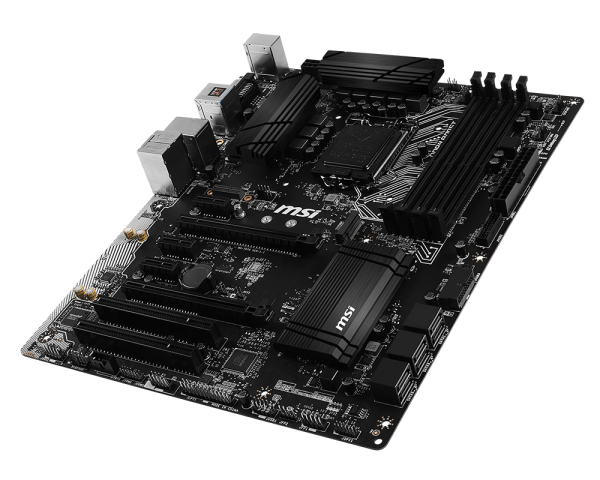

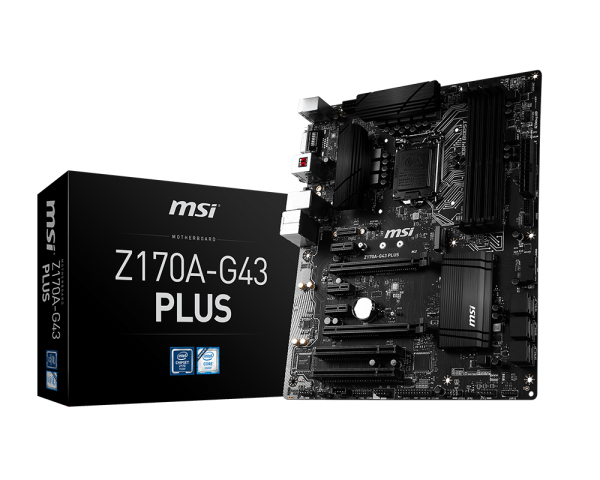

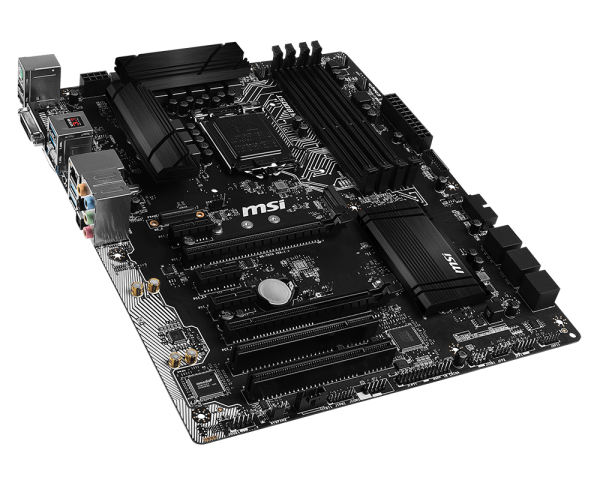

MSI Z170A-G43 PLUS

MSI Z170A-G43 PLUS

Model Z170A-G43 PLUSEAN 4719072425661

54 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
  • Supported storage drive interfacesM.2, SATA
  • USB 2.0 connectors1
  • USB 2.0 ports quantity2
  • Ethernet LANYes
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
Supported storage drive interfaces
M.2, SATA
USB 2.0 connectors
1
USB 2.0 ports quantity
2
Ethernet LAN
Yes
Brand
MSI
Category
Motherboard
Model
Z170A-G43 PLUS
Part numbers
Z170A-G43 PLUS, 7970-002R
EAN / UPC
4719072425661, 8809481920577
Also known as
MSI Z170A-G43 PLUS motherboard Intel® Z170 LGA 1151 (Socket H4) ATX

Specifications

54 specifications in 12 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1151 (Socket H4)
Compatible processor seriesIntel® Celeron®, Intel® Pentium®

Memory

Supported memory typesDDR4-SDRAM
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityECC & Non-ECC
Supported memory clock speeds2133,2400,2600,2800,3000,3200,3600 MHz
Maximum internal memory64 GB

Storage controllers

Supported storage drive interfacesM.2, SATA
RAID levels0, 1, 5, 10

Internal I/O

USB 2.0 connectors1
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
Number of SATA III connectors0
Number of SATA II connectors0
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors3
Chassis intrusion connectorYes
Parallel connectorYes
Serial port headers1
TPM connectorYes

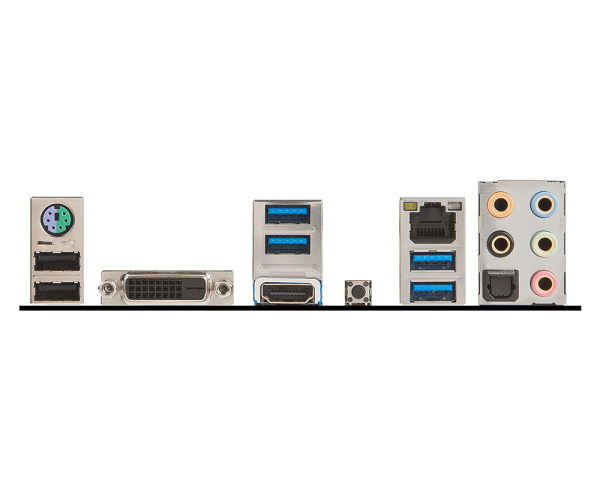

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
PS/2 ports quantity1
HDMI ports quantity1
DVI-D ports quantity1

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111H

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® Z170
Audio output channels7.1 channels
Power source typeATX

Expansion slots

PCI Express x1 (Gen 3.x) slots3
PCI Express x16 (Gen 3.x) slots2
PCI slots2

BIOS

BIOS typeUEFI
Clear CMOS jumperYes
Clear CMOS buttonYes

Processor special features

Intel Rapid Storage TechnologyYes
Intel® High Definition Audio (Intel® HD Audio)Yes
Intel® Smart Response TechnologyYes
Intel® Virtualization Technology (Intel® VT)VT-d

Weight & dimensions

Width304 mm
Depth224 mm

Other features

Number of SATA Express ports6
