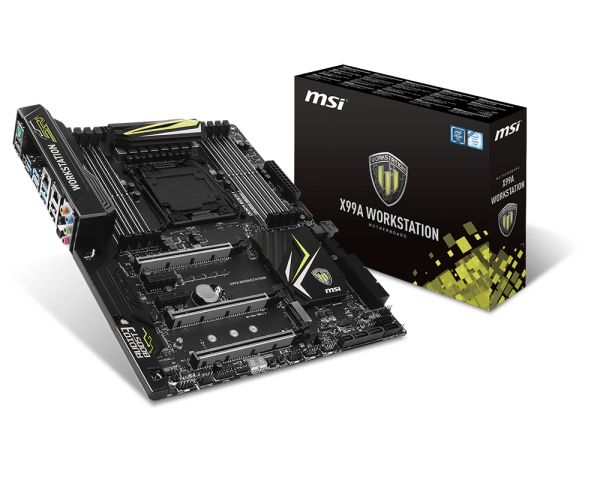

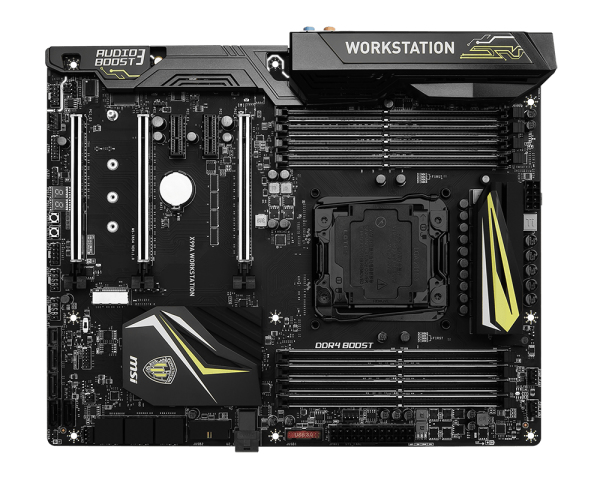

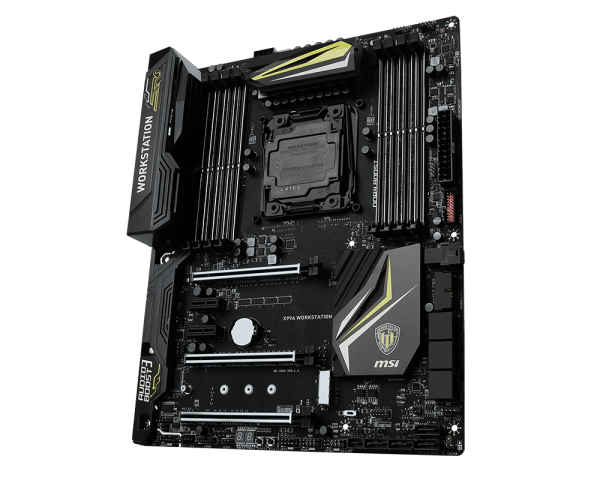

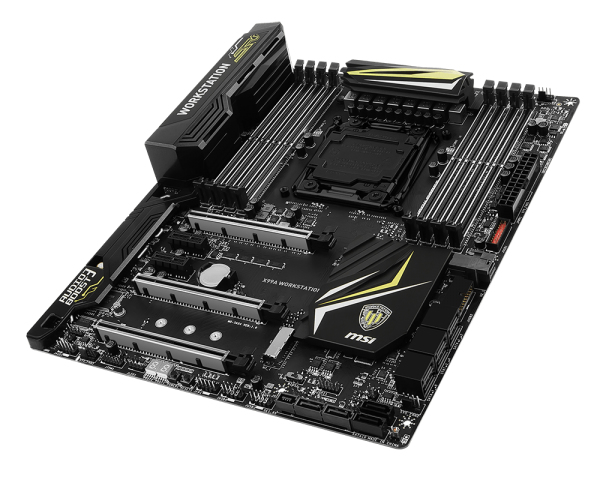

MSI X99A WORKSTATION

MSI X99A WORKSTATION

Model X99A WORKSTATIONPart no. 7A54-002REAN 824142135105

47 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
  • Supported storage drive interfacesM.2, SATA III
  • USB 2.0 connectors2
  • USB 2.0 ports quantity4
  • Ethernet LANYes
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
Supported storage drive interfaces
M.2, SATA III
USB 2.0 connectors
2
USB 2.0 ports quantity
4
Ethernet LAN
Yes
Brand
MSI
Category
Motherboard
Model
X99A WORKSTATION
Part numbers
7A54-002R, 911-7A54-002
EAN / UPC
824142135105, 4058154124062, 4719072479947
Also known as
MSI X99A WORKSTATION Intel® X99 LGA 2011-v3 ATX

Specifications

47 specifications in 11 groups

Processor

Processor manufacturerIntel
Processor socketLGA 2011-v3
Compatible processor seriesIntel® Core™ i7

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots8
Memory slots typeDIMM
Memory channelsQuad-channel
Supported memory clock speeds2133,2200,2400,2600,2666,2800,2933,3000,3200,3333 MHz
Unbuffered memoryYes

Storage controllers

Supported storage drive interfacesM.2, SATA III
RAID levels0, 1, 5, 10

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
Number of SATA III connectors10
Number of SATA Express connectors1
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Chassis intrusion connectorYes
TPM connectorYes

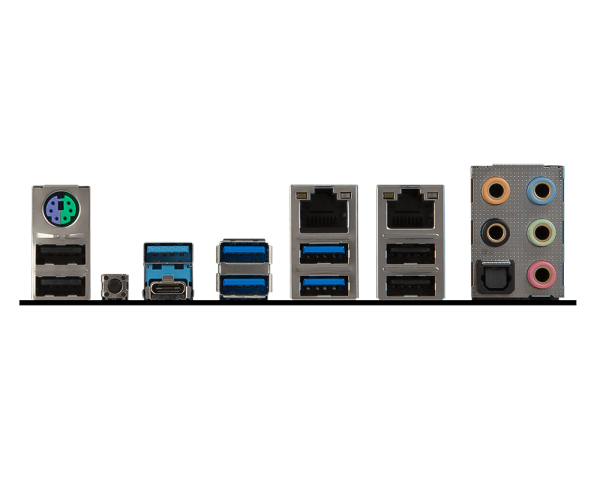

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
Ethernet LAN (RJ-45) ports2
PS/2 ports quantity1
VGA (D-Sub) ports quantity0
HDMI ports quantity0
DVI-D ports quantity0
S/PDIF out portYes

Network

Ethernet LANYes
LAN controllerIntel® I210-AT, Intel® I218-LM

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® X99
Audio chipRealtek ALC1150
Audio output channels7.1 channels
Power source typeATX

Expansion slots

Number of M.2 (M) slots1

BIOS

Clear CMOS jumperYes
Clear CMOS buttonYes

Processor special features

Intel® Turbo Boost Technology3.0

Weight & dimensions

Width305 mm
Depth244 mm
