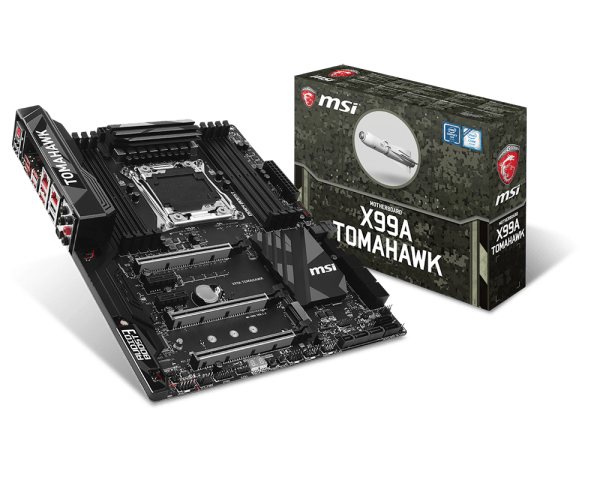

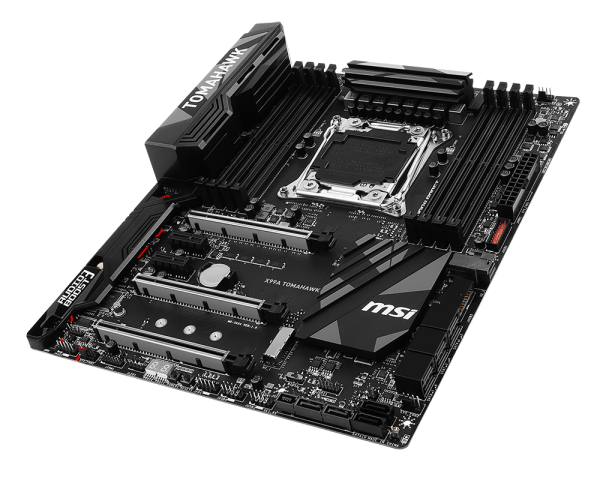

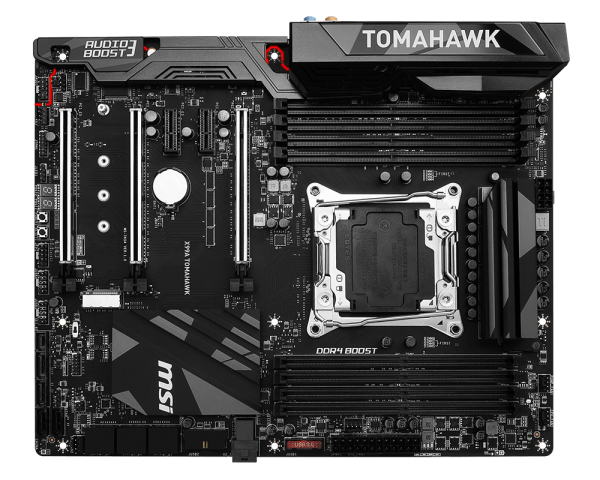

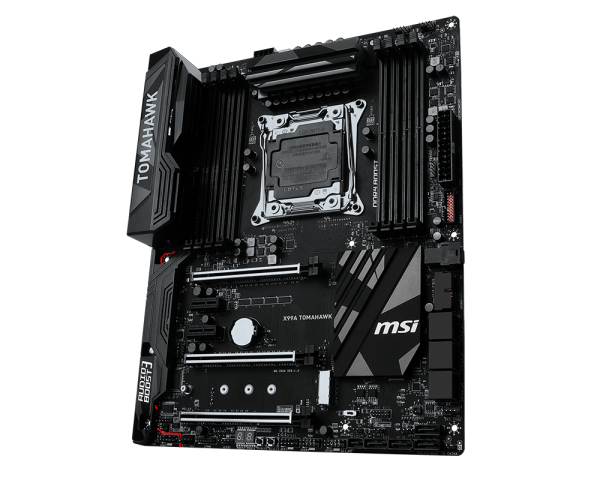

MSI X99A TOMAHAWK

MSI X99A TOMAHAWK

Model X99A TOMAHAWKPart no. 7A54-001REAN 824142134450

51 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
  • Supported storage drive interfacesM.2, SATA III
  • Parallel processing technology support3-Way CrossFireX, 3-Way SLI
  • USB 2.0 connectors2
  • USB 2.0 ports quantity4
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
Supported storage drive interfaces
M.2, SATA III
Parallel processing technology support
3-Way CrossFireX, 3-Way SLI
USB 2.0 connectors
2
USB 2.0 ports quantity
4
Brand
MSI
Category
Motherboard
Model
X99A TOMAHAWK
Part number
7A54-001R
EAN / UPC
824142134450, 4058154130698, 4719072477271, 5283566775260
Also known as
MSI X99A TOMAHAWK Intel® X99 LGA 2011-v3 ATX

Specifications

51 specifications in 12 groups

Processor

Processor manufacturerIntel
Processor socketLGA 2011-v3
Compatible processor seriesIntel® Core™ i7

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots8
Memory slots typeDIMM
Memory channelsQuad-channel
Supported memory clock speeds2133,2200,2400,2600,2666,2800,2933,3000,3200,3333 MHz
Maximum internal memory128 GB
Unbuffered memoryYes

Storage controllers

Supported storage drive interfacesM.2, SATA III
RAID levels0, 1, 5, 10

Graphics

Parallel processing technology support3-Way CrossFireX, 3-Way SLI

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
Number of SATA III connectors10
Number of SATA Express connectors1
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Chassis intrusion connectorYes
TPM connectorYes

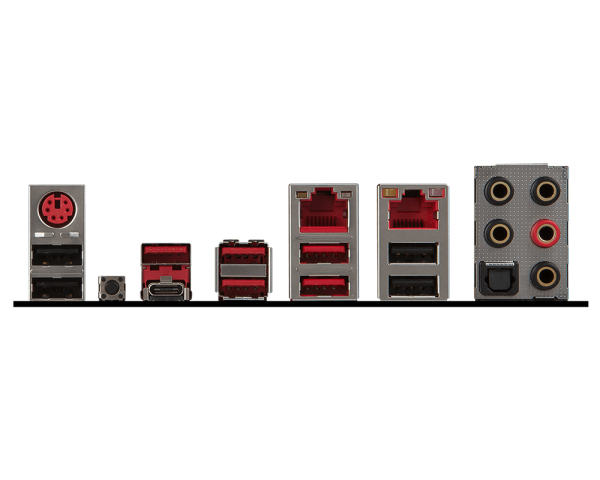

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
Ethernet LAN (RJ-45) ports2
PS/2 ports quantity1
VGA (D-Sub) ports quantity0
HDMI ports quantity0
S/PDIF out portYes

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerIntel® I210-AT, Intel® I218-LM

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® X99
Audio output channels7.1 channels
Power source typeATX

Expansion slots

PCI Express x1 (Gen 2.x) slots2
PCI Express x16 (Gen 3.x) slots3
Number of M.2 (M) slots1

BIOS

Clear CMOS jumperYes
Clear CMOS buttonYes

Processor special features

Intel® Turbo Boost Technology3.0

Weight & dimensions

Width305 mm
Depth244 mm
