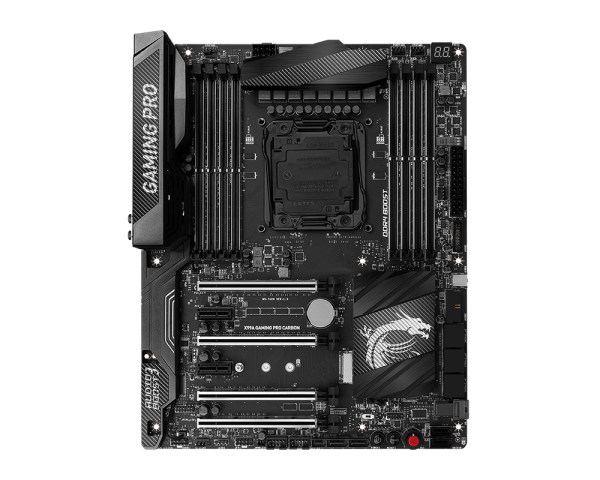

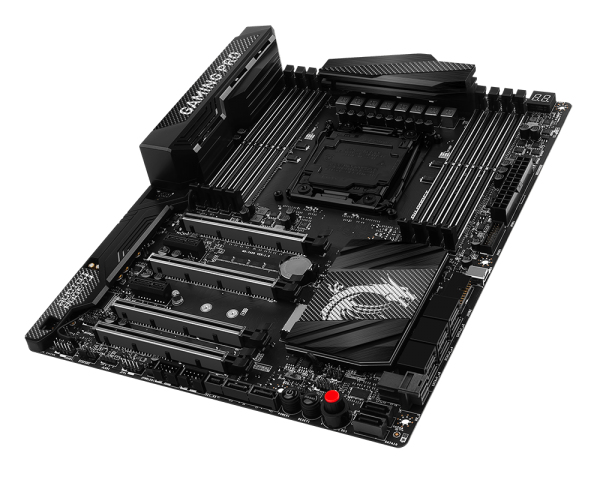

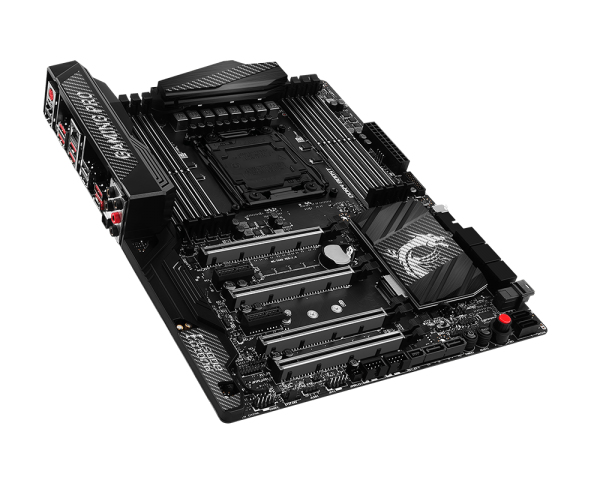

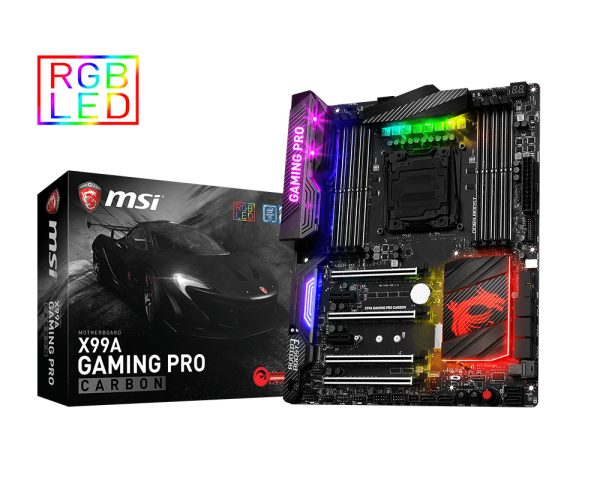

MSI X99A Gaming Pro Carbon

MSI X99A Gaming Pro Carbon

Model X99A Gaming Pro CarbonPart no. 007A20-003REAN 824142130124

62 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
  • Supported storage drive interfacesM.2, SATA III
  • Parallel processing technology support3-Way CrossFireX, 3-Way SLI
  • USB 2.0 connectors2
  • USB 2.0 ports quantity4
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
Supported storage drive interfaces
M.2, SATA III
Parallel processing technology support
3-Way CrossFireX, 3-Way SLI
USB 2.0 connectors
2
USB 2.0 ports quantity
4
Brand
MSI
Category
Motherboard
Model
X99A Gaming Pro Carbon
Part number
007A20-003R
EAN / UPC
824142130124, 4719072463472
Also known as
MSI X99A Gaming Pro Carbon Intel® X99 LGA 2011-v3 ATX

Specifications

62 specifications in 14 groups

Processor

Processor manufacturerIntel
Processor socketLGA 2011-v3
Compatible processor seriesIntel® Core™ i7

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots8
Memory slots typeDIMM
Memory channelsQuad-channel
Supported memory clock speeds2133,2200,2400,2600,2666,2800,2933,3000,3200,3333,3400,3466 MHz
Maximum internal memory128 GB

Storage controllers

Supported storage drive interfacesM.2, SATA III
RAID levels0, 1, 5, 10

Graphics

Parallel processing technology support3-Way CrossFireX, 3-Way SLI
DirectX version12.0

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
Number of SATA III connectors10
Number of SATA II connectors0
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Chassis intrusion connectorYes
TPM connectorYes

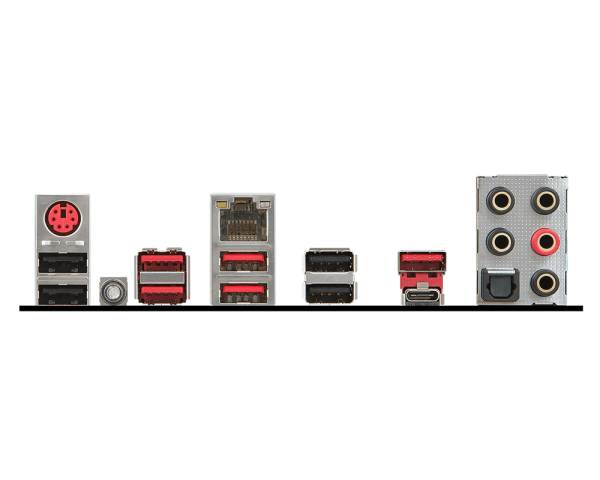

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity0
DVI-D ports quantity0
DisplayPorts quantity0
S/PDIF out portYes

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerIntel® I218-V

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® X99
Audio chipRealtek ALC1150
Audio output channels7.1 channels
Power source typeATX
Number of mounting holes9

Expansion slots

PCI Express x1 (Gen 2.x) slots2
PCI Express x16 (Gen 3.x) slots4
Number of M.2 (M) slots1

BIOS

BIOS typeUEFI
Clear CMOS jumperYes
Clear CMOS buttonYes

Processor special features

Intel Extreme Memory Profile (XMP)Yes
Intel® High Definition Audio (Intel® HD Audio)Yes
Intel® Smart Response TechnologyYes
Intel® Turbo Boost Technology3.0

Logistics data

Harmonized System (HS) code84733020

Weight & dimensions

Width305 mm
Depth244 mm

Other features

Number of SATA Express ports1
