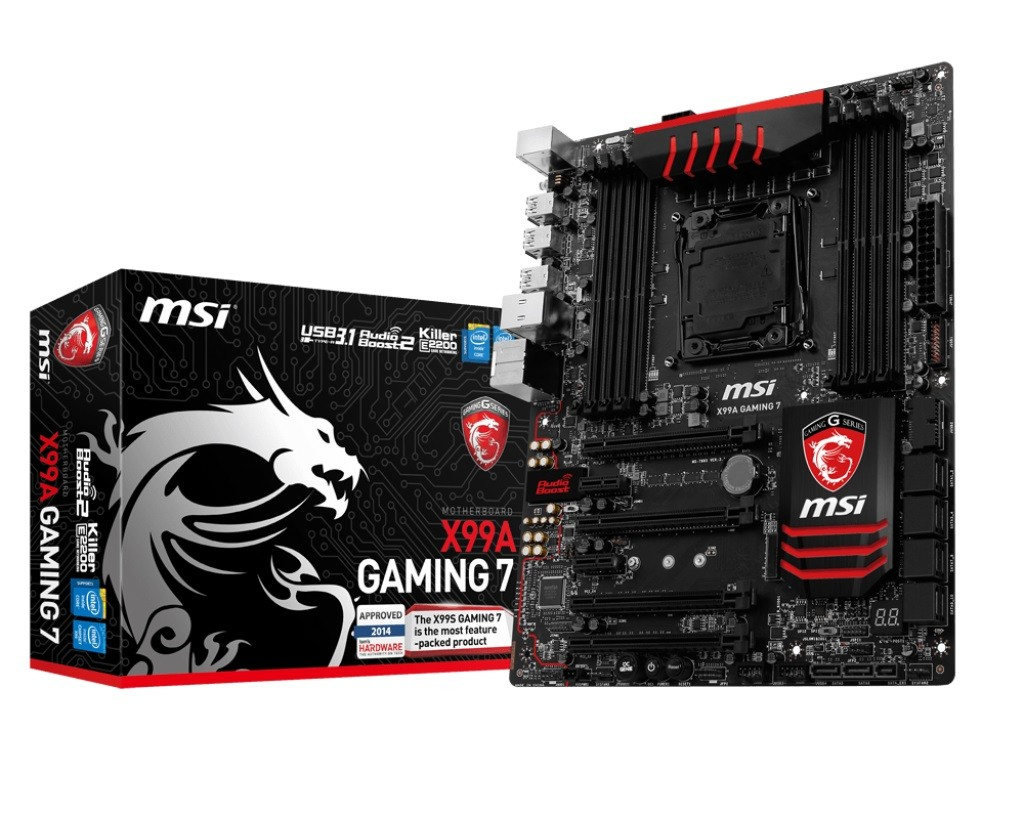

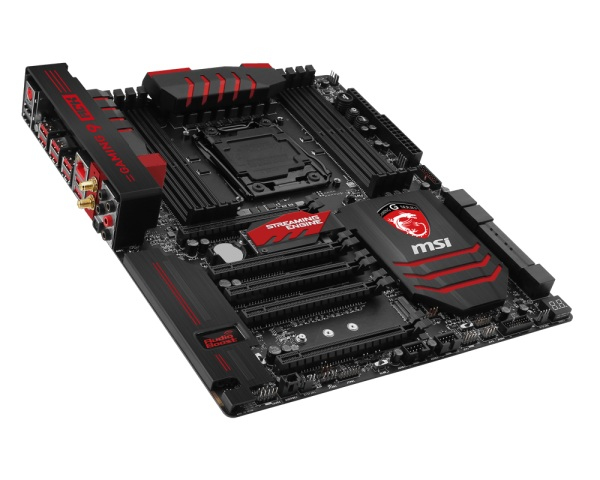

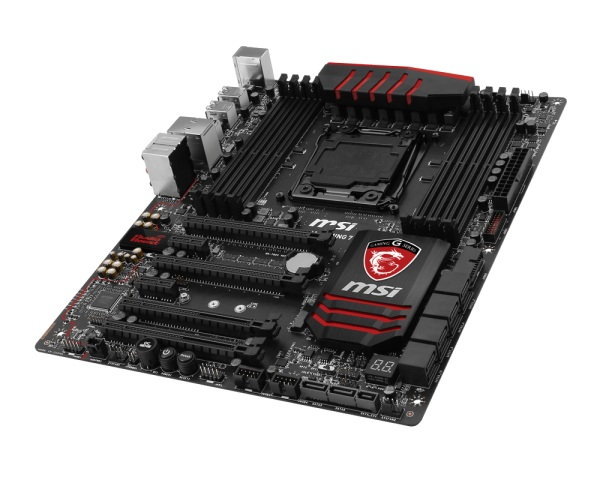

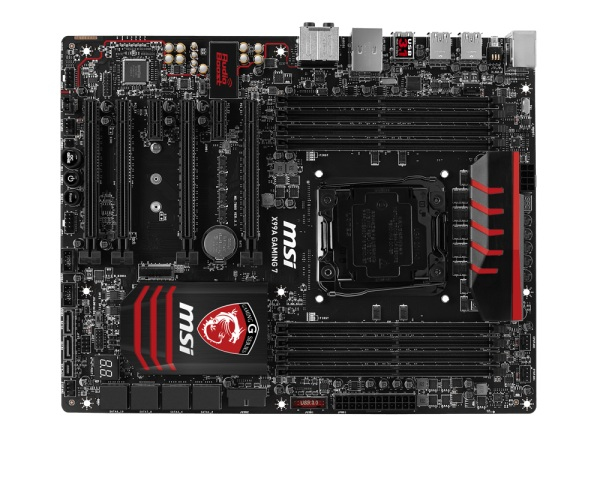

MSI X99A GAMING 7

MSI X99A GAMING 7

Model X99A GAMING 7Part no. 7885-032REAN 5054629711682

61 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
  • Supported storage drive interfacesM.2, SATA III
  • Parallel processing technology support3-Way CrossFireX, 3-Way SLI
  • USB 2.0 connectors4
  • USB 2.0 ports quantity2
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
Supported storage drive interfaces
M.2, SATA III
Parallel processing technology support
3-Way CrossFireX, 3-Way SLI
USB 2.0 connectors
4
USB 2.0 ports quantity
2
Brand
MSI
Category
Motherboard
Model
X99A GAMING 7
Part number
7885-032R
EAN / UPC
5054629711682, 779184428374, 801947357505, 809395442392 +3 more
Also known as
MSI X99A GAMING 7 Intel® X99 LGA 2011-v3 ATX

Specifications

61 specifications in 12 groups

Processor

Processor manufacturerIntel
Processor socketLGA 2011-v3
Compatible processor seriesIntel® Core™ i7 Extreme Edition
Maximum number of SMP processors1
Intel Core i3/i5/i7/i9 seriesi7-xxx Extreme Edition
Supported processor socketsLGA 2011-v3 (Socket R)

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots8
Memory slots typeDIMM
Memory channelsQuad-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds2133,2200,2400,2600,3000 MHz
Maximum internal memory128 GB
Unbuffered memoryYes

Storage controllers

Supported storage drive interfacesM.2, SATA III
RAID levels0, 1, 5, 10

Graphics

Parallel processing technology support3-Way CrossFireX, 3-Way SLI
Discrete graphics supportYes

Internal I/O

USB 2.0 connectors4
USB 3.2 Gen 1 (3.1 Gen 1) connectors4
Number of SATA III connectors10
Number of SATA II connectors0
Number of Parallel ATA connectors0
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Power fan connectorYes
CPU fan connectorYes
Peripheral (Molex) power connectors (4-pin)1
EPS power connector (8-pin)Yes
TPM connectorYes

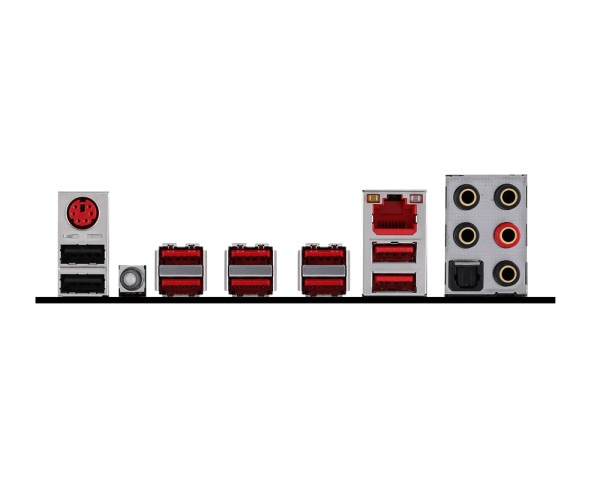

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity6
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity0
DVI-D ports quantity0
S/PDIF out portYes
Digital audio optical out1

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerBigfoot Killer E2205

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® X99
Audio chipRealtek ALC1150
Audio output channels7.1 channels
Power source typeATX
Windows operating systems supportedWindows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Win

Expansion slots

PCI Express x1 (Gen 2.x) slots2
PCI Express x16 (Gen 3.x) slots4

BIOS

BIOS typeUEFI
Clear CMOS jumperYes
Clear CMOS buttonYes

Weight & dimensions

Width305 mm
Depth244 mm

Other features

BIOS switch buttonYes
