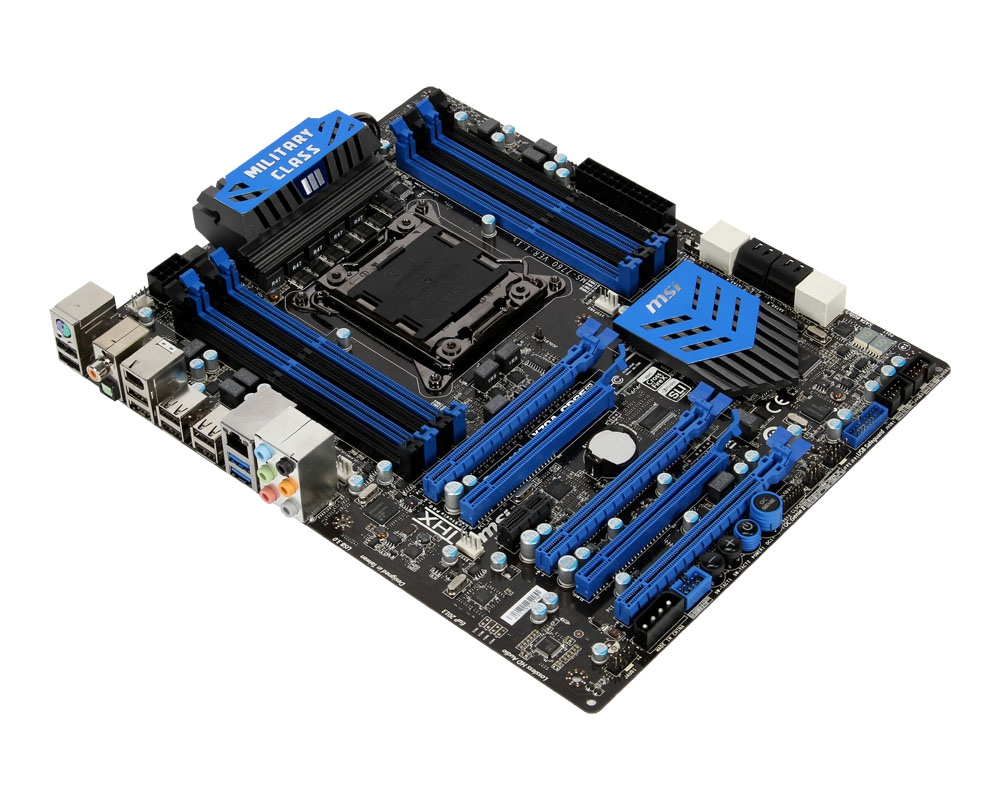

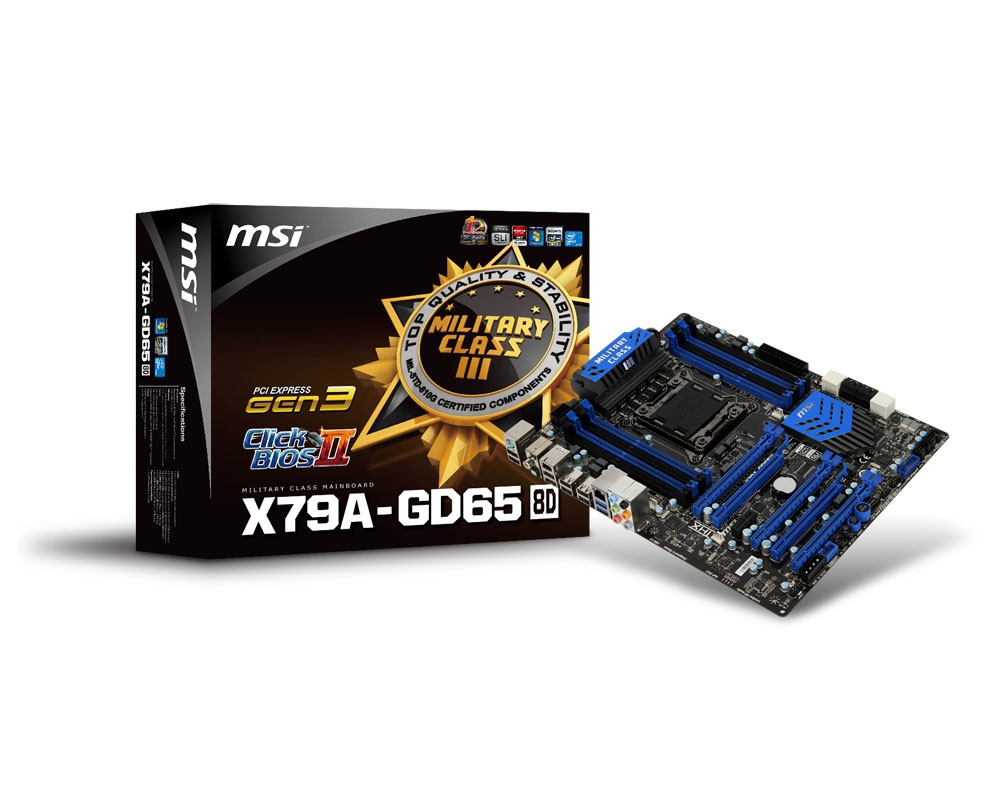

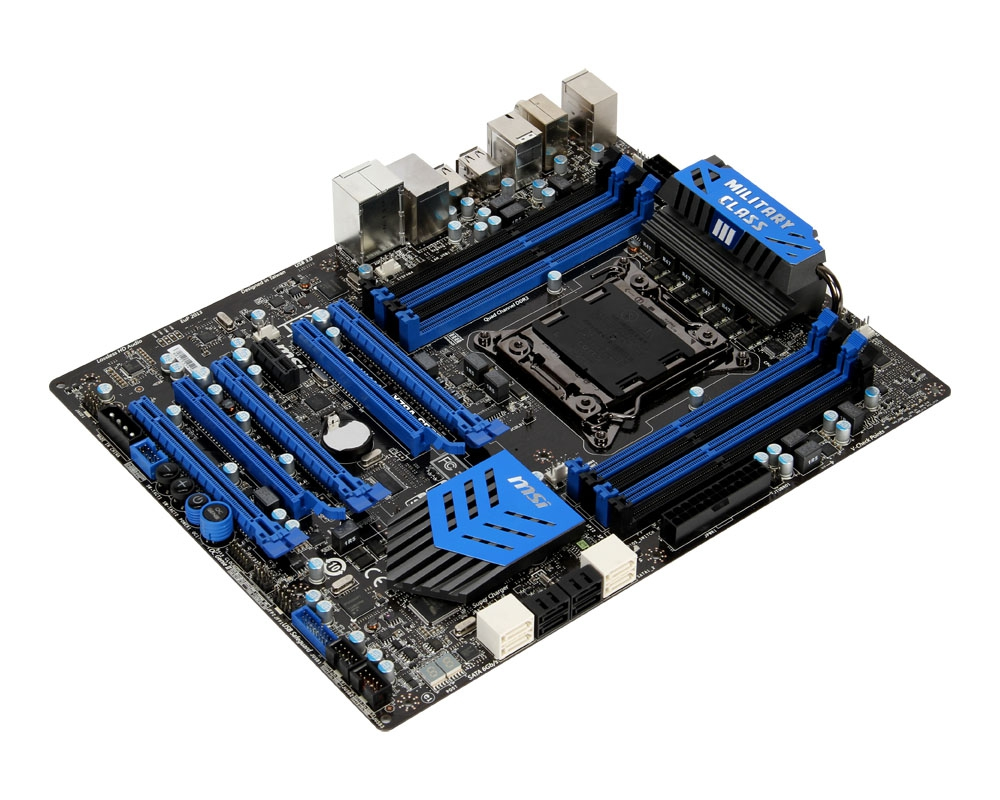

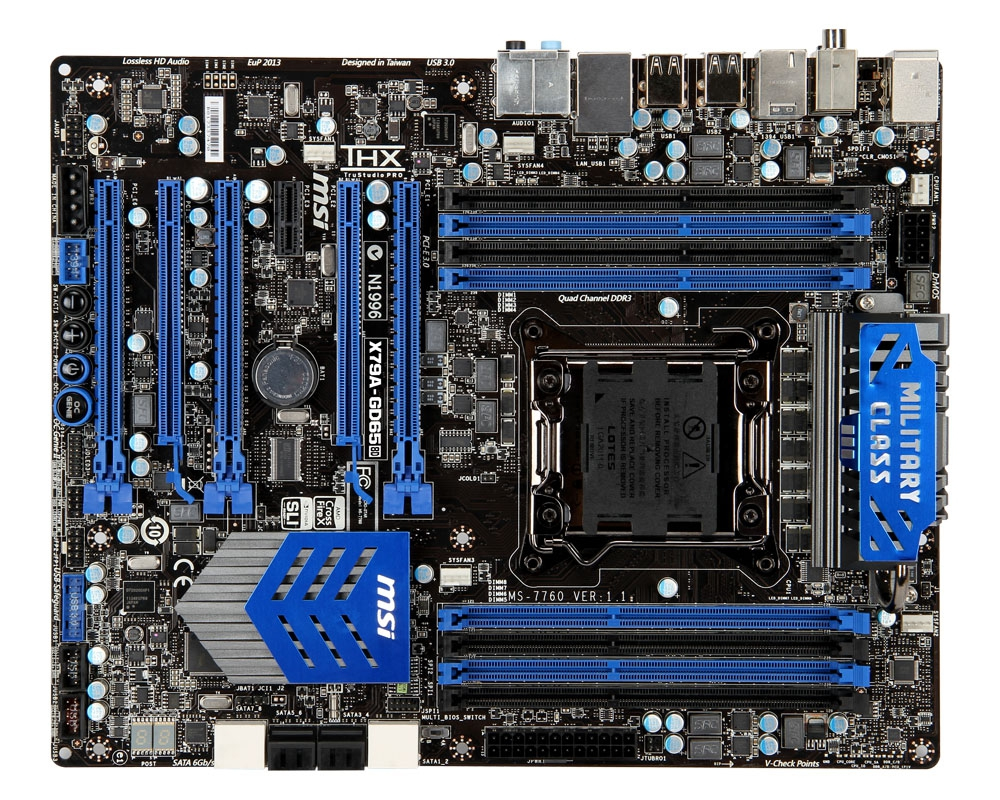

MSI X79A-GD65 (8D)

MSI X79A-GD65 (8D)

Model X79A-GD65 (8D)Part no. X79A-GD65(8D)EAN 816909091694

53 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA II, SATA III
  • Parallel processing technology support2-Way SLI, 3-Way SLI
  • USB 2.0 connectors2
  • USB 2.0 ports quantity8
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA II, SATA III
Parallel processing technology support
2-Way SLI, 3-Way SLI
USB 2.0 connectors
2
USB 2.0 ports quantity
8
Brand
MSI
Category
Motherboard
Model
X79A-GD65 (8D)
Part numbers
X79A-GD65(8D), 601-7760-010, 7760-020R, 7760-010R, X79A-GD65 (8D), X79-GD65 (8D)
EAN / UPC
816909091694, 816909092288, 4719072244828, 4719072243036
Also known as
MSI X79A-GD65 (8D) LGA 2011 (Socket R) ATX

Specifications

53 specifications in 12 groups

Processor

Processor manufacturerIntel
Processor socketLGA 2011 (Socket R)
Compatible processor seriesIntel® Core™ i7

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots8
Memory channelsQuad-channel
Memory voltage1.5 V
Supported memory clock speeds1066,1333,1600,1800,2133,2400 MHz
Maximum internal memory128 GB

Storage controllers

Supported storage drive interfacesSATA II, SATA III
RAID levels0, 1, 5, 10

Graphics

Parallel processing technology support2-Way SLI, 3-Way SLI
On-board graphics cardNo

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Number of SATA III connectors4
Number of SATA II connectors4
Number of Parallel ATA connectors0
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors4
Chassis intrusion connectorYes
Peripheral (Molex) power connectors (4-pin)1
EPS power connector (8-pin)Yes
Number of IEEE1394 connectors1

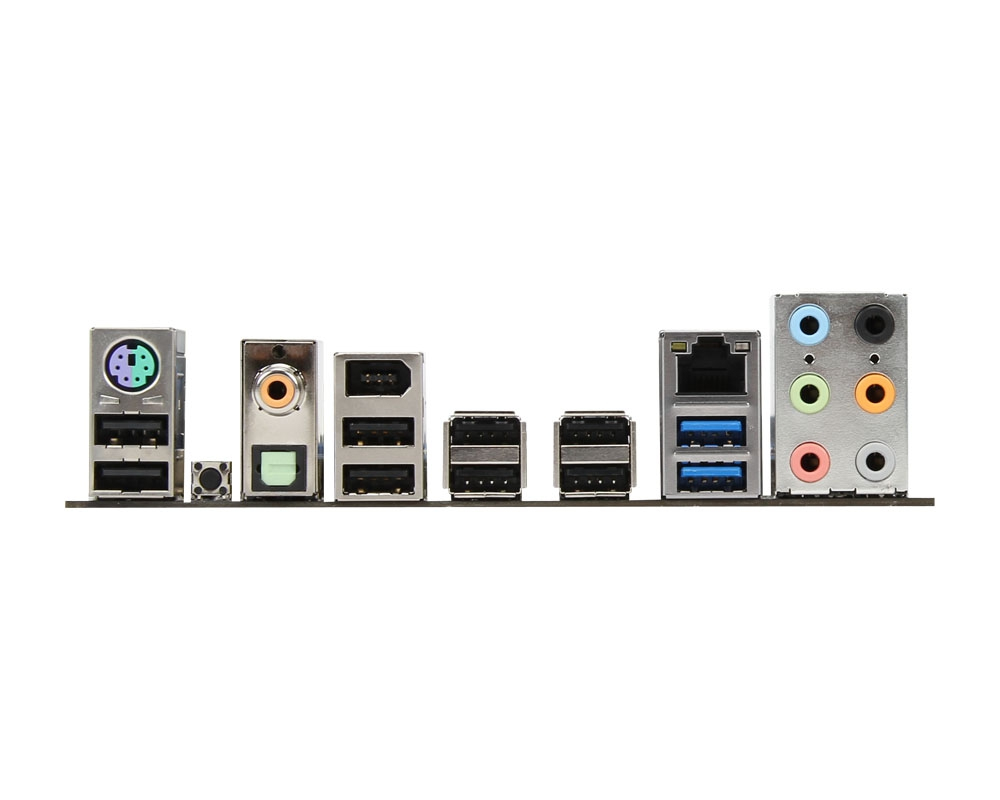

Rear panel I/O ports

USB 2.0 ports quantity8
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports1
VGA (D-Sub) ports quantity0
HDMI ports quantity0
DVI-D ports quantity0
Headphone outputs1
Microphone inYes
S/PDIF out portYes
Digital audio optical out1

Network

Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111E

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyIntel
Audio chipRealtek ALC892
Power source typeATX

Expansion slots

PCI Express x1 slots1
PCI Express x16 slots5

BIOS

Clear CMOS buttonYes

Weight & dimensions

Width244 mm
Depth305 mm

Other features

Controller 2nd interface typeASM 1061
Controller interface typeIntel X79
