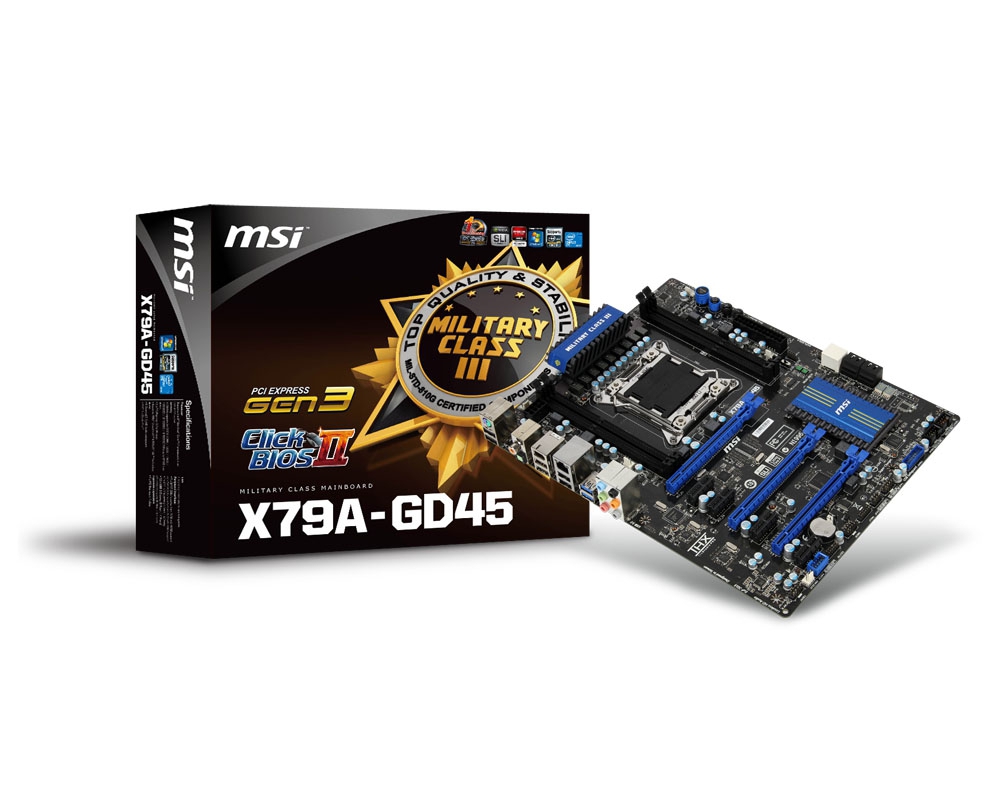

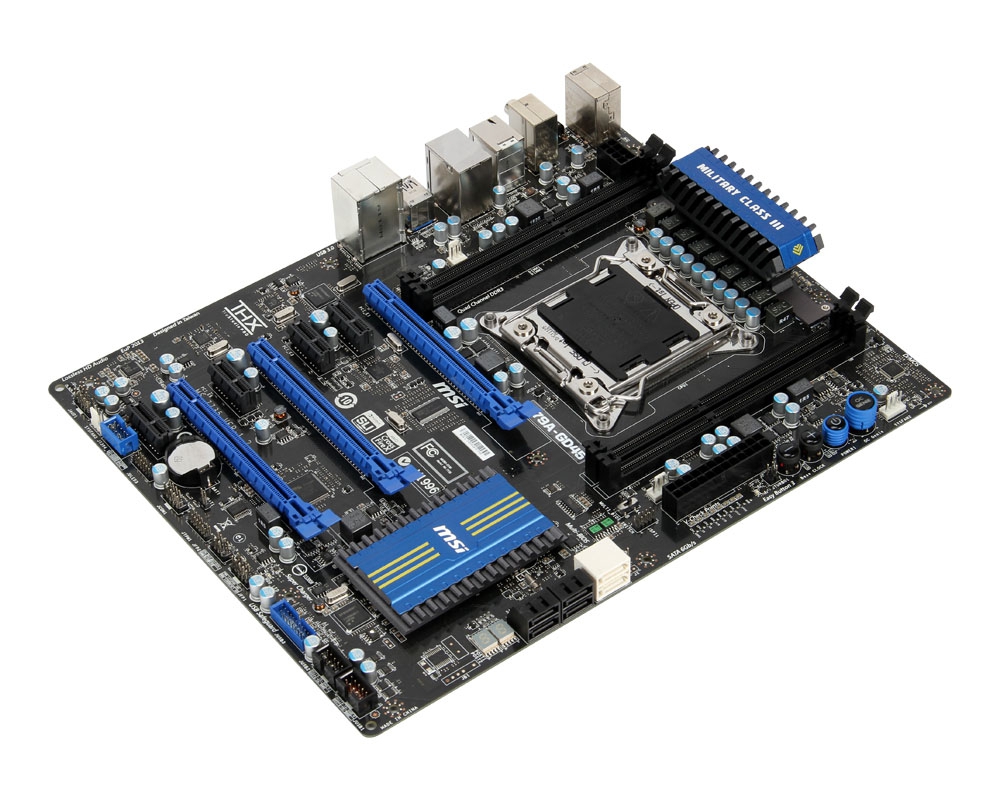

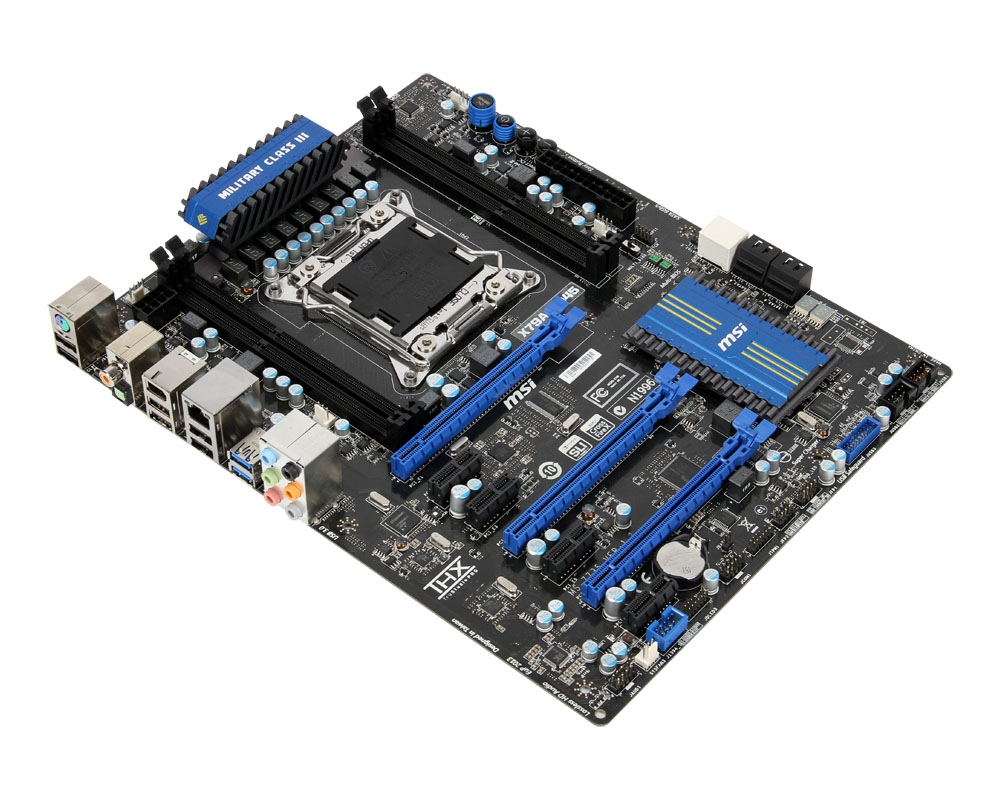

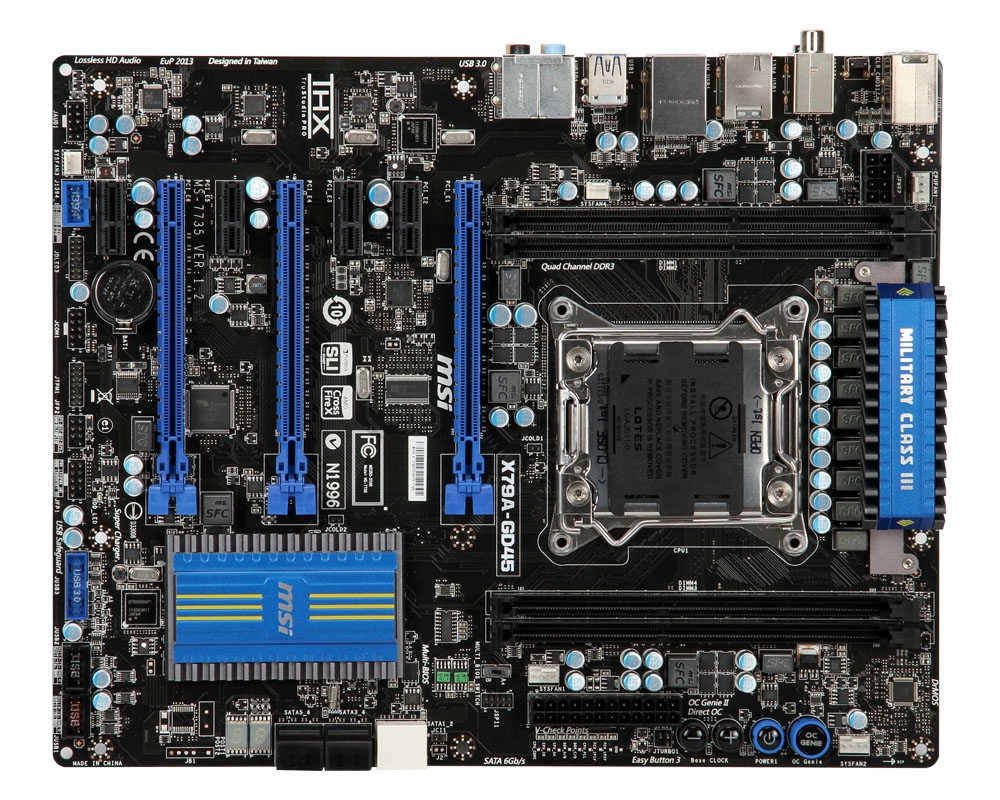

MSI X79A-GD45 motherboard LGA 2011 (Socket R) ATX
Model X79A-GD45EAN 8169090916706
53 specifications
- Processor manufacturerIntel
- Supported memory typesDDR3-SDRAM
- Supported storage drive interfacesSATA II, SATA III
- Parallel processing technology support2-Way SLI, 3-Way SLI
- USB 2.0 connectors2
- USB 2.0 ports quantity6
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR3-SDRAM
- Supported storage drive interfaces
- SATA II, SATA III
- Parallel processing technology support
- 2-Way SLI, 3-Way SLI
- USB 2.0 connectors
- 2
- USB 2.0 ports quantity
- 6
- Brand
- MSI
- Category
- Motherboard
- Model
- X79A-GD45
- Part numbers
- X79A-GD45, 7735-010R, 601-7735-010
- EAN / UPC
- 8169090916706, 816909091670, 4719072243012
- Also known as
- MSI X79A-GD45 motherboard LGA 2011 (Socket R) ATX
Specifications
53 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 2011 (Socket R) |
| Compatible processor series | Intel® Core™ i7 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Number of memory slots | 4 |
| Memory channels | Quad-channel |
| Memory voltage | 1.5 V |
| Supported memory clock speeds | 1066,1333,1600,1800,2133,2400 MHz |
| Maximum internal memory | 64 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA II, SATA III |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | 2-Way SLI, 3-Way SLI |
| On-board graphics card | No |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 2 |
| Number of SATA II connectors | 4 |
| Number of Parallel ATA connectors | 0 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 4 |
| Chassis intrusion connector | Yes |
| Number of IEEE1394 connectors | 1 |
| TPM connector | Yes |

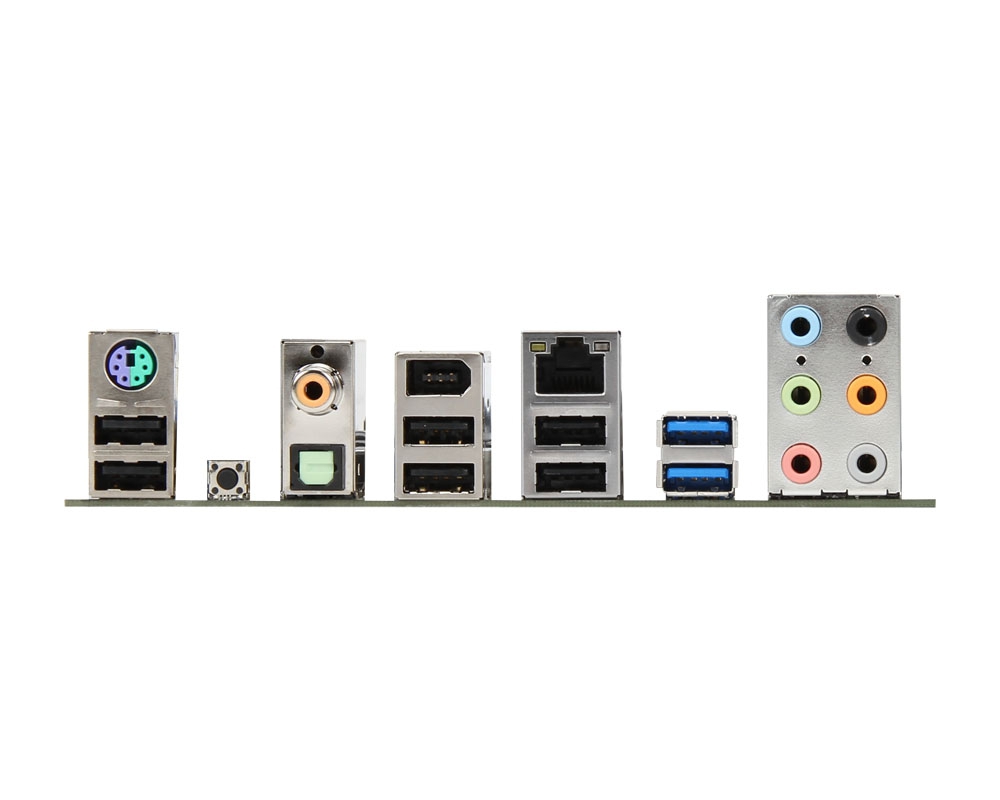

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 1 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| Digital audio optical out | 1 |
| COM ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek RTL8111E |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Audio chip | Realtek ALC892 |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 slots | 3 |
| PCI slots | 4 |
BIOS
| Specification | Value |
|---|---|
| Clear CMOS button | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 305 mm |
Other features
| Specification | Value |
|---|---|
| Controller interface type | Intel X79 |
What people say
Reviews & ratings
MSI X79A-GD45 motherboard LGA 2011 (Socket R) ATX
No reviews yet
Be the first to tell others how MSI X79A-GD45 motherboard LGA 2011 (Socket R) ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare MSI X79A-GD45 motherboard LGA 2011 (Socket R) ATX
All motherboard comparisons- MSI X79A-GD45 motherboard LGA 2011 (Socket R) ATX vsMSI X79A-GD65 (8D)Compare specs

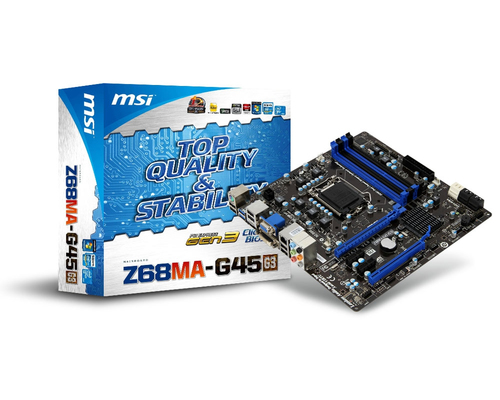

- MSI X79A-GD45 motherboard LGA 2011 (Socket R) ATX vsMSI Z68MA-G45 Intel Z68 LGA 1155 (Socket H2) micro ATXCompare specs
- MSI X79A-GD45 motherboard LGA 2011 (Socket R) ATX vsMSI Z68MA-G45 (G3)Compare specs
- MSI X79A-GD45 motherboard LGA 2011 (Socket R) ATX vsMSI G31TM-P25 motherboard Intel® G31 LGA 775 (Socket T) micro ATXCompare specs

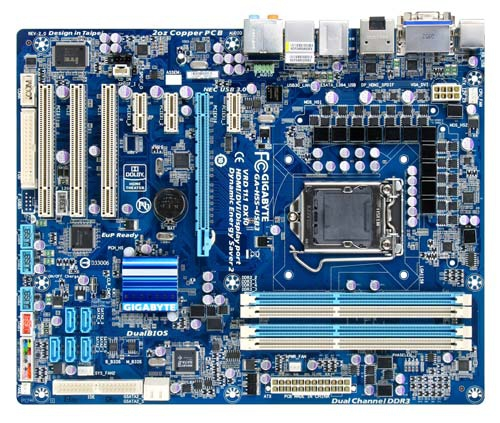

- MSI X79A-GD45 motherboard LGA 2011 (Socket R) ATX vsGIGABYTE GA-H55-USB3 (rev. 2.0)Compare specs

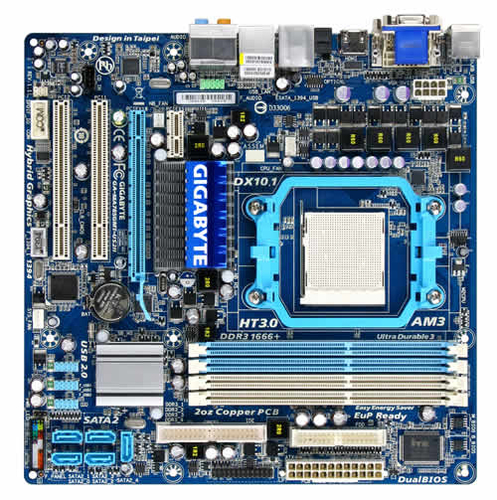

- MSI X79A-GD45 motherboard LGA 2011 (Socket R) ATX vsGIGABYTE GA-MA785GMT-US2H (rev. 3.3)Compare specs
