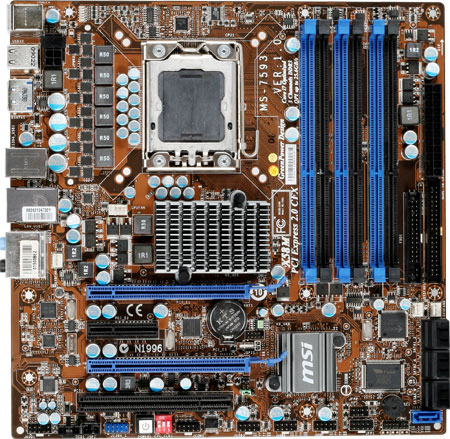

MSI X58M motherboard Socket B (LGA 1366) micro ATX
Model X58MPart no. 7593-010REAN 816909057850
42 specifications
- Processor manufacturerIntel
- Number of memory slots6
- RAID levels0, 1
- USB 2.0 connectors3
- LAN controllerRealtek RTL8111C
- Motherboard form factormicro ATX
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 6
- RAID levels
- 0, 1
- USB 2.0 connectors
- 3
- LAN controller
- Realtek RTL8111C
- Motherboard form factor
- micro ATX
- Brand
- MSI
- Category
- Motherboard
- Model
- X58M
- Part numbers
- 7593-010R, 601-7593-010, 911-7593-009, 7593-005 X58M, X58M
- EAN / UPC
- 816909057850, 4719072113353
- Also known as
- MSI X58M motherboard Socket B (LGA 1366) micro ATX
Specifications
42 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | Socket B (LGA 1366) |
| Compatible processor series | Intel® Core™ i7 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 6 |
| Maximum internal memory | 24 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of SATA connectors | 7 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 3 |
| Chassis intrusion connector | Yes |
| Number of COM connectors | 1 |
| Number of IEEE1394 connectors | 1 |
| TPM connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 1 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 1 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 6 |
| Microphone in | Yes |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8111C |
| Networking features | Fast Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 2 |
| PCI slots | 1 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 245 mm |
| Depth | 245 mm |
Other features
| Specification | Value |
|---|---|
| Controller 2nd interface type | IDE |
| Controller interface type | SATAII |
| Audio output | Realtek ALC888S / ALC889 |
What people say
Reviews & ratings
MSI X58M motherboard Socket B (LGA 1366) micro ATX
No reviews yet
Be the first to tell others how MSI X58M motherboard Socket B (LGA 1366) micro ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare MSI X58M motherboard Socket B (LGA 1366) micro ATX

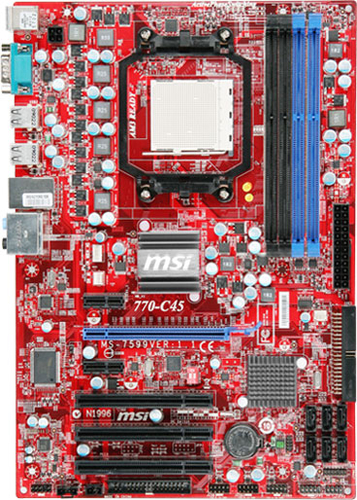

All motherboard comparisons- MSI X58M motherboard Socket B (LGA 1366) micro ATX vsMSI 770-C45 AMD 770 Socket AM3 ATXCompare specs

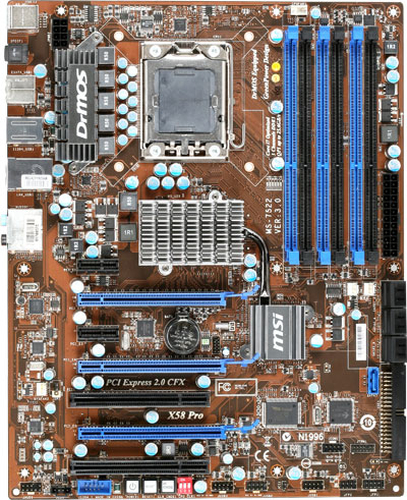

- MSI X58M motherboard Socket B (LGA 1366) micro ATX vsMSI X58 PRO-ECompare specs
