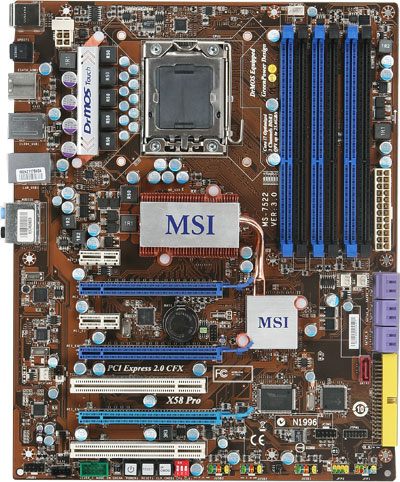

MSI X58 Pro
Model X58 ProPart no. X58 PROEAN 4719072104290
38 specifications
- Processor manufacturerIntel
- Number of memory slots6
- USB 2.0 connectors3
- LAN controllerRealtek RTL8111C
- Motherboard form factorATX
- Width244 mm
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 6
- USB 2.0 connectors
- 3
- LAN controller
- Realtek RTL8111C
- Motherboard form factor
- ATX
- Width
- 244 mm
- Brand
- MSI
- Category
- Motherboard
- Model
- X58 Pro
- Part numbers
- X58 PRO, 601-7522-A10, 911-7522-013, 7522-040R, 7522-050
- EAN / UPC
- 4719072104290, 5051964725541, 816909054484
- Also known as
- MSI X58 Pro Socket B (LGA 1366) ATX
Specifications
38 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | Socket B (LGA 1366) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 6 |
| Maximum internal memory | 24 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of SATA connectors | 7 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 3 |
| Chassis intrusion connector | Yes |
| Number of IEEE1394 connectors | 1 |
| TPM connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 1 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 1 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8111C |
| Networking features | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | Realtek ALC888S |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 3 |
| PCI Express x16 slots | 3 |
| PCI slots | 2 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 305 mm |
