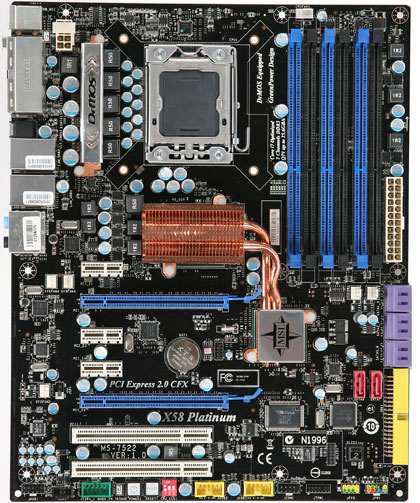

MSI X58 Platinum
Model X58 PlatinumPart no. 7522-010REAN 4719072097073
40 specifications
- Memory0 GB
- Processor manufacturerIntel
- Number of memory slots6
- RAID levels0, 1, 5, 10, JBOD
- USB 2.0 connectors2
- USB 2.0 ports quantity8
Overview
- Memory
- 0 GB
- Processor manufacturer
- Intel
- Number of memory slots
- 6
- RAID levels
- 0, 1, 5, 10, JBOD
- USB 2.0 connectors
- 2
- USB 2.0 ports quantity
- 8
- Brand
- MSI
- Category
- Motherboard
- Model
- X58 Platinum
- Part numbers
- 7522-010R, X58 PLATINUM, 7522-A10
- EAN / UPC
- 4719072097073
- Also known as
- MSI X58 Platinum Socket B (LGA 1366) ATX
Specifications
40 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | Socket B (LGA 1366) |
| Compatible processor series | Intel® Core™ i7, Intel® Core™ i7 Extreme Edition |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 6 |
| Memory voltage | 1.5 V |
| Internal memory | 0 GB |
| Maximum internal memory | 24 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 5, 10, JBOD |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 8 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| Number of IEEE1394 connectors | 1 |
| TPM connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 8 |
| Ethernet LAN (RJ-45) ports | 2 |
| eSATA ports quantity | 1 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 1 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
Network
| Specification | Value |
|---|---|
| Networking features | IEEE1394, FireWire, Realtek 8111C |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | Realtek ALC888 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 3 |
| PCI Express x16 slots | 2 |
| PCI slots | 2 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 305 mm |
Other features
| Specification | Value |
|---|---|
| I/O ports | 1 x GreenPower Genie 1 x Reset Button 1 x Power Button 1 x D-LED2 1 x Clear CMOS 1 x Optical SPDIF-out (Back Panel) |
What people say
Reviews & ratings
MSI X58 Platinum
- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare MSI X58 Platinum
All motherboard comparisons- MSI X58 Platinum vsMSI P45-8D Memory LoverCompare specs
- MSI X58 Platinum vsMSI 5100 Master-A6MCompare specs
- MSI X58 Platinum vsMSI P7NGM-Digital LGA 775 (Socket T) micro ATXCompare specs

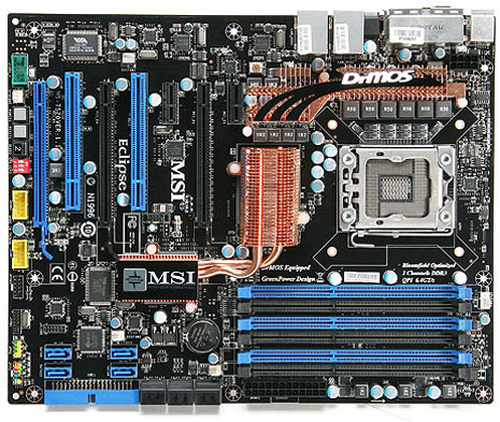

- MSI X58 Platinum vsMSI Eclipse ATXCompare specs
- MSI X58 Platinum vsGIGABYTE GA-EP43C-DS3 motherboard LGA 775 (Socket T) ATXCompare specs
- MSI X58 Platinum vsGIGABYTE GA-G31M-S2C motherboard LGA 775 (Socket T) micro ATXCompare specs
- MSI X58 Platinum vsGIGABYTE GA-EP45-UD3R motherboard Intel® P45 LGA 775 (Socket T) ATXCompare specs

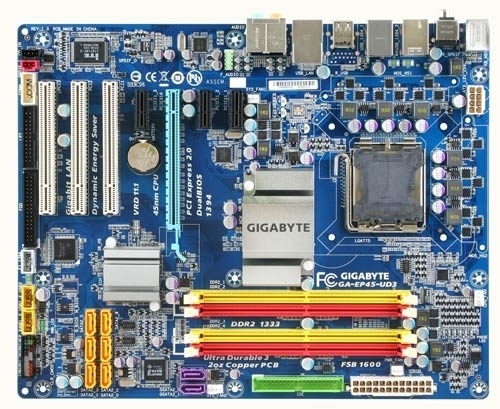

- MSI X58 Platinum vsGIGABYTE GA-EP45-UD3 motherboard LGA 775 (Socket T) ATXCompare specs
