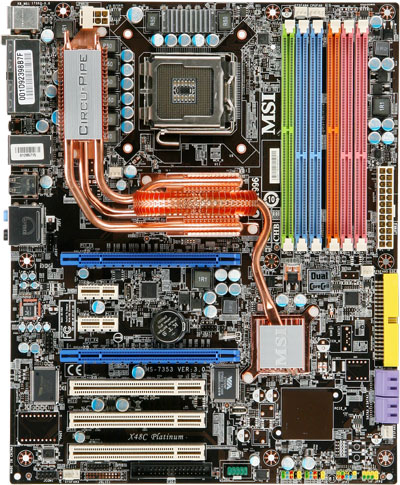

MSI X48C Platinum
Model X48C PlatinumPart no. X48C PLATINUMEAN 4719072071523
24 specifications
- Processor manufacturerIntel
- Number of SATA connectors4
- USB 2.0 ports quantity8
- LAN controllerRealtek RTL8111B
- Motherboard form factorATX
- Width305 mm
Overview
- Processor manufacturer
- Intel
- Number of SATA connectors
- 4
- USB 2.0 ports quantity
- 8
- LAN controller
- Realtek RTL8111B
- Motherboard form factor
- ATX
- Width
- 305 mm
- Brand
- MSI
- Category
- Motherboard
- Model
- X48C Platinum
- Part numbers
- X48C PLATINUM, 7353-090R, 7353-060
- EAN / UPC
- 4719072071523
- Also known as
- MSI X48C Platinum LGA 775 (Socket T) ATX
Specifications
24 specifications in 6 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
| Processor system buses supported | 1600 MHz |
Internal I/O
| Specification | Value |
|---|---|
| Number of SATA connectors | 4 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| Number of IEEE1394 connectors | 1 |

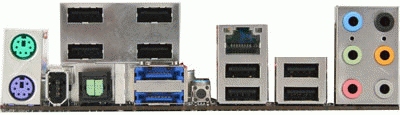

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 8 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 2 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 1 |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8111B |
| Networking features | LAN 10/100/1000 |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | Realtek ALC888 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 245 mm |
