MSI X399 SLI PLUS

MSI X399 SLI PLUS

Model X399 SLI PLUSPart no. 7B09-008REAN 824142153581

63 specifications
  • Processor manufacturerAMD
  • Supported memory typesDDR4-SDRAM
  • RAID levels0, 1, 10
  • Parallel processing technology support4-Way CrossFireX, 4-Way SLI
  • USB 2.0 connectors2
  • Ethernet LANYes
See all specifications

Overview

Processor manufacturer
AMD
Supported memory types
DDR4-SDRAM
RAID levels
0, 1, 10
Parallel processing technology support
4-Way CrossFireX, 4-Way SLI
USB 2.0 connectors
2
Ethernet LAN
Yes
Brand
MSI
Category
Motherboard
Model
X399 SLI PLUS
Part numbers
7B09-008R, 911-7B09-009, 911-7B09-014
EAN / UPC
824142153581, 4719072542986
Also known as
MSI X399 SLI PLUS AMD X399 Socket TR4 ATX

Specifications

63 specifications in 13 groups

Processor

Processor manufacturerAMD
Processor socketSocket TR4
Compatible processor seriesAMD Ryzen Threadripper 1000 Series, AMD Ryzen Threadripper 2000 Series
Maximum number of SMP processors1

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots8
Memory slots typeDIMM
Memory channelsQuad-channel
Supported memory clock speeds2133,2400,2667,2800,2933,3066,3200,3333,3466,3600 MHz
Maximum internal memory128 GB

Storage controllers

RAID levels0, 1, 10

Graphics

Parallel processing technology support4-Way CrossFireX, 4-Way SLI

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
Number of SATA III connectors8
Number of SATA II connectors0
Number of Parallel ATA connectors0
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors4
12V power connectorYes
TPM connectorYes

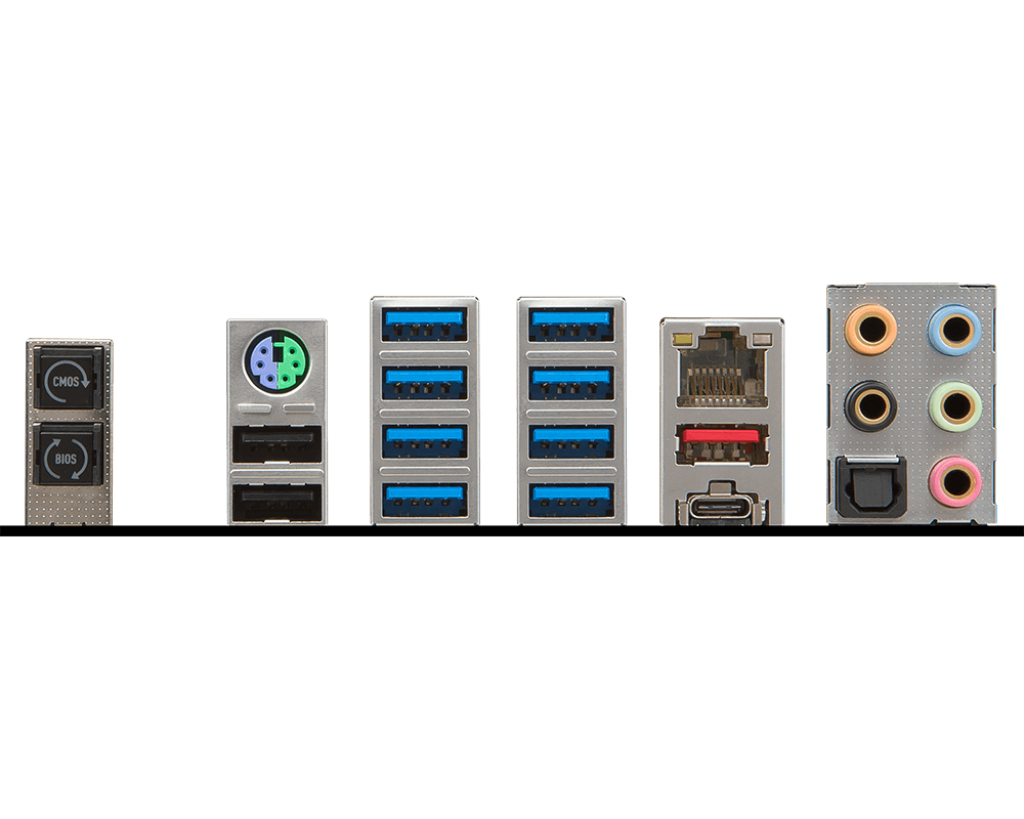

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity8
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity0
DVI-D ports quantity0
S/PDIF out portYes

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerIntel® I211

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyAMD
Motherboard chipsetAMD X399
Audio chipRealtek ALC1220
Audio output channels7.1 channels
PC health monitoringCPU, Fan, Temperature
Power source typeATX

Expansion slots

PCI Express x1 (Gen 2.x) slots2
PCI Express x16 (Gen 3.x) slots4
Number of M.2 (M) slots3

BIOS

BIOS typeUEFI AMI
BIOS memory size128 Mbit
ACPI version6.0
Clear CMOS jumperYes
Clear CMOS buttonYes

Logistics data

Harmonized System (HS) code84733020

Weight & dimensions

Width304 mm
Depth243 mm

Packaging content

Cables includedSATA
ManualYes
Drivers includedYes
