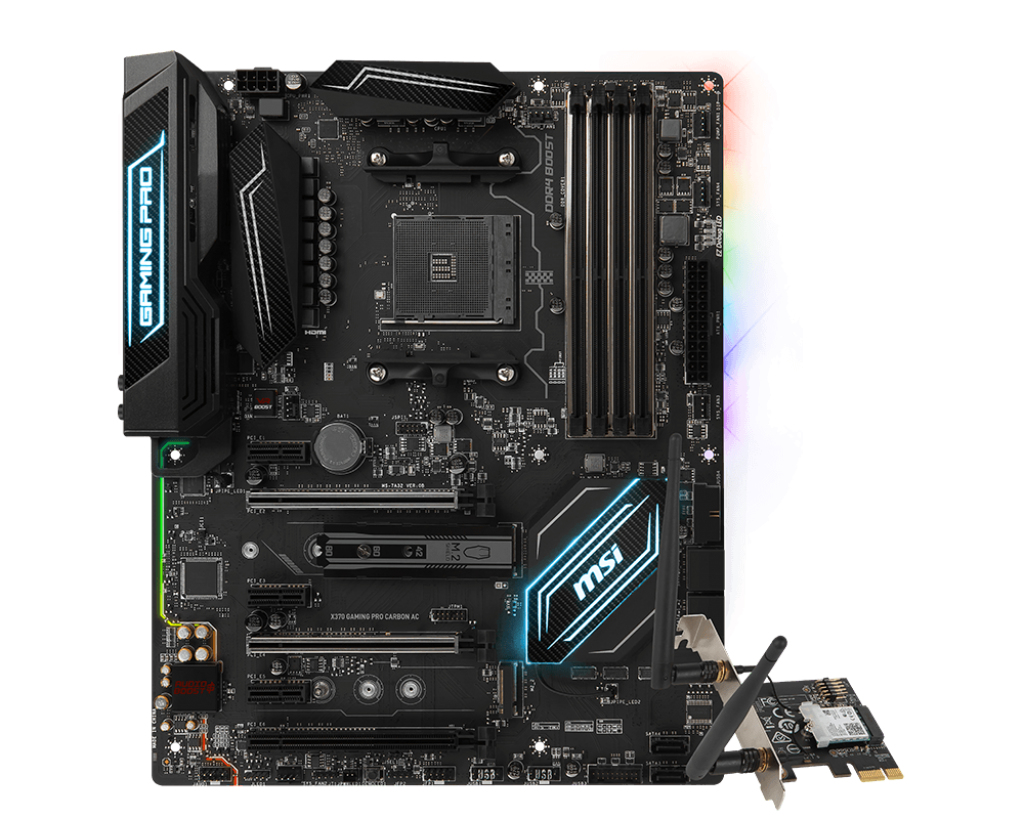

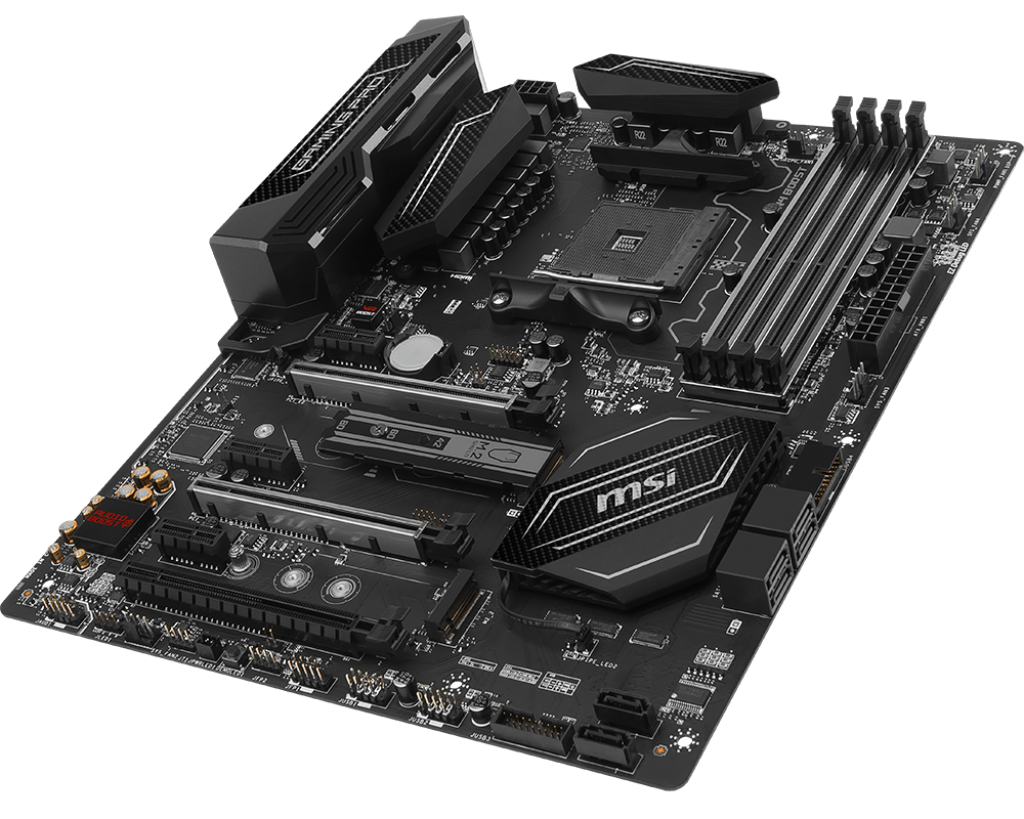

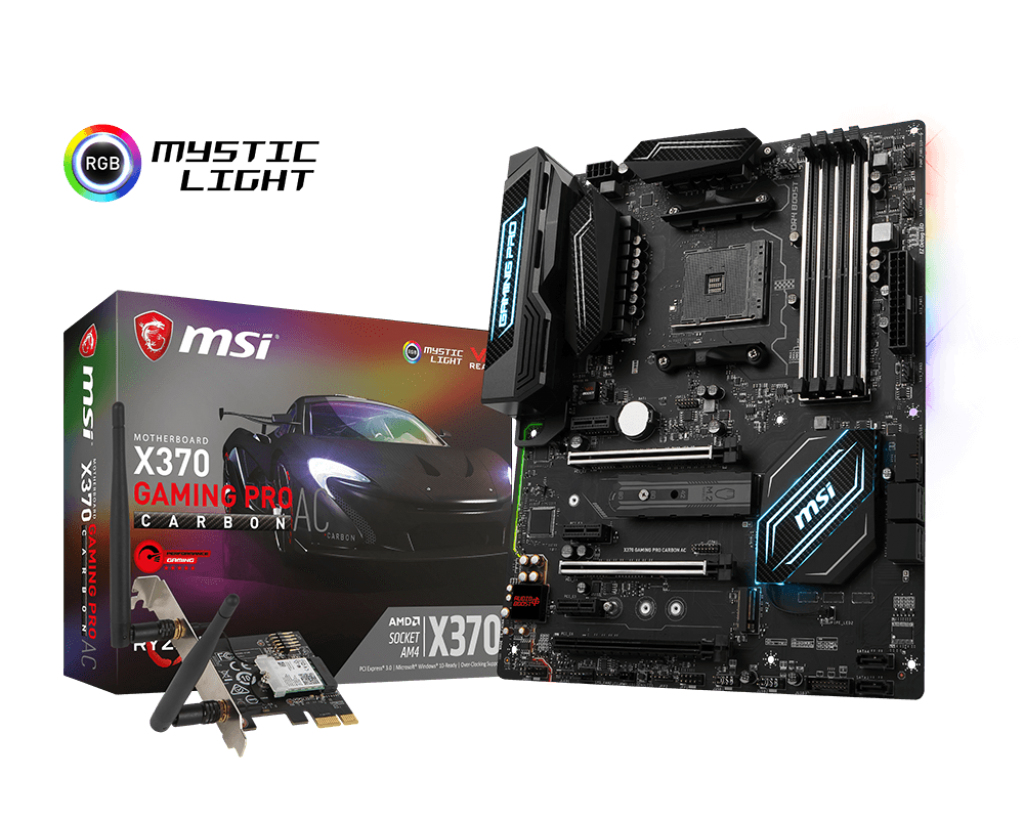

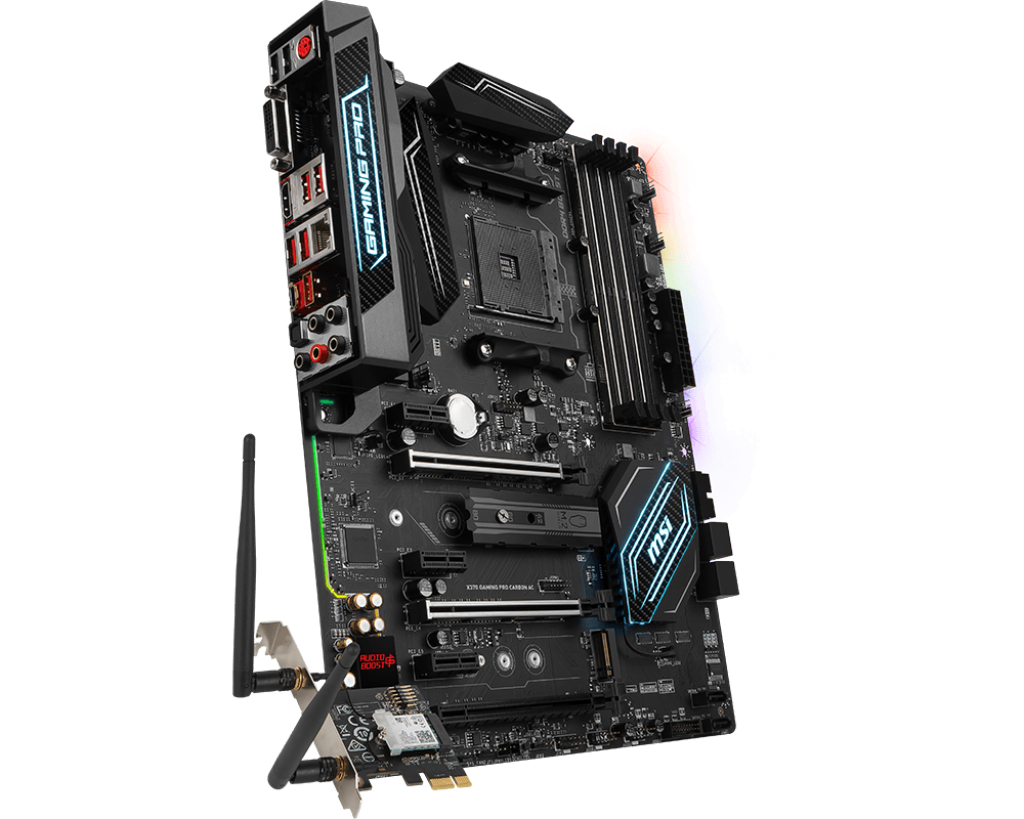

MSI X370 GAMING PRO CARBON AC

MSI X370 GAMING PRO CARBON AC

Model X370 GAMING PRO CARBON ACPart no. 7A32-008REAN 4719072523572

70 specifications
  • Processor manufacturerAMD
  • Supported memory typesDDR4-SDRAM
  • RAID levels0, 1, 10
  • Maximum graphics card memory2048 MB
  • USB 2.0 connectors2
  • Ethernet LANYes
See all specifications

Overview

Processor manufacturer
AMD
Supported memory types
DDR4-SDRAM
RAID levels
0, 1, 10
Maximum graphics card memory
2048 MB
USB 2.0 connectors
2
Ethernet LAN
Yes
Brand
MSI
Category
Motherboard
Model
X370 GAMING PRO CARBON AC
Part number
7A32-008R
EAN / UPC
4719072523572
Also known as
MSI X370 GAMING PRO CARBON AC AMD X370 Socket AM4 ATX

Specifications

70 specifications in 12 groups

Processor

Processor manufacturerAMD
Processor socketSocket AM4
Compatible processor seriesAMD A, AMD Athlon, AMD Athlon™ X4, AMD Ryzen 2000 Series, AMD Ryzen 3000 Series
Maximum number of SMP processors1

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityECC & Non-ECC
Supported memory clock speeds1866,2133,2400,2667,2933,3200 MHz
Maximum internal memory64 GB

Storage controllers

RAID levels0, 1, 10

Graphics

Maximum graphics card memory2048 MB
Maximum resolution4096 x 2160 pixels

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
Number of SATA III connectors6
Number of SATA II connectors0
Number of Parallel ATA connectors0
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Chassis intrusion connectorYes
12V power connectorYes
TPM connectorYes

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity1
HDMI version1.4
DVI-D ports quantity1
S/PDIF out portYes

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerIntel® I211-AT
Wi-FiYes
BluetoothYes
Bluetooth version4.2

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyAMD
Motherboard chipsetAMD X370
Audio chipRealtek ALC1220
Audio output channels7.1 channels
PC health monitoringCPU, Fan, Temperature
Power source typeATX
Number of mounting holes9
Windows operating systems supportedWindows 10, Windows 7, Windows 8.1

Expansion slots

PCI Express x1 (Gen 2.x) slots3
PCI Express x16 (Gen 2.x) slots1
PCI Express x16 (Gen 3.x) slots2
Number of M.2 (M) slots2

BIOS

BIOS typeUEFI AMI
BIOS memory size128 Mbit
ACPI version5.0
Clear CMOS jumperYes

Weight & dimensions

Width305 mm
Depth244 mm

Packaging content

Cables includedSATA, USB
ManualYes
Drivers includedYes
