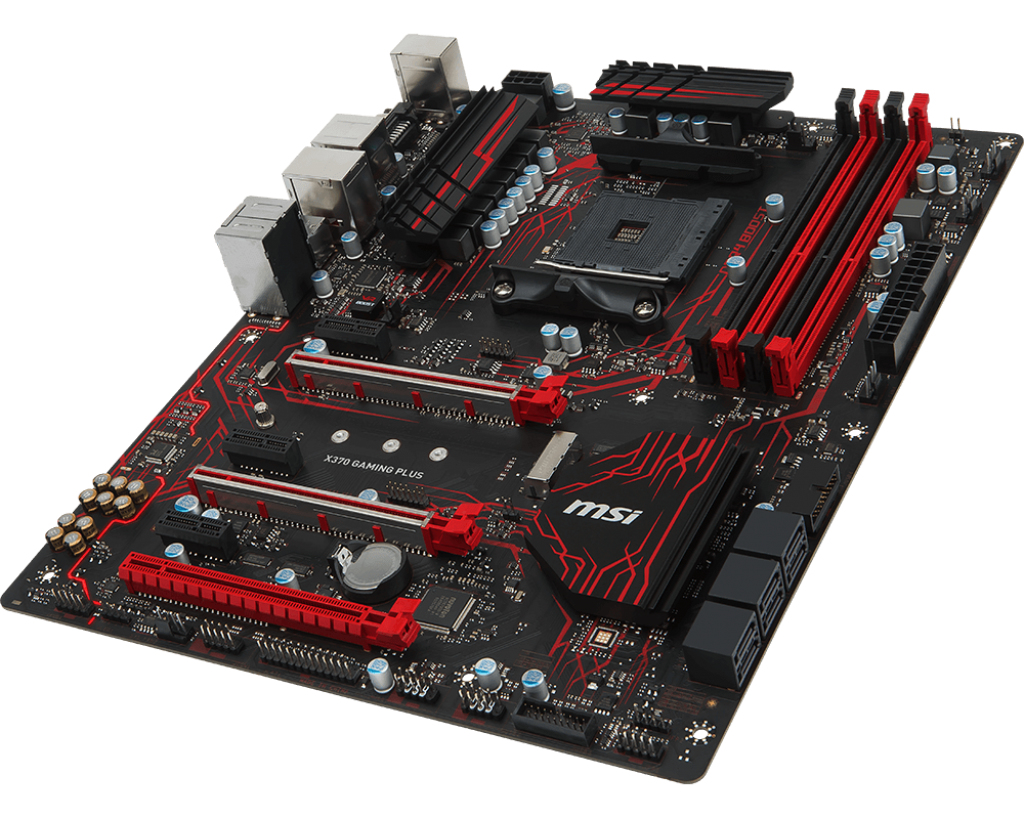

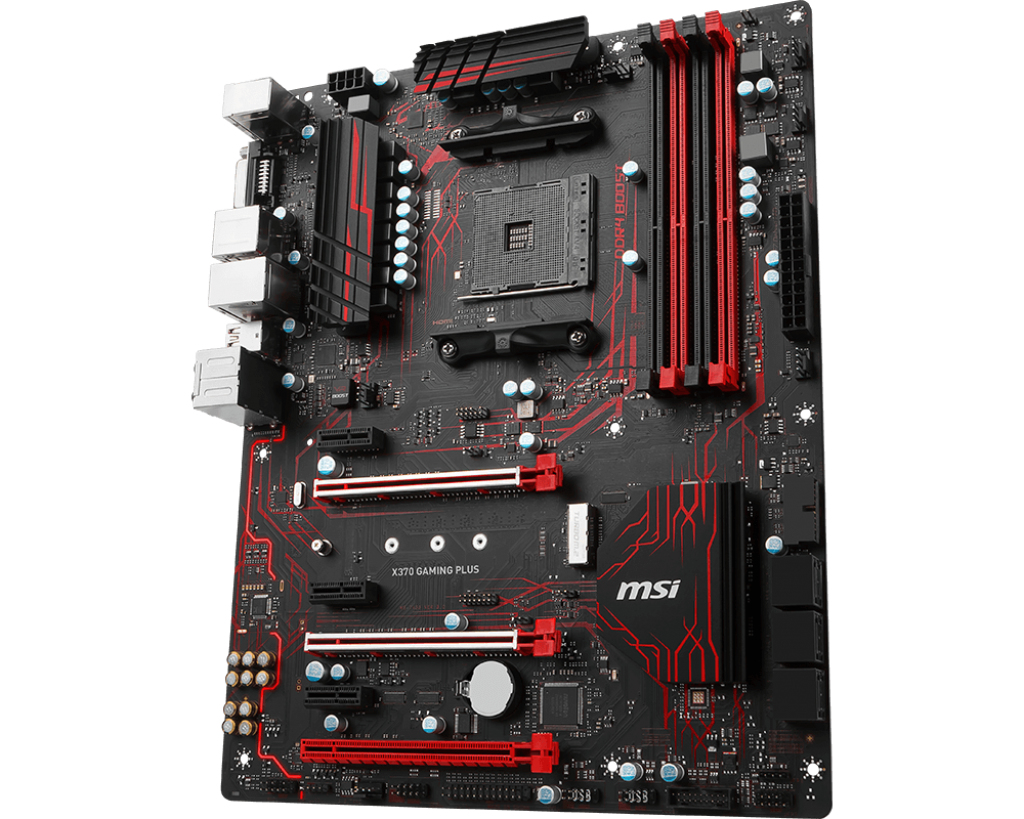

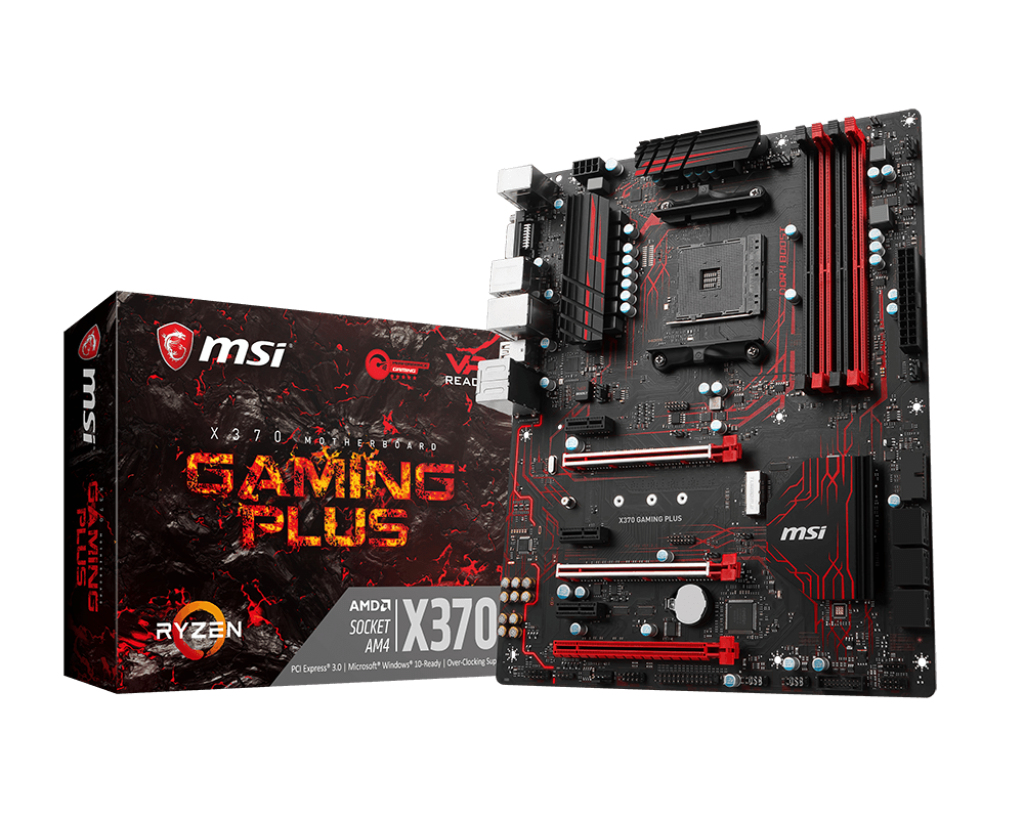

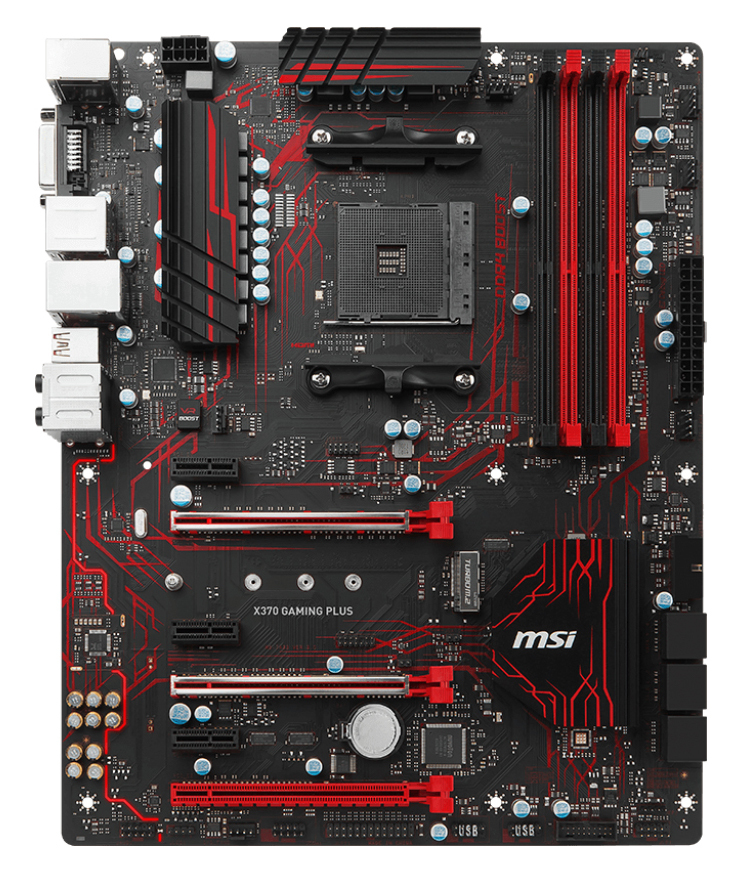

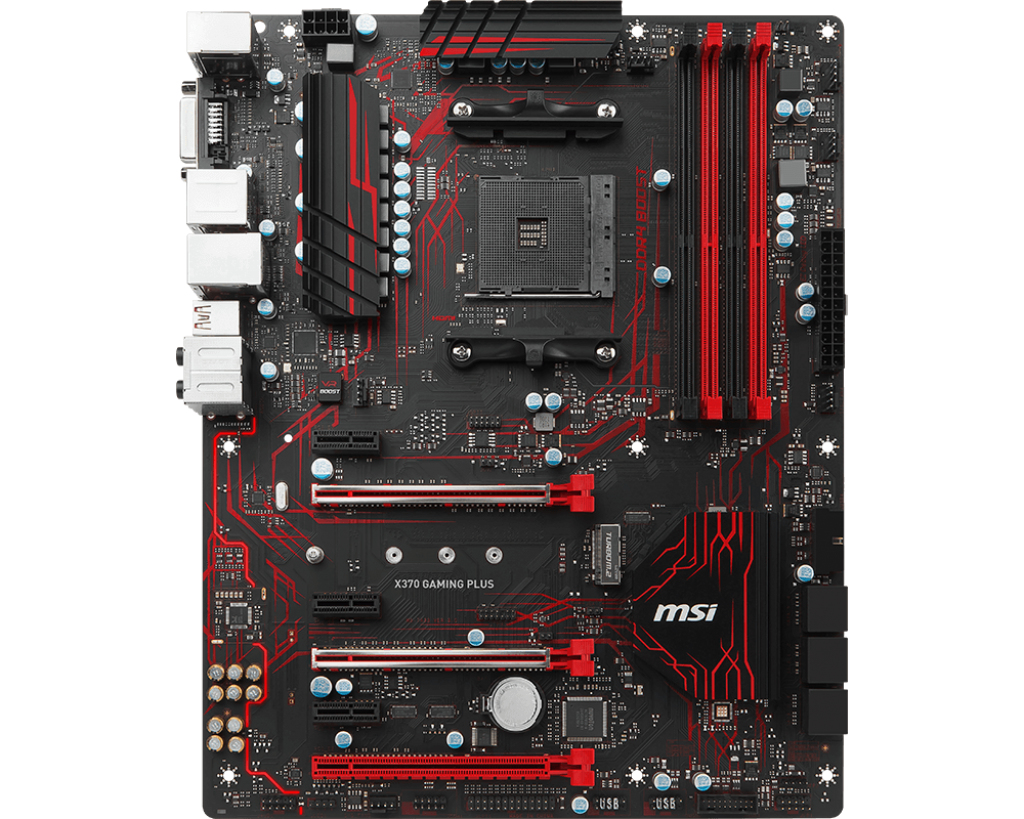

MSI X370 GAMING PLUS

MSI X370 GAMING PLUS

Model X370 GAMING PLUSPart no. 7A33-011REAN 824142145272

65 specifications
  • Processor manufacturerAMD
  • Supported memory typesDDR4-SDRAM
  • RAID levels0, 1, 10
  • Maximum resolution2560 x 1600 pixels
  • USB 2.0 connectors2
  • Ethernet LANYes
See all specifications

Overview

Processor manufacturer
AMD
Supported memory types
DDR4-SDRAM
RAID levels
0, 1, 10
Maximum resolution
2560 x 1600 pixels
USB 2.0 connectors
2
Ethernet LAN
Yes
Brand
MSI
Category
Motherboard
Model
X370 GAMING PLUS
Part numbers
7A33-011R, 911-7A33-015, X370 GAMING PLUS
EAN / UPC
824142145272, 4719072517113
Also known as
MSI X370 GAMING PLUS AMD X370 Socket AM4 ATX

Specifications

65 specifications in 11 groups

Processor

Processor manufacturerAMD
Processor socketSocket AM4
Compatible processor seriesAMD A, AMD Athlon, AMD Athlon™ X4, AMD Ryzen 2000 Series, AMD Ryzen 3000 Series
Maximum number of SMP processors1

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityECC & Non-ECC
Supported memory clock speeds1866,2133,2400,2667,2933,3200 MHz
Maximum internal memory64 GB

Storage controllers

RAID levels0, 1, 10

Graphics

Parallel processing technology support2-Way CrossFireX, 3-Way CrossFireX
Maximum resolution2560 x 1600 pixels

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
Number of SATA III connectors6
Number of SATA II connectors0
Number of Parallel ATA connectors0
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors4
Chassis intrusion connectorYes
EPS power connector (8-pin)Yes
Parallel connectorYes
Serial port headers1
TPM connectorYes

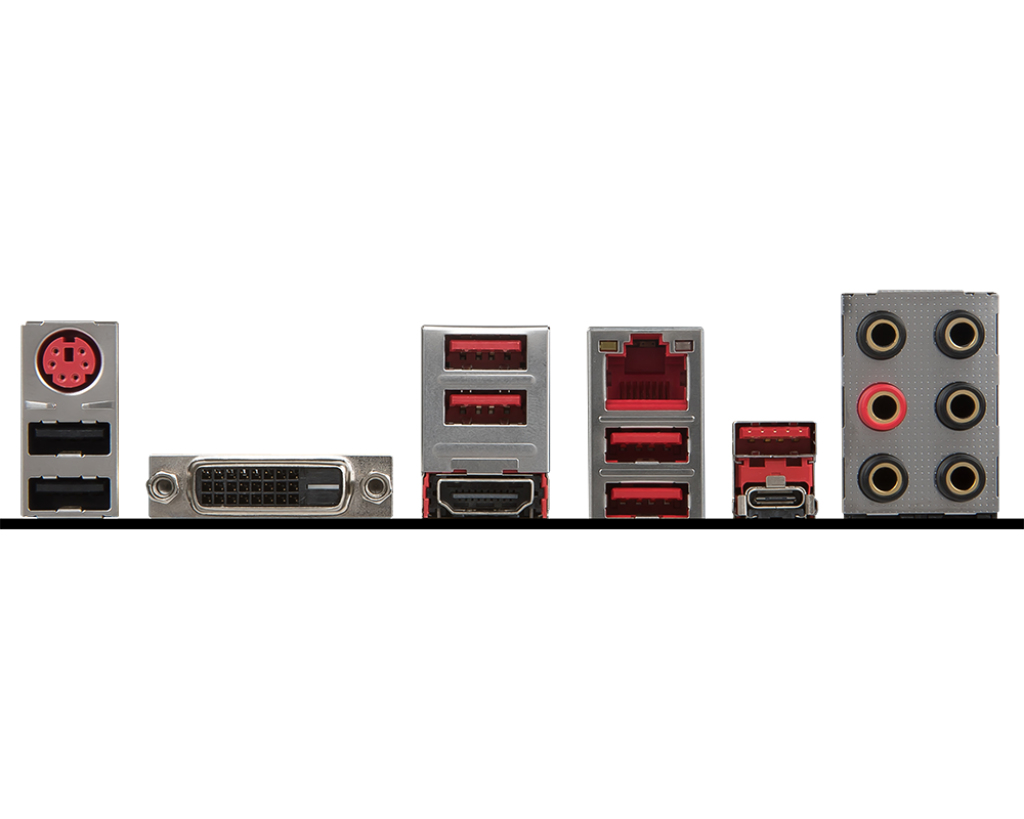

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity1
HDMI version1.4
DVI-D ports quantity1

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111H

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyAMD
Motherboard chipsetAMD X370
Audio chipRealtek ALC892
Audio output channels7.1 channels
PC health monitoringFan, Temperature
Power source typeATX
Number of mounting holes9

Expansion slots

PCI Express x1 (Gen 2.x) slots3
PCI Express x16 (Gen 2.x) slots1
PCI Express x16 (Gen 3.x) slots2
Number of M.2 (M) slots1

BIOS

BIOS typeUEFI AMI
BIOS memory size128 Mbit
ACPI version5.0
Clear CMOS jumperYes

Weight & dimensions

Width304 mm
Depth243 mm
