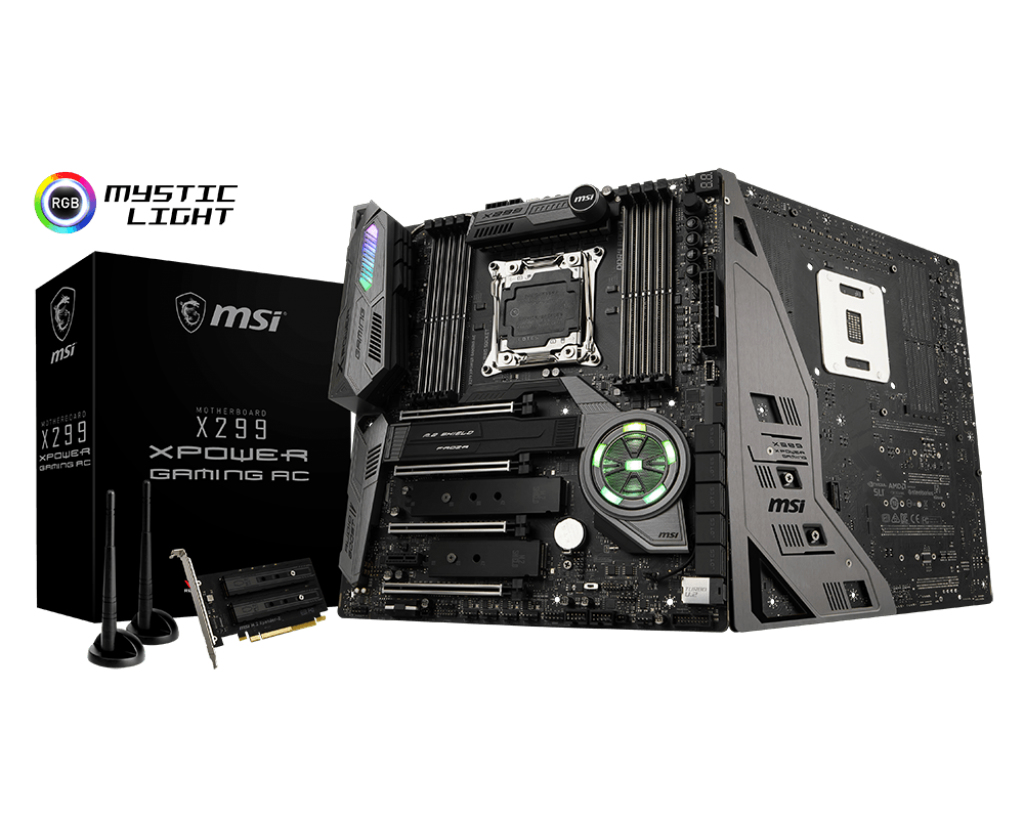

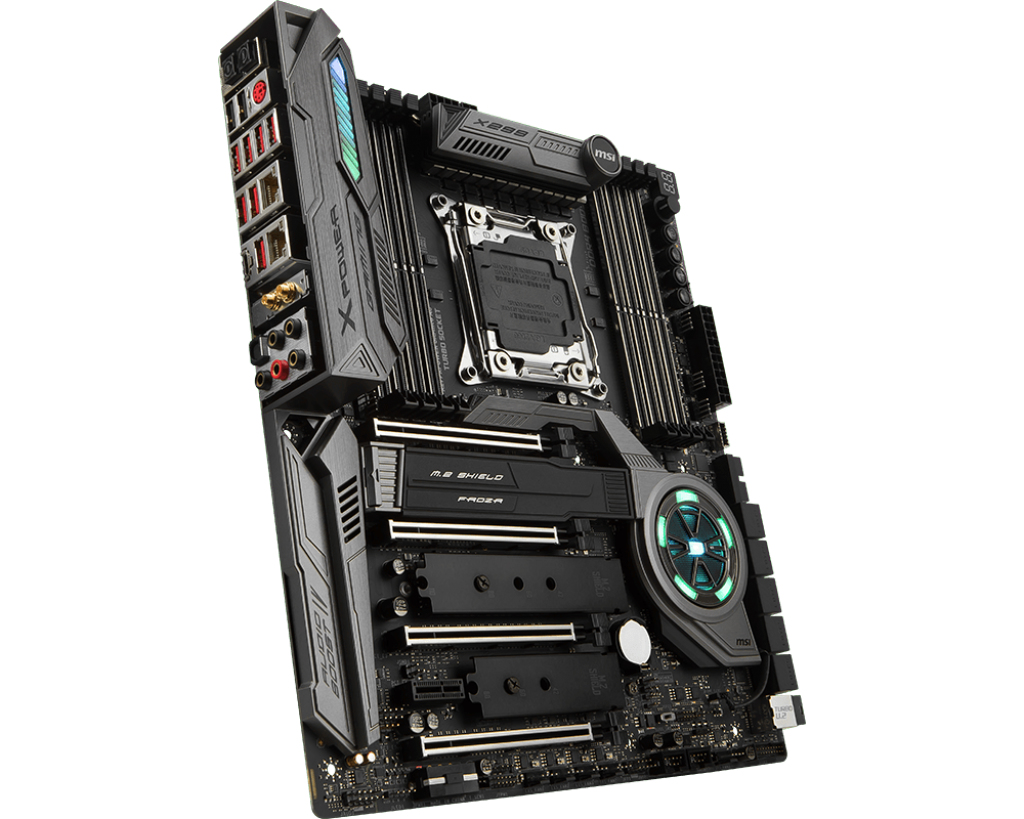

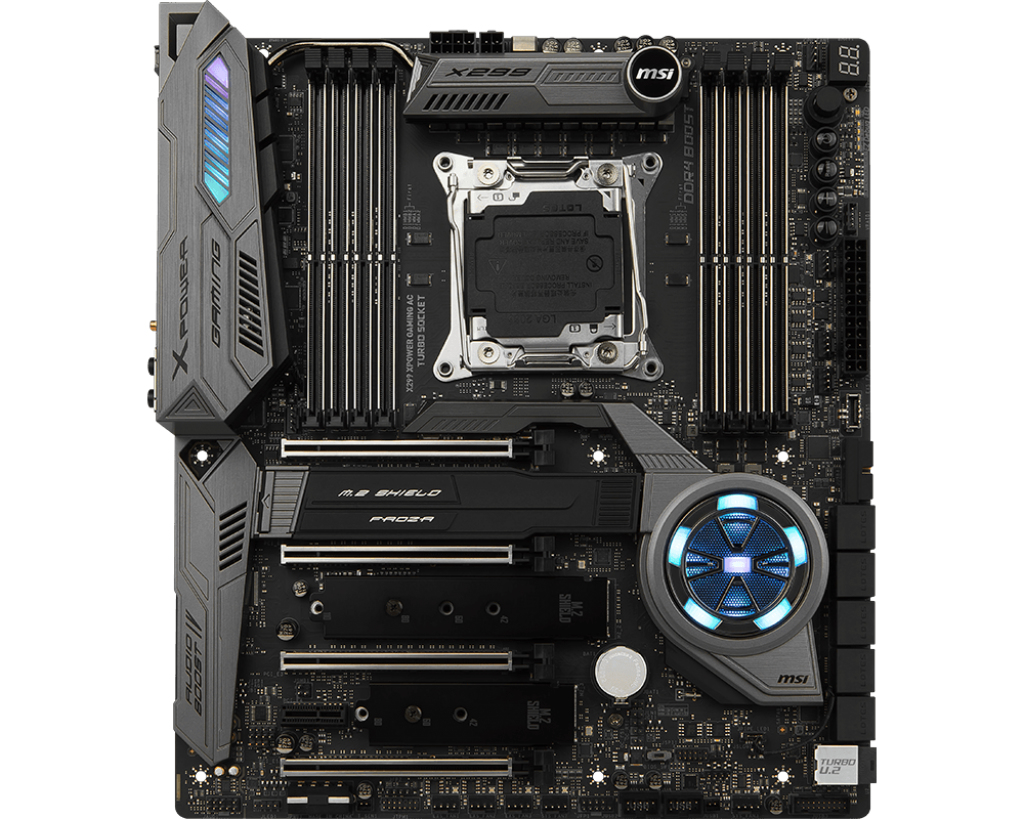

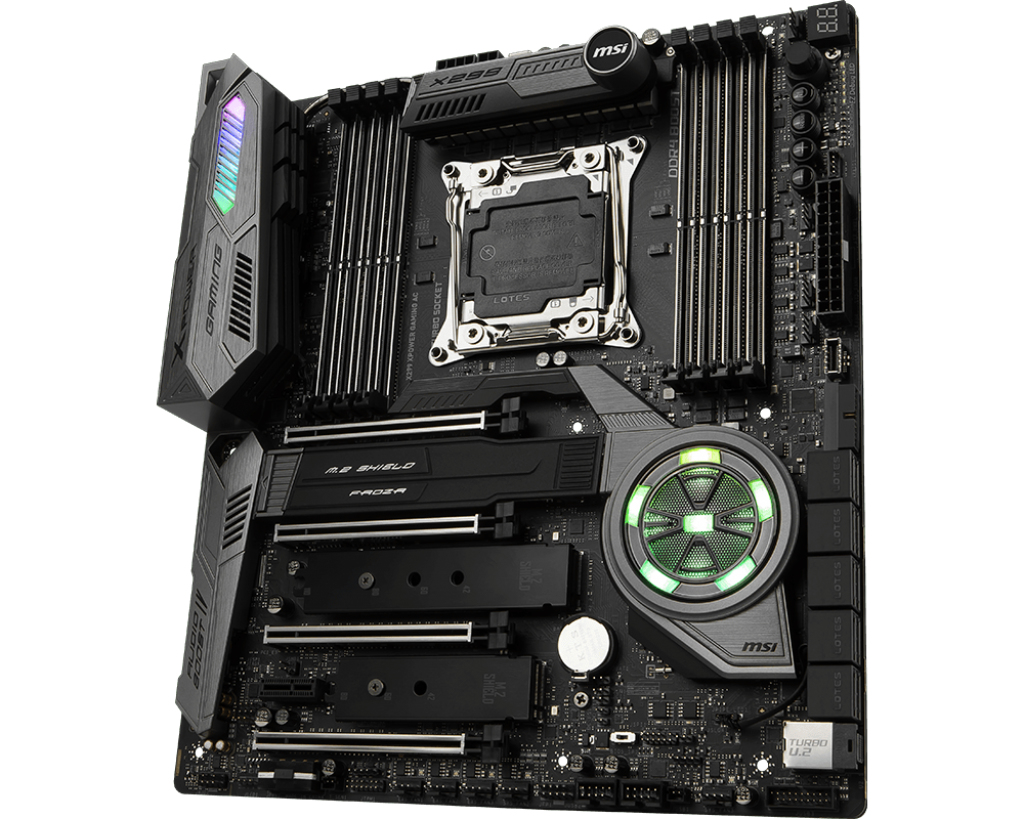

MSI X299 XPOWER GAMING AC

MSI X299 XPOWER GAMING AC

Model X299 XPOWER GAMING ACPart no. 7A91-001REAN 824142148655

70 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
  • RAID levels0, 1, 5, 10
  • Parallel processing technology support2-Way SLI, CrossFire
  • USB 2.0 connectors2
  • Ethernet LANYes
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
RAID levels
0, 1, 5, 10
Parallel processing technology support
2-Way SLI, CrossFire
USB 2.0 connectors
2
Ethernet LAN
Yes
Brand
MSI
Category
Motherboard
Model
X299 XPOWER GAMING AC
Part number
7A91-001R
EAN / UPC
824142148655, 4719072525958
Also known as
MSI X299 XPOWER GAMING AC Intel® X299 LGA 2066 (Socket R4) Extended ATX

Specifications

70 specifications in 14 groups

Processor

Processor manufacturerIntel
Processor socketLGA 2066 (Socket R4)
Compatible processor seriesIntel® Core™ X-series
Maximum number of SMP processors1

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots8
Memory slots typeDIMM
Memory channelsQuad-channel
Supported memory clock speeds2133,2400,2667,2800,2933,3000,3200,3333,3400,3466,3600,3733,3800,3866,4000,4133,4200,4266,4333,4400,4500 MHz
Maximum internal memory128 GB

Storage controllers

RAID levels0, 1, 5, 10

Graphics

Parallel processing technology support2-Way SLI, CrossFire

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
Number of SATA III connectors10
Number of SATA II connectors0
Number of Parallel ATA connectors0
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors4
EPS power connector (8-pin)Yes
12V power connectorYes
TPM connectorYes

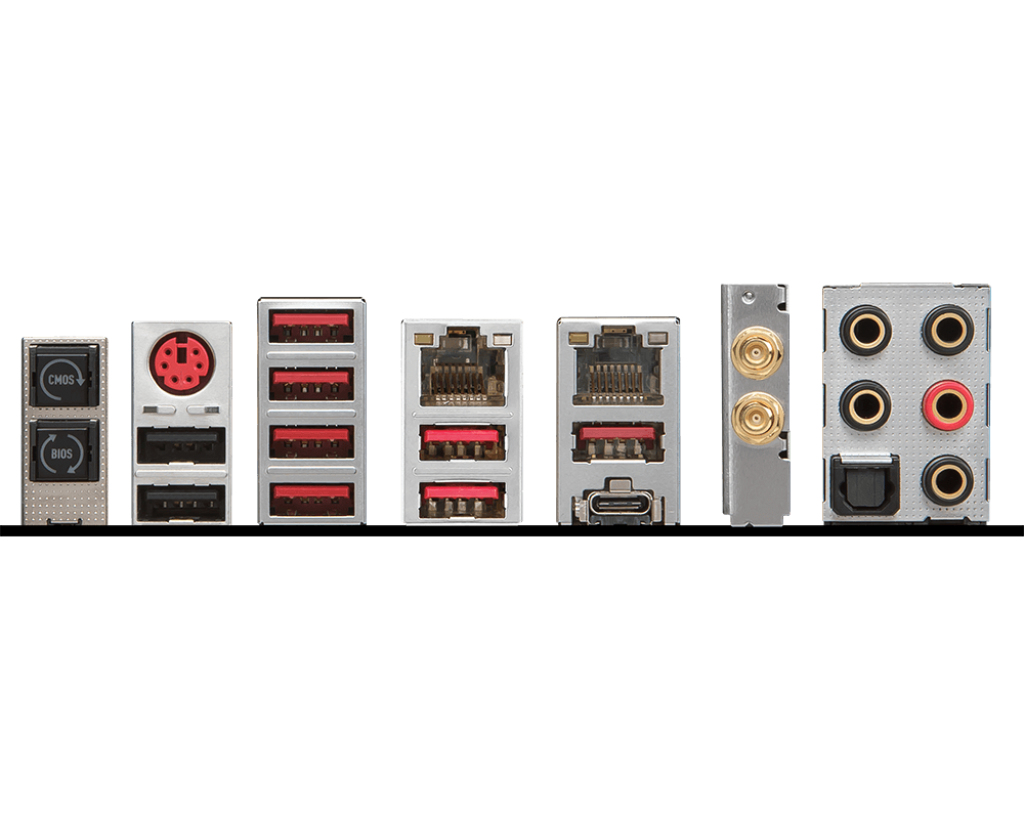

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity6
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
Ethernet LAN (RJ-45) ports2
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity0
DVI-D ports quantity0
S/PDIF out portYes

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerIntel® I211, Intel I219V
Wi-FiYes
Wi-Fi standards802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
BluetoothYes
Bluetooth version4.2

Features

Component forPC
Motherboard form factorExtended ATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® X299
Audio chipRealtek ALC1220
Audio output channels7.1 channels
PC health monitoringCPU, Fan, Temperature
Power source typeATX

Expansion slots

PCI Express x1 (Gen 3.x) slots1
PCI Express x16 (Gen 3.x) slots4
Number of M.2 (M) slots2

BIOS

BIOS typeUEFI AMI
BIOS memory size256 Mbit
ACPI version6.0
Clear CMOS jumperYes
Clear CMOS buttonYes

Processor special features

Intel Extreme Memory Profile (XMP)Yes

Weight & dimensions

Width305 mm
Depth272 mm

Packaging content

Cables includedSATA
ManualYes
Drivers includedYes

Other features

Quick installation guideYes
Number of M.2 (E) slots1
