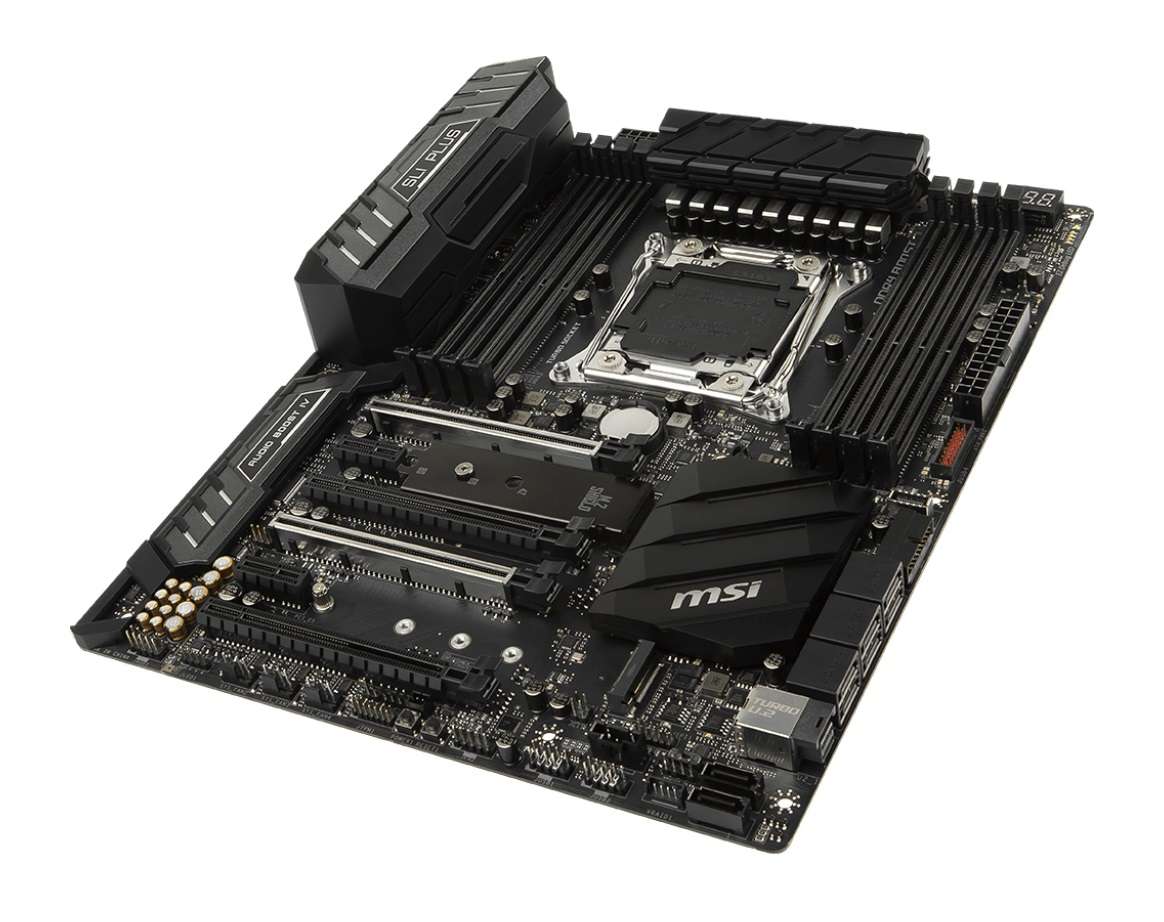

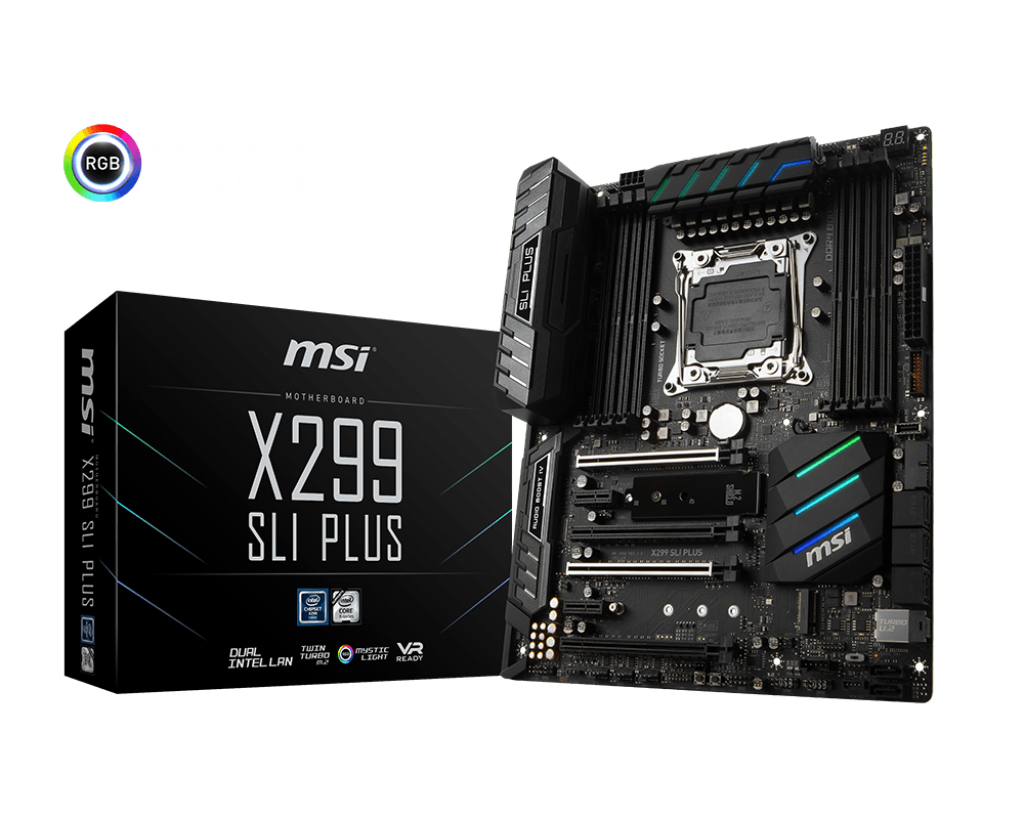

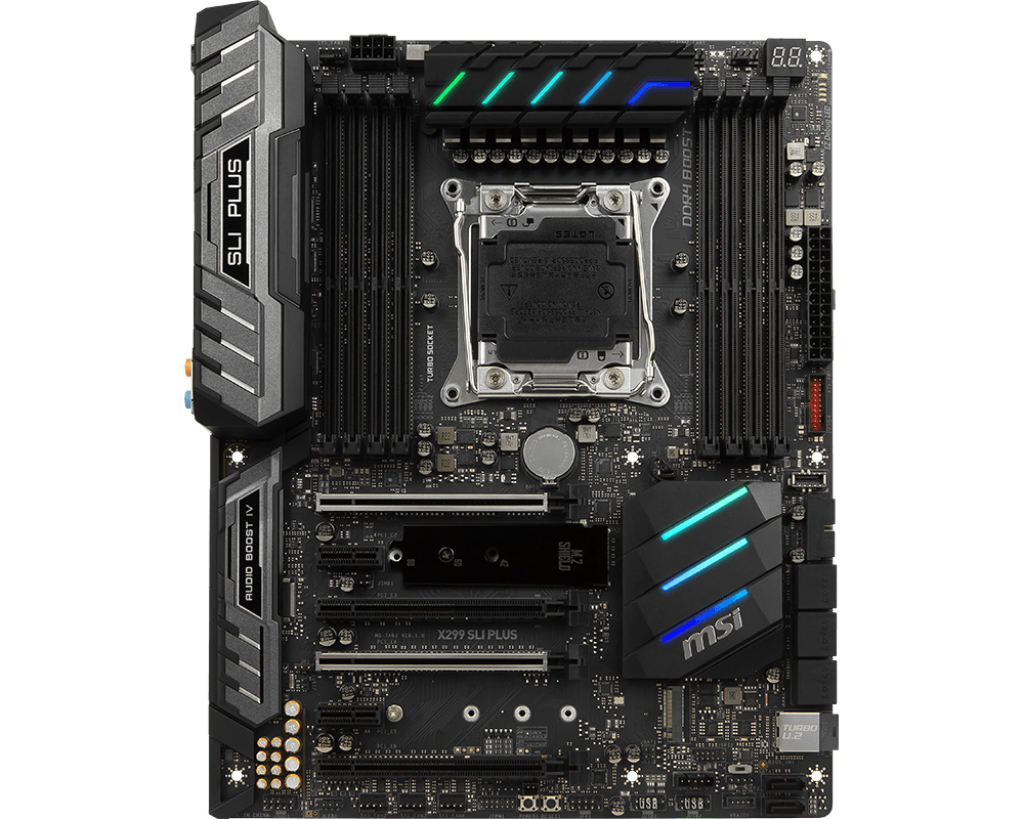

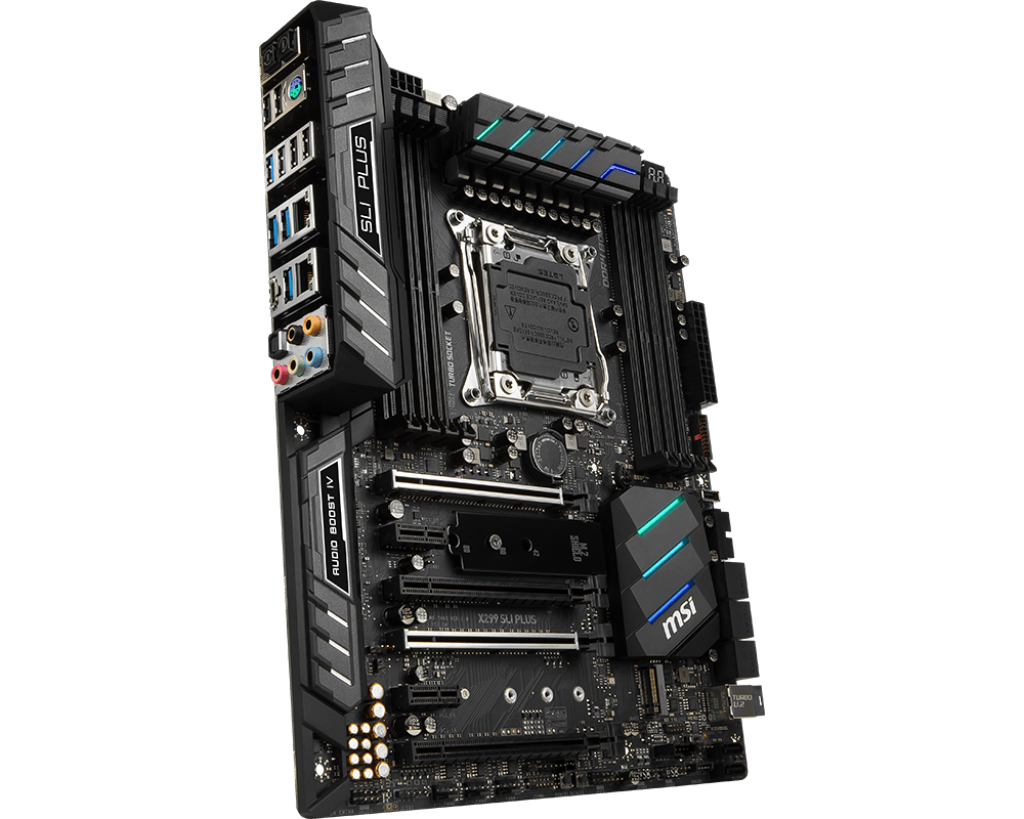

MSI X299 SLI PLUS

MSI X299 SLI PLUS

Model X299 SLI PLUSPart no. 7A93-001REAN 824142148600

66 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
  • RAID levels0, 1, 5, 10
  • Parallel processing technology support2-Way SLI, CrossFire
  • USB 2.0 connectors2
  • USB 2.0 ports quantity4
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
RAID levels
0, 1, 5, 10
Parallel processing technology support
2-Way SLI, CrossFire
USB 2.0 connectors
2
USB 2.0 ports quantity
4
Brand
MSI
Category
Motherboard
Model
X299 SLI PLUS
Part numbers
7A93-001R, 911-7A93-006, X299
EAN / UPC
824142148600, 4719072525705
Also known as
MSI X299 SLI PLUS Intel® X299 LGA 2066 (Socket R4) ATX

Specifications

66 specifications in 14 groups

Processor

Processor manufacturerIntel
Processor socketLGA 2066 (Socket R4)
Compatible processor seriesIntel® Core™ i7, Intel® Core™ i7 Extreme Edition
Maximum number of SMP processors1
Intel Core i3/i5/i7/i9 seriesi7-3xxx, i7-4xxx, i7-5xxx, i7-6xxx, i7-7xxx

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots8
Memory slots typeDIMM
Memory channelsQuad-channel
Supported memory clock speeds2133,2400,2667,2800,2933,3000,3200,3333,3400,3466,3600,3733,3800,3866,4000,4133,4200,4266,4400,4500 MHz
Maximum internal memory128 GB

Storage controllers

RAID levels0, 1, 5, 10

Graphics

Parallel processing technology support2-Way SLI, CrossFire

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
Number of SATA III connectors8
Number of SATA II connectors0
Number of Parallel ATA connectors0
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors4
Chassis intrusion connectorYes
EPS power connector (8-pin)Yes
TPM connectorYes
Thunderbolt headers1

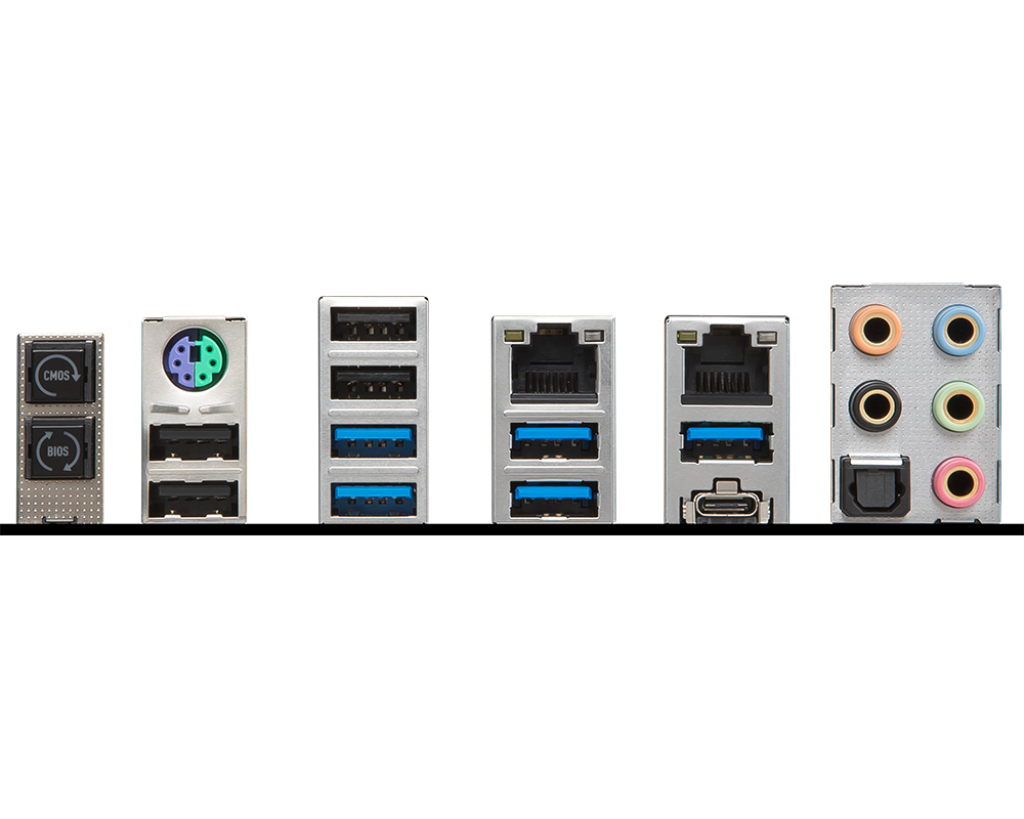

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
Ethernet LAN (RJ-45) ports2
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity0
DVI-D ports quantity0
S/PDIF out portYes

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerIntel® I211, Intel I219V

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® X299
Audio chipRealtek ALC1220
Audio output channels7.1 channels
Power source typeATX
Number of mounting holes9

Expansion slots

PCI Express x1 (Gen 3.x) slots2
PCI Express x16 (Gen 3.x) slots4
Number of M.2 (M) slots2

BIOS

BIOS typeUEFI AMI
BIOS memory size256 Mbit
ACPI version6.0
Clear CMOS jumperYes
Clear CMOS buttonYes

Processor special features

Intel Extreme Memory Profile (XMP)Yes

Weight & dimensions

Width305 mm
Depth243 mm

Packaging content

Cables includedSATA
Drivers includedYes

Other features

Quick installation guideYes
