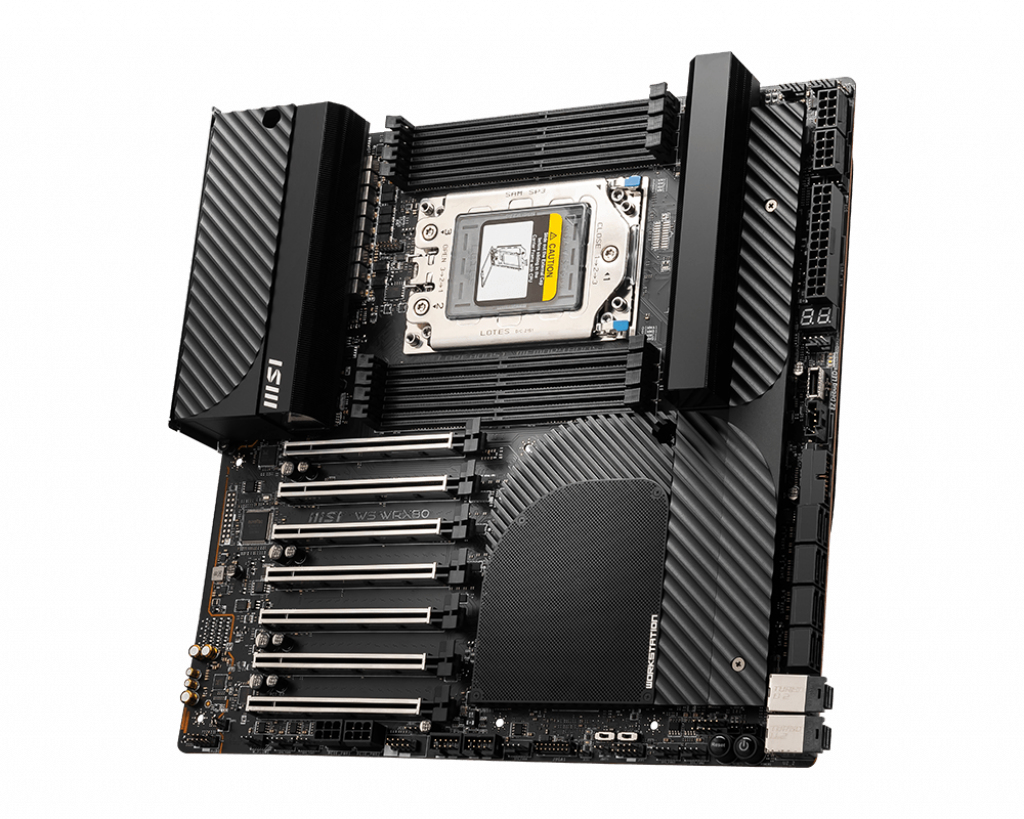

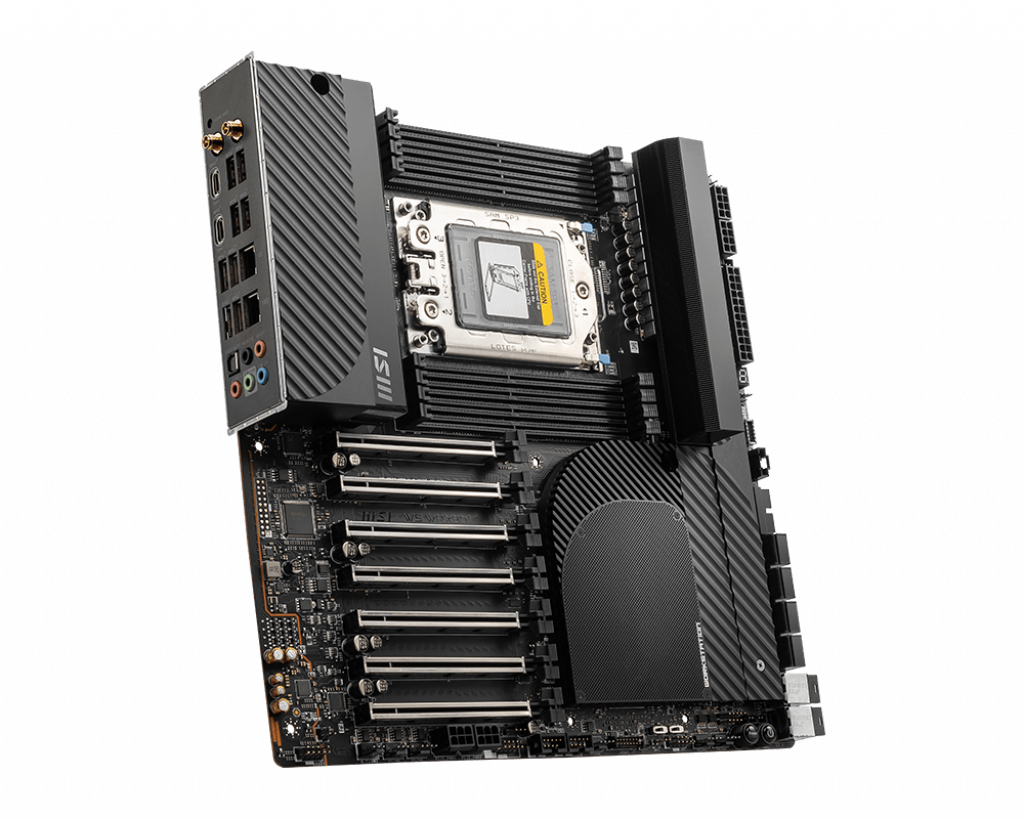

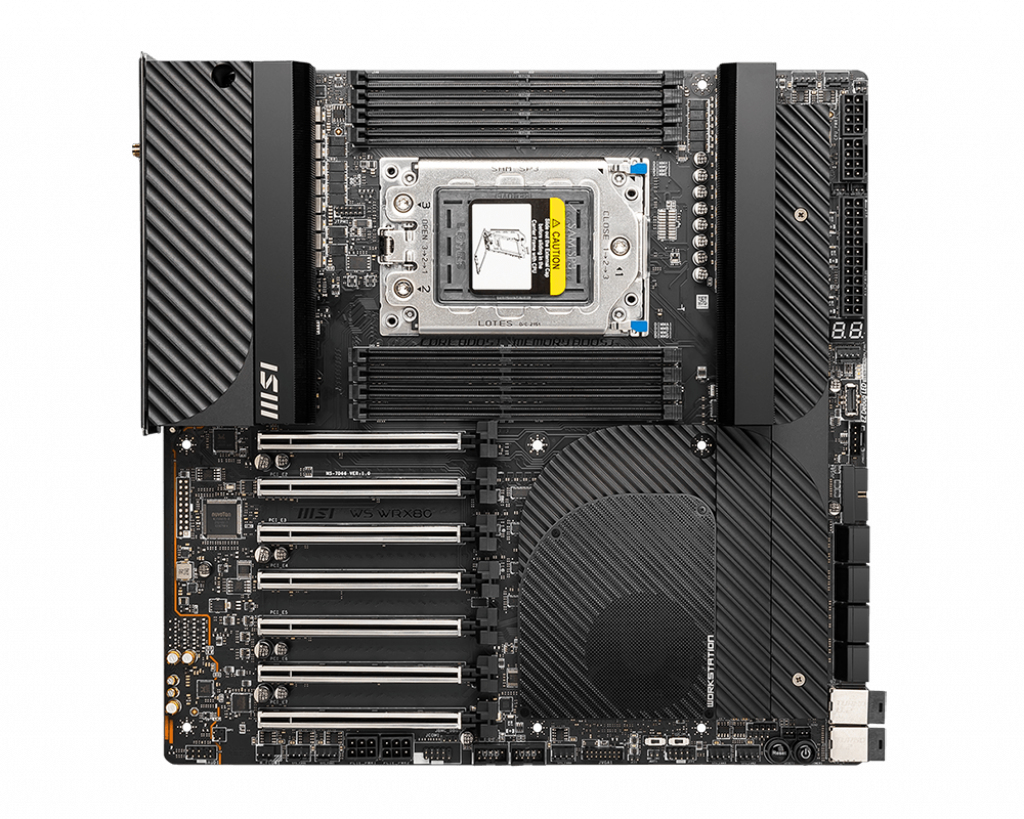

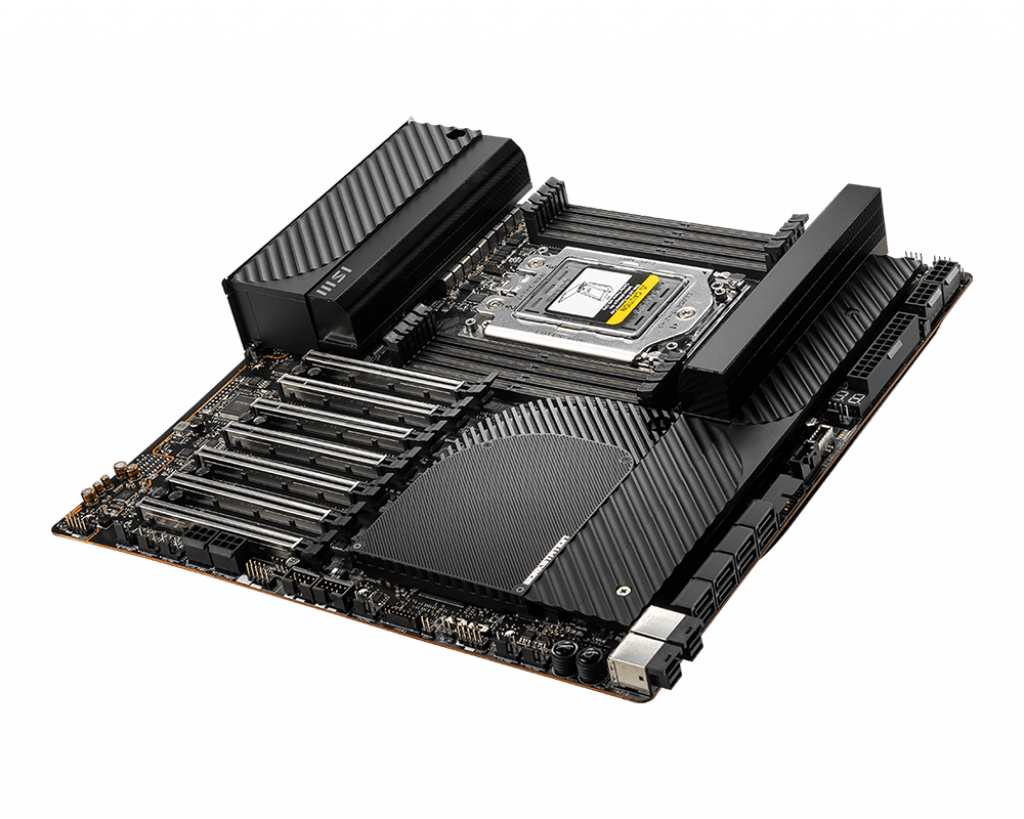

WS WRX80
Model WS WRX80
48 specifications
- SpeedWi-Fi 6E (802.11ax)
- Processor manufacturerAMD
- Supported memory typesDDR4-SDRAM
- Supported storage drive interfacesMicro SATA III
- Parallel processing technology supportCrossfire
- USB 2.0 connectors4
Overview
- Speed
- Wi-Fi 6E (802.11ax)
- Processor manufacturer
- AMD
- Supported memory types
- DDR4-SDRAM
- Supported storage drive interfaces
- Micro SATA III
- Parallel processing technology support
- Crossfire
- USB 2.0 connectors
- 4
- Brand
- MSI
- Category
- Motherboard
- Model
- WS WRX80
- Part number
- WS WRX80
- Also known as
- MSI WS WRX80 motherboard AMD WRX80 Socket sWRX8 Extended ATX
Specifications
48 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket sWRX8 |
| Compatible processor series | AMD Ryzen Threadripper PRO 3000 WX-Series |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Memory slots type | SO-DIMM |
| Memory channels | Octa-channel |
| Supported memory clock speeds | 2133,2400,2666,3200 MHz |
| Maximum internal memory | 2 TB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | Micro SATA III |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | Crossfire |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors | 8 |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 6 |
| EPS power connector (8-pin) | Yes |
| Serial port headers | 1 |
| TPM connector | Yes |

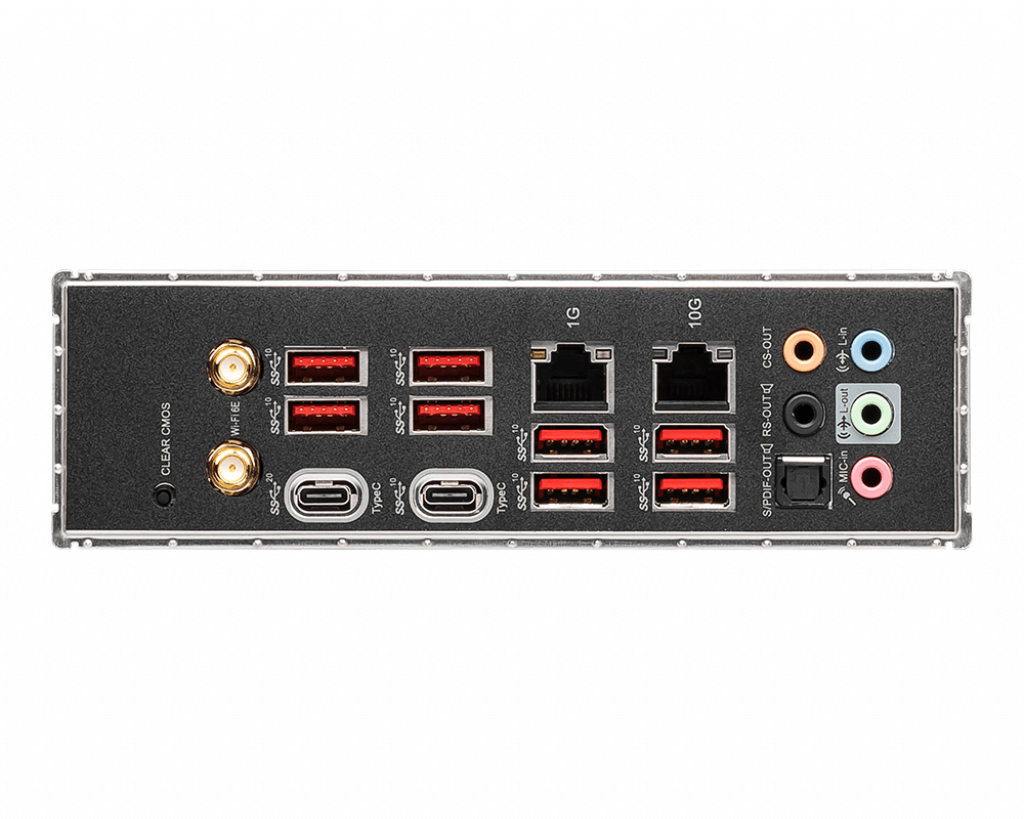

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 8 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet, Gigabit Ethernet |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
Features
| Specification | Value |
|---|---|
| Component for | Workstation |
| Motherboard form factor | Extended ATX |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD WRX80 |
| Audio output channels | 7.1 channels |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 slots | 16 |
| Number of M.2 (M) slots | 2 |
BIOS
| Specification | Value |
|---|---|
| Clear CMOS button | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 310 mm |
