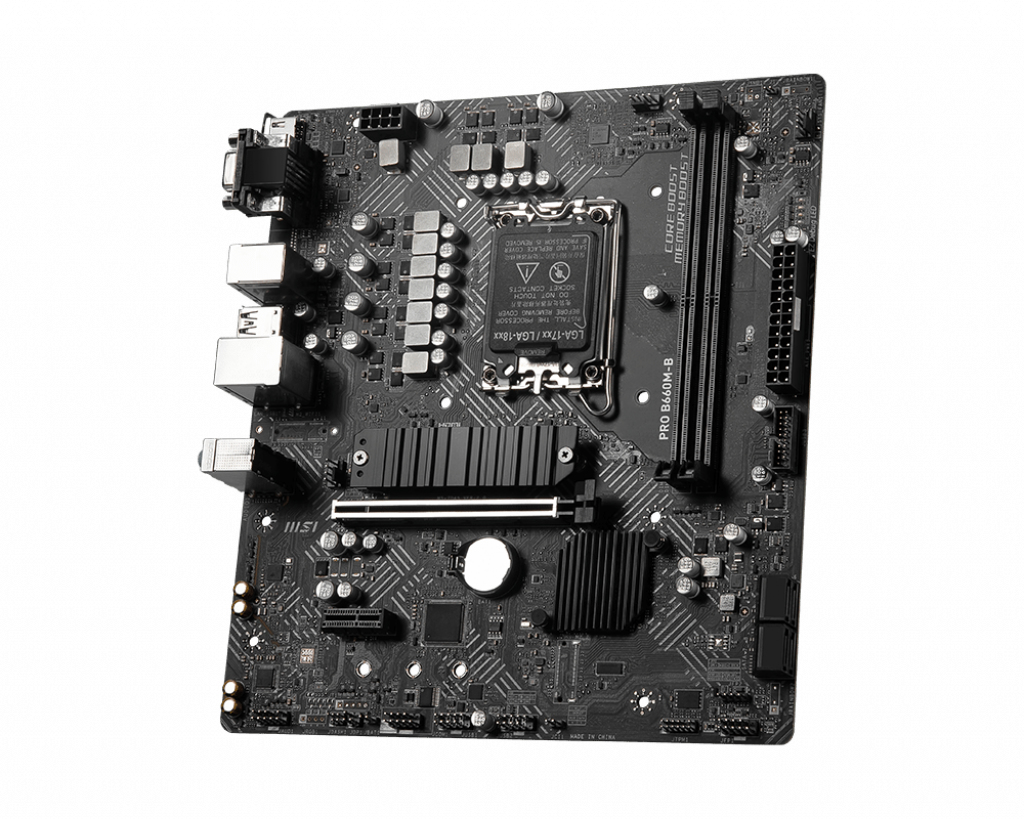

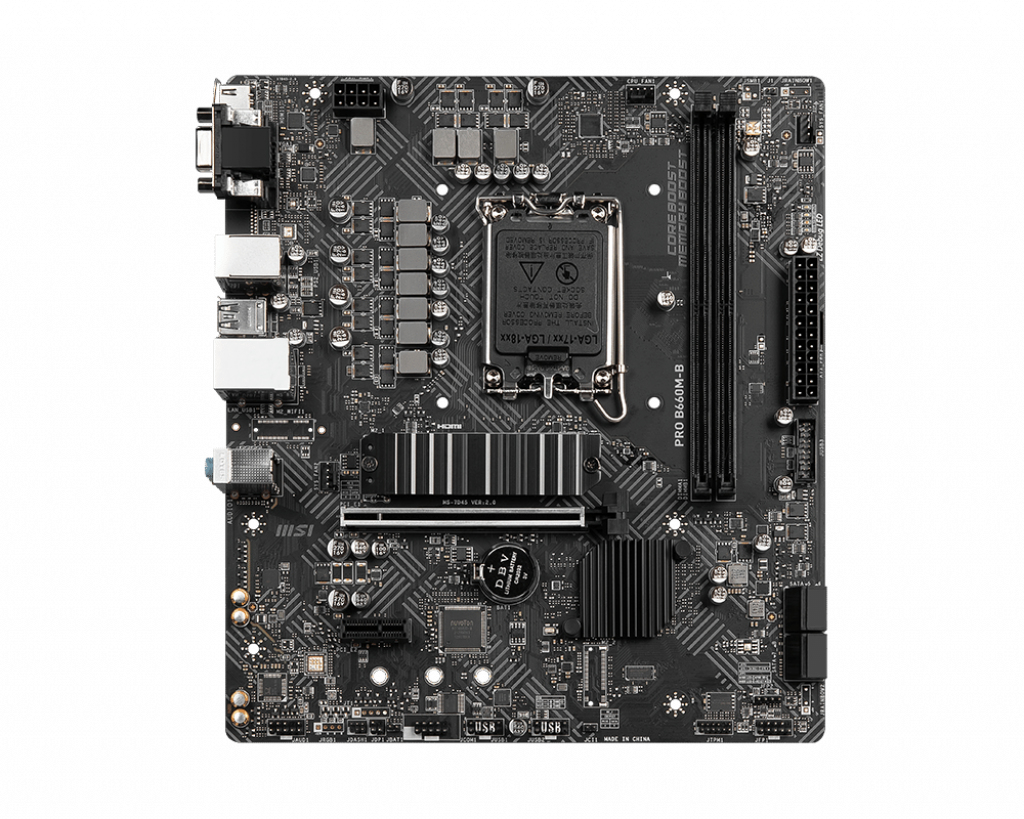

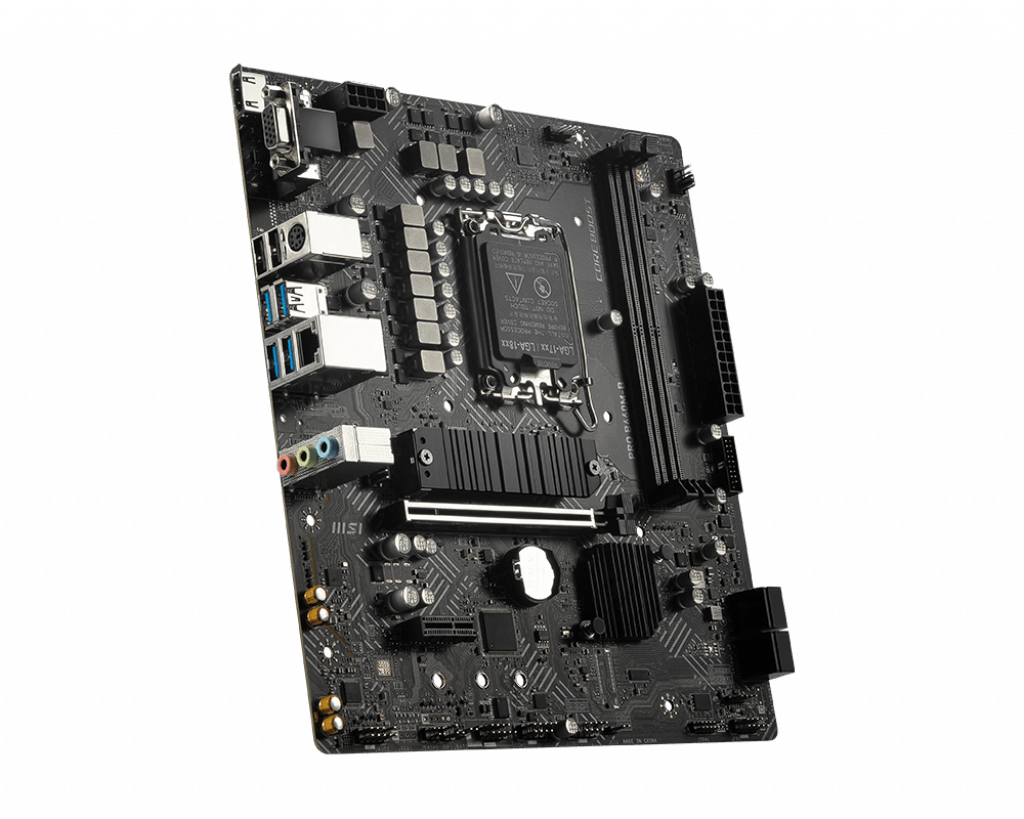

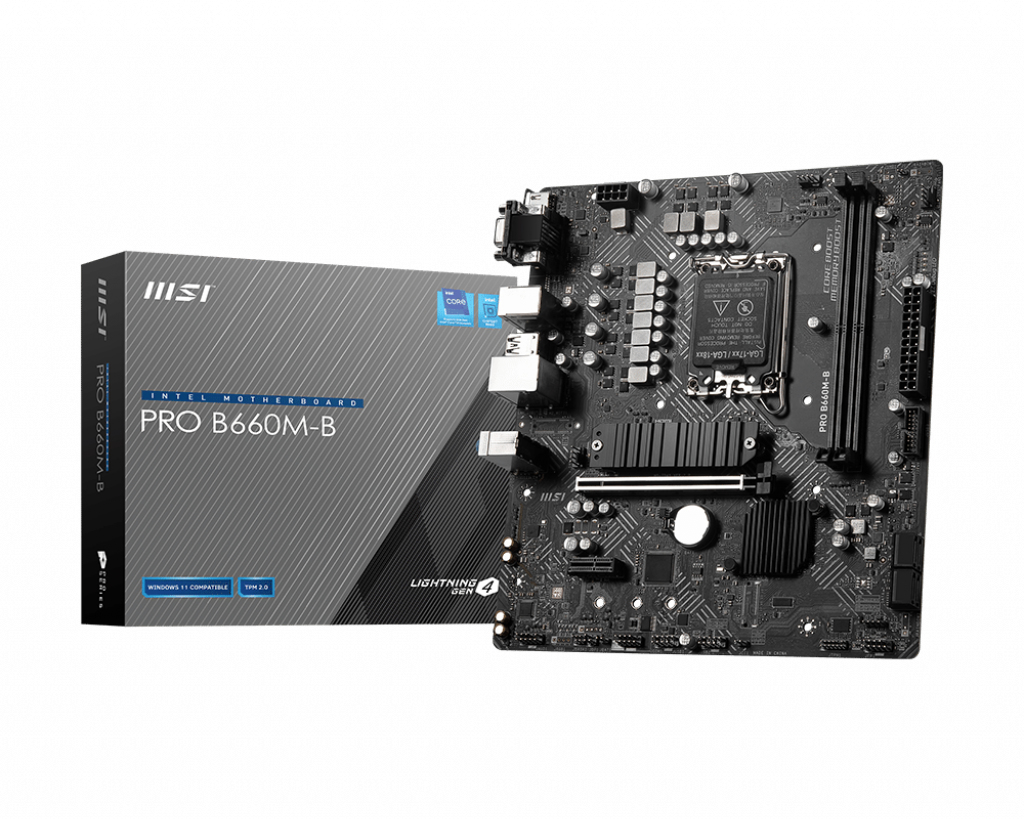

PRO B660M-B
Model PRO B660M-BPart no. 7D45-003REAN 4719072942724
33 specifications
- Processor manufacturerIntel
- Supported memory typesDDR5-SDRAM
- RAID supportYes
- DirectX version12.0
- USB 2.0 connectors4
- USB 2.0 ports quantity2
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR5-SDRAM
- RAID support
- Yes
- DirectX version
- 12.0
- USB 2.0 connectors
- 4
- USB 2.0 ports quantity
- 2
- Brand
- MSI
- Category
- Motherboard
- Model
- PRO B660M-B
- Part numbers
- 7D45-003R, PRO B660M-B
- EAN / UPC
- 4719072942724
- Also known as
- MSI PRO B660M-B Intel B660 LGA 1700 micro ATX
Specifications
33 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | AMD Ryzen™ 5, AMD Ryzen™ 7, Intel® Celeron®, Intel® Core™ i3, Intel® Pentium® Gold |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Supported memory clock speed (max) | 4800 MHz |
| Maximum internal memory | 64 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID support | Yes |
| RAID levels | 1 |
Graphics
| Specification | Value |
|---|---|
| DirectX version | 12.0 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 4 |
| Serial port headers | 1 |
| TPM connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| LAN controller | Realtek RTL8125-BG |
| Wi-Fi | No |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Motherboard chipset family | AMD |
| Motherboard chipset | Intel B660 |
| Audio chip | Realtek ALC897 |
| Audio output channels | 8 channels |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
