MSI PH67A-C43 (B3)

MSI PH67A-C43 (B3)

Model PH67A-C43 (B3)Part no. 7673-031REAN 4719072217488

52 specifications
  • Processor manufacturerIntel
  • Number of memory slots4
  • RAID levels0, 1, 5, 10
  • Parallel processing technology supportNot supported
  • USB 2.0 connectors2
  • USB 2.0 ports quantity8
See all specifications

Overview

Processor manufacturer
Intel
Number of memory slots
4
RAID levels
0, 1, 5, 10
Parallel processing technology support
Not supported
USB 2.0 connectors
2
USB 2.0 ports quantity
8
Brand
MSI
Category
Motherboard
Model
PH67A-C43 (B3)
Part number
7673-031R
EAN / UPC
4719072217488
Also known as
MSI PH67A-C43 (B3) LGA 1155 (Socket H2) ATX

Specifications

52 specifications in 12 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1155 (Socket H2)
Compatible processor seriesIntel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7
Processor system buses supported1066,1333 MHz

Memory

Number of memory slots4
Memory channelsDual-channel
Memory voltage1.5 V
Supported memory clock speeds1066,1333 MHz
Maximum internal memory32 GB
Supported memory module capacities1GB, 2GB, 4GB

Storage controllers

RAID levels0, 1, 5, 10

Graphics

Parallel processing technology supportNot supported
On-board graphics cardNo

Internal I/O

USB 2.0 connectors2
Number of SATA connectors6
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
CD/AUX audio inYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors4
Chassis intrusion connectorYes
TPM connectorYes

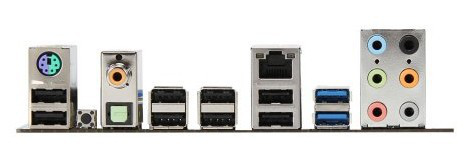

Rear panel I/O ports

USB 2.0 ports quantity8
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity0
DVI-D ports quantity0
Headphone outputs1
Microphone inYes
S/PDIF out portYes

Network

Ethernet interface typeFast Ethernet
LAN controllerRealtek RTL8111E
Networking features10/100/1000 Mbps

Features

Motherboard form factorATX
Audio chipRealtek ALC892
Audio output channels7.1 channels
Power source typeATX
Compatible operating systemsWin 98SE/ME/2000/XP/Vista/7 32Bit

Expansion slots

PCI Express x1 slots3
PCI Express x16 slots1
PCI slots3

BIOS

BIOS typeAMI

Weight & dimensions

Width215 mm
Depth305 mm

Other features

Controller 2nd interface typeSATAIII 6Gb/s
Controller interface typeSATAII 3Gb/s
