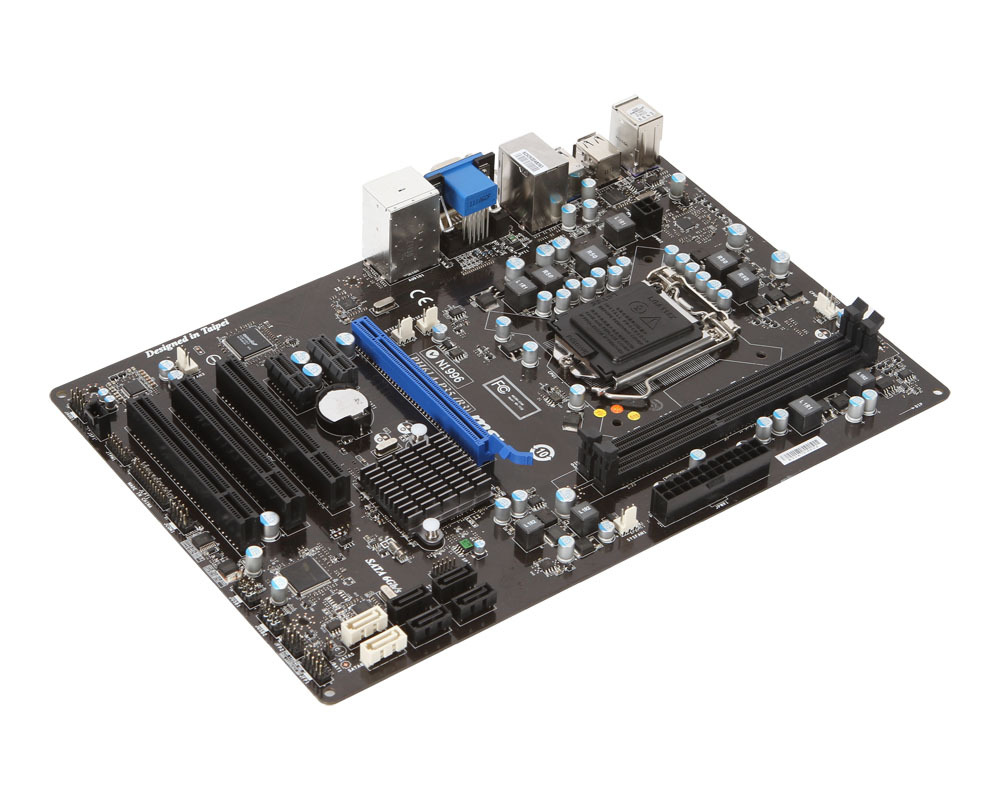

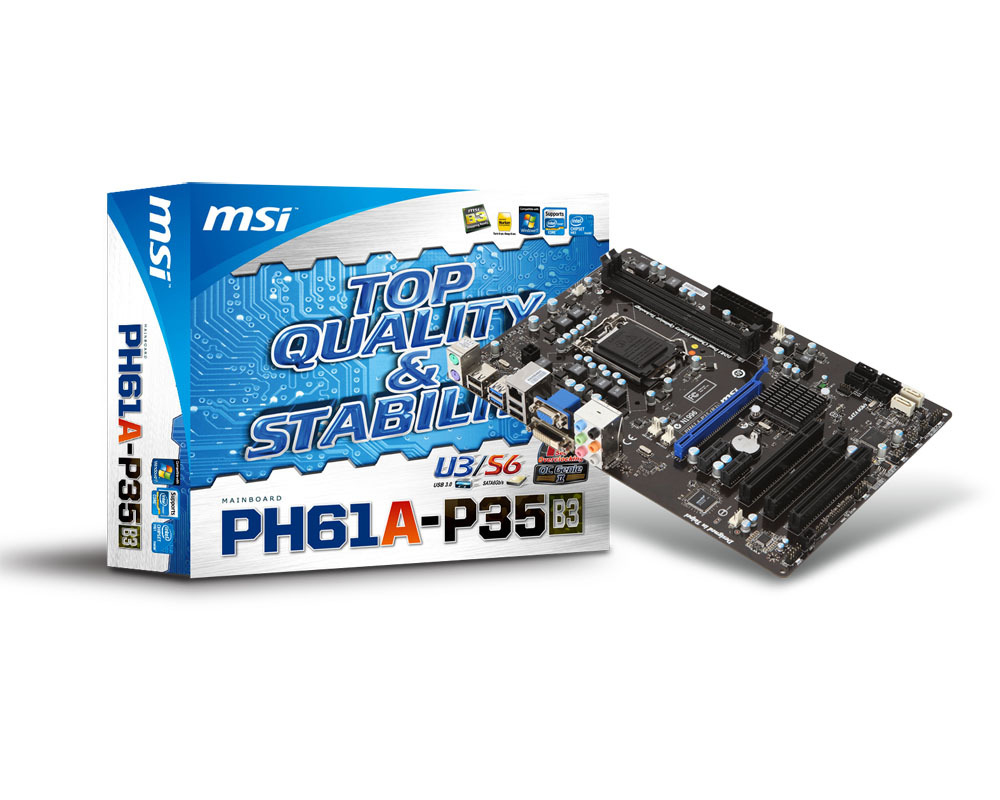

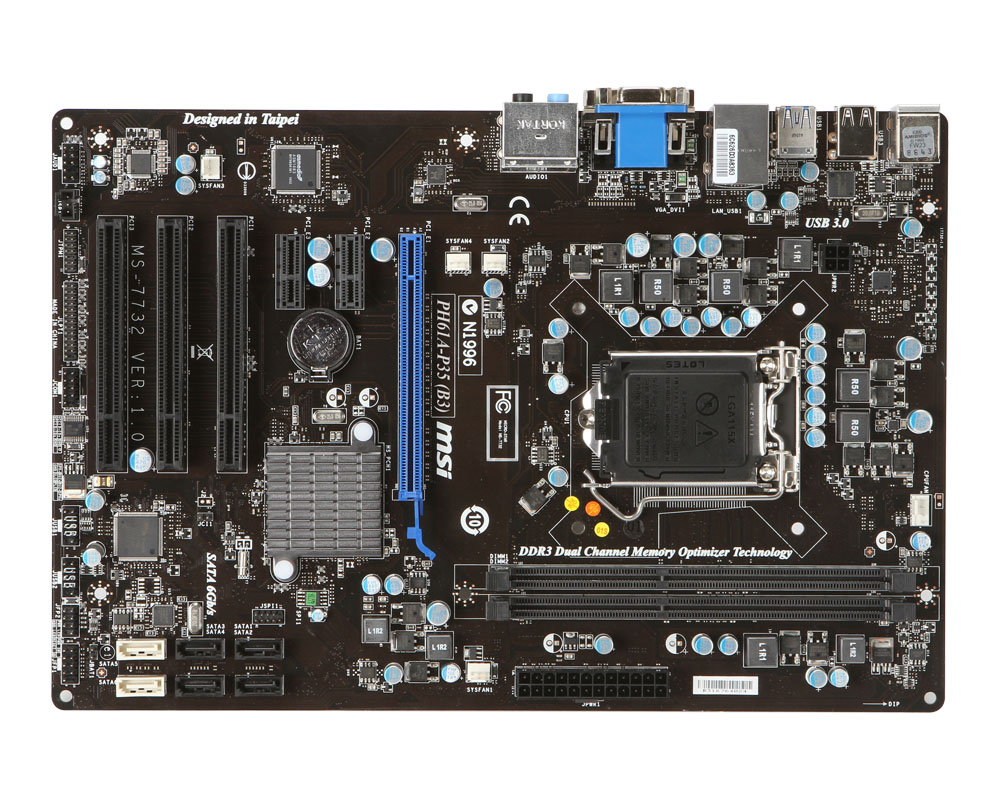

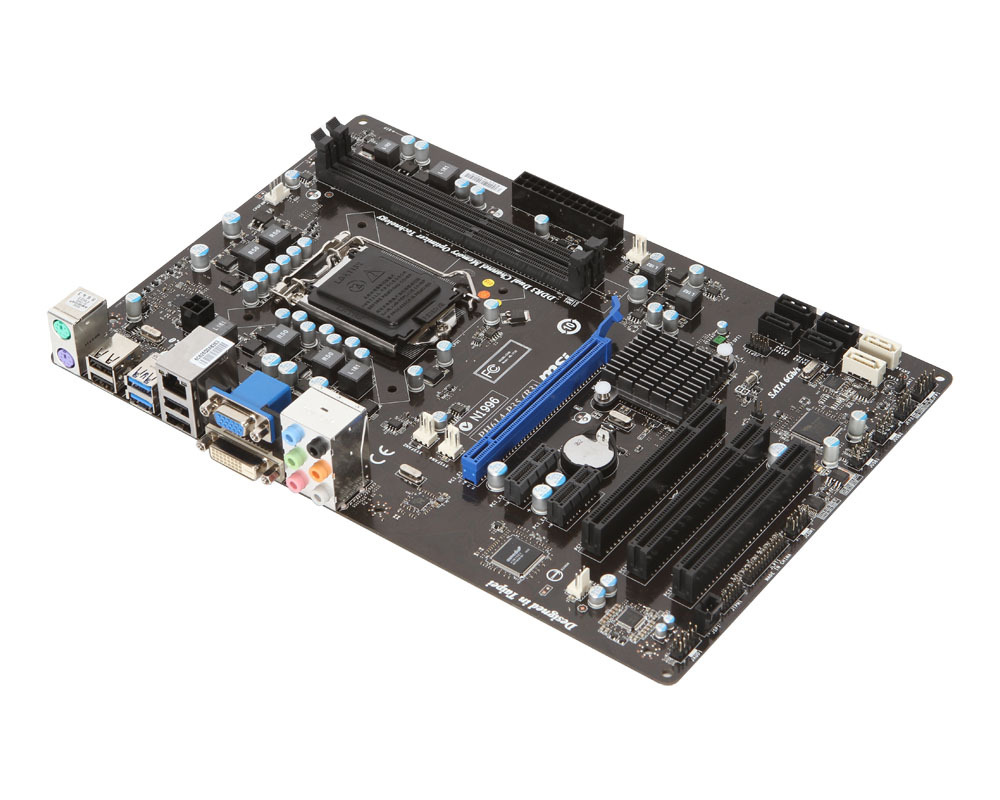

MSI PH61A-P35 (B3)

MSI PH61A-P35 (B3)

Model PH61A-P35 (B3)Part no. 7732-010REAN 816909086171

51 specifications
  • Processor manufacturerIntel
  • Number of memory slots2
  • Maximum graphics card memory1024 MB
  • USB 2.0 ports quantity4
  • Ethernet interface typeFast Ethernet, Gigabit Ethernet
  • Component forPC
See all specifications

Overview

Processor manufacturer
Intel
Number of memory slots
2
Maximum graphics card memory
1024 MB
USB 2.0 ports quantity
4
Ethernet interface type
Fast Ethernet, Gigabit Ethernet
Component for
PC
Brand
MSI
Category
Motherboard
Model
PH61A-P35 (B3)
Part numbers
7732-010R, 601-7732-030, PH61A-P35 (B3), 911-7732-016
EAN / UPC
816909086171, 4719072224592
Also known as
MSI PH61A-P35 (B3) Intel® H61 LGA 1155 (Socket H2) ATX

Specifications

51 specifications in 10 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1155 (Socket H2)
Compatible processor seriesIntel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7

Memory

Number of memory slots2
Memory channelsDual-channel
Memory voltage1.5 V
Supported memory clock speeds1066,1333 MHz
Maximum internal memory16 GB

Graphics

Maximum graphics card memory1024 MB
Parallel processing technology supportNot supported
On-board graphics cardYes

Internal I/O

USB 2.0 connectors2
Number of SATA III connectors2
Number of SATA II connectors4
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
CD/AUX audio inYes
ATX Power connector (24-pin)Yes
Power fan connectorYes
CPU fan connectorYes
Number of chassis fan connectors1
Chassis intrusion connectorYes
Peripheral (Molex) power connectors (4-pin)1
TPM connectorYes

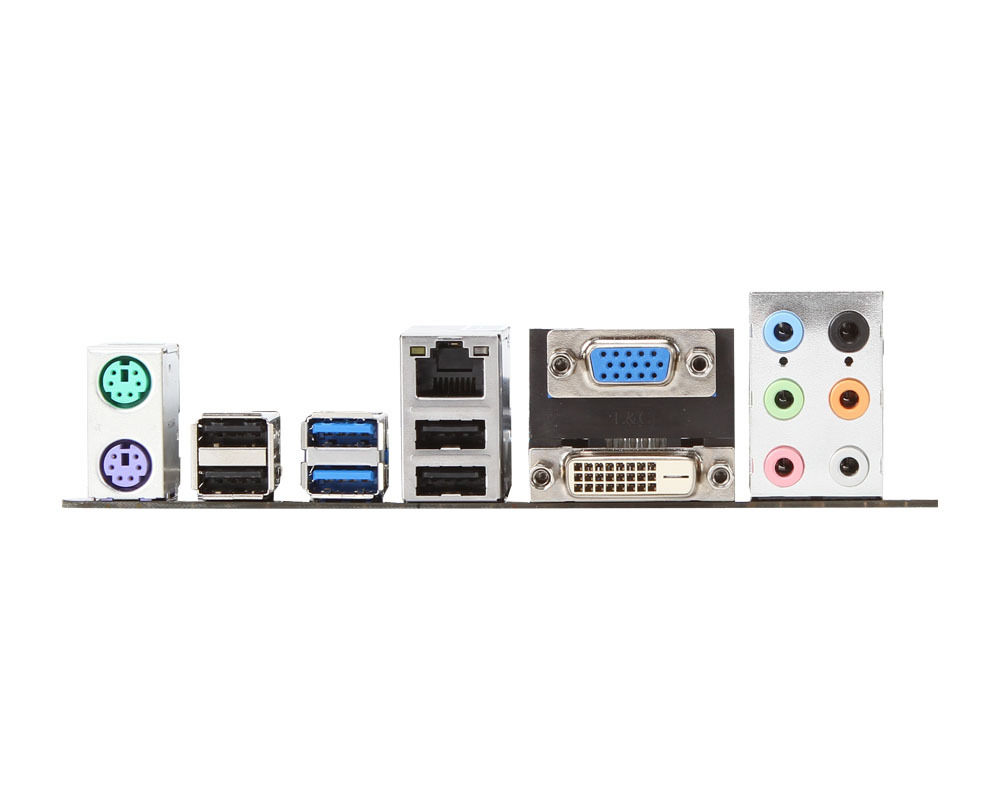

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity2
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity0
DVI-D ports quantity1
Headphone outputs6

Network

Ethernet interface typeFast Ethernet, Gigabit Ethernet
LAN controllerRealtek RTL8111E
Networking featuresGigabit Ethernet

Features

Component forPC
Motherboard form factorATX
Motherboard chipsetIntel® H61
Audio chipRealtek ALC887
Audio output channels7.1 channels
Power source typeATX
Compatible operating systemsWindows

Expansion slots

PCI Express x1 slots2
PCI Express x16 slots1
PCI slots3

Weight & dimensions

Width305 mm
Depth205 mm

Packaging content

Drivers includedYes
