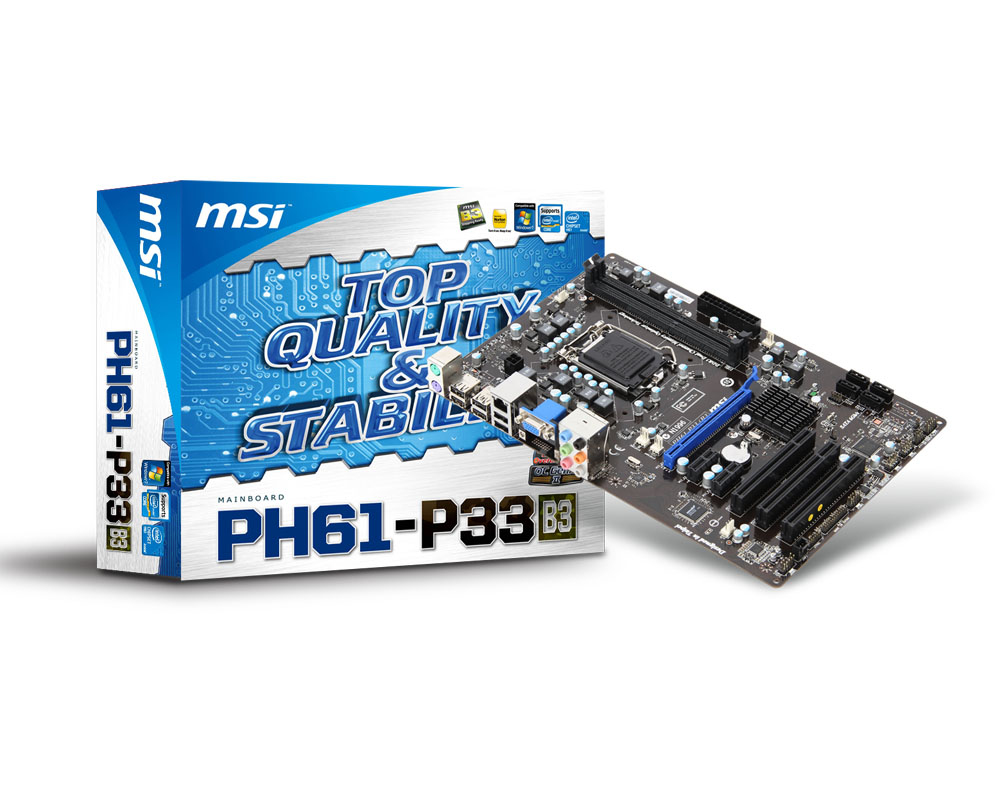

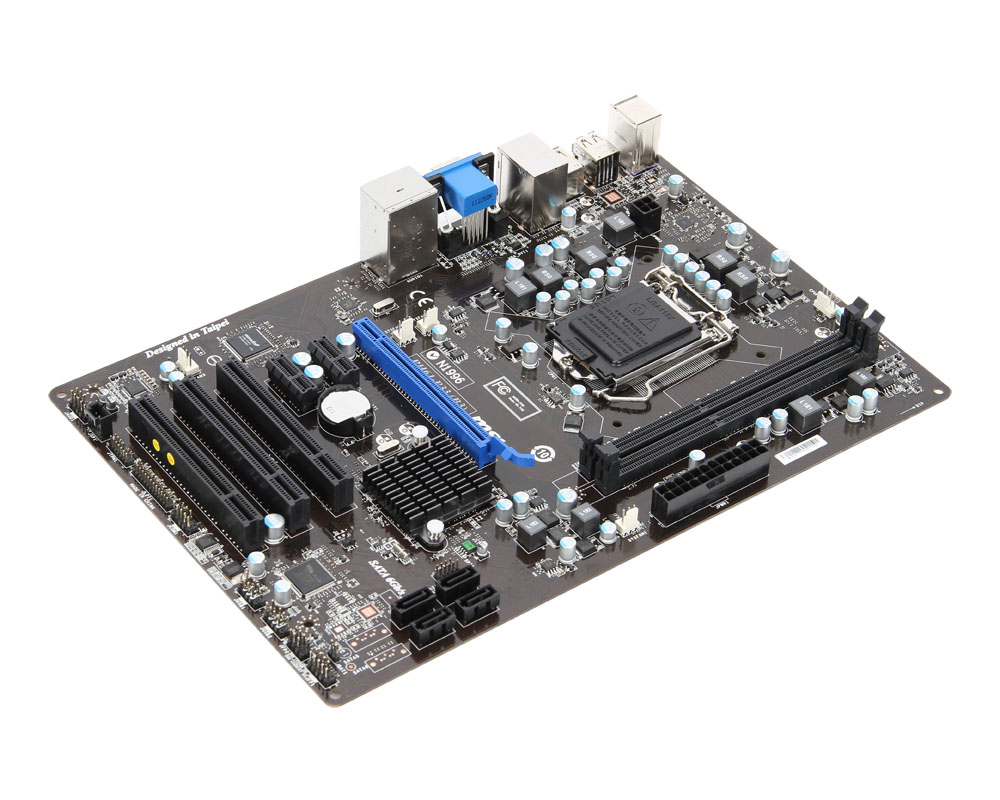

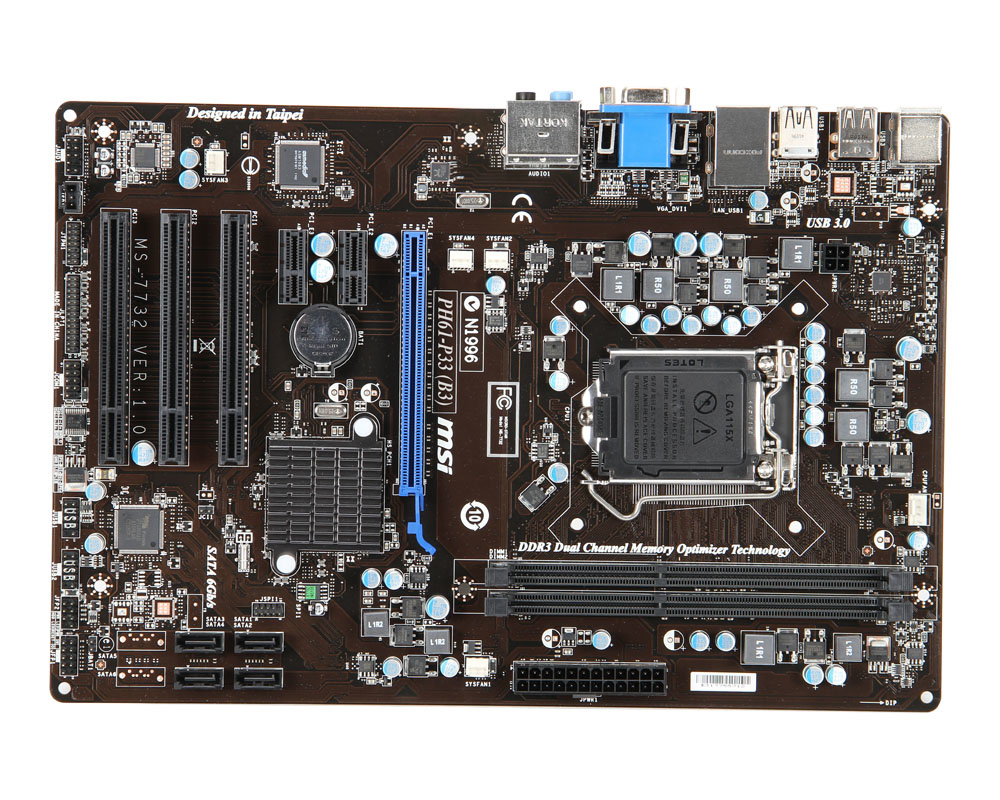

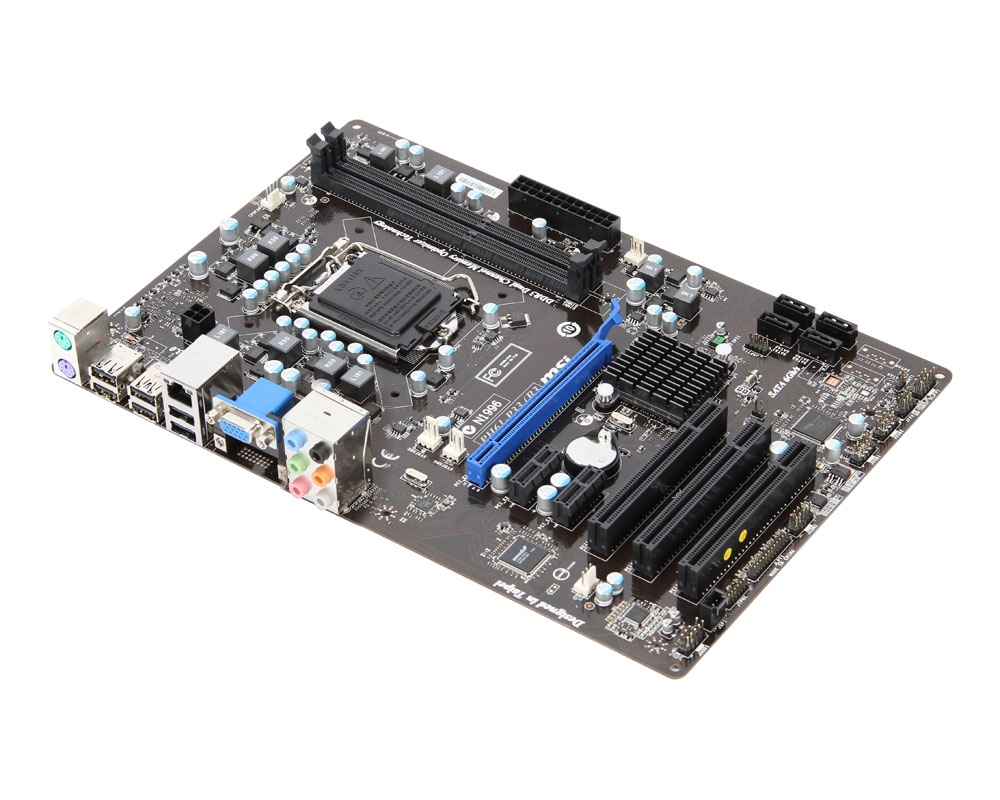

MSI PH61-P33 (B3)

MSI PH61-P33 (B3)

Model PH61-P33 (B3)EAN 4719072225506

64 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA II
  • Parallel processing technology supportNot supported
  • USB 2.0 connectors2
  • USB 2.0 ports quantity6
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA II
Parallel processing technology support
Not supported
USB 2.0 connectors
2
USB 2.0 ports quantity
6
Brand
MSI
Category
Motherboard
Model
PH61-P33 (B3)
Part numbers
PH61-P33 (B3), 601-7732-010
EAN / UPC
4719072225506
Also known as
MSI PH61-P33 (B3) motherboard Intel® H61 LGA 1155 (Socket H2) ATX

Specifications

64 specifications in 13 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1155 (Socket H2)
Compatible processor seriesIntel® Celeron®, Intel® Pentium®
Maximum number of SMP processors1

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots2
Memory channelsDual-channel
Memory voltage1.5 V
Supported memory clock speeds1066,1333 MHz
Maximum internal memory16 GB
Supported memory module capacities8GB

Storage controllers

Supported storage drive interfacesSATA II

Graphics

Parallel processing technology supportNot supported
On-board graphics cardNo

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors0
Number of SATA III connectors0
Number of SATA II connectors4
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
CD/AUX audio inYes
ATX Power connector (24-pin)Yes
Power fan connectorYes
CPU fan connectorYes
Number of chassis fan connectors2
Chassis intrusion connectorYes
Peripheral (Molex) power connectors (4-pin)1
Number of COM connectors1
Parallel connectorYes
TPM connectorYes

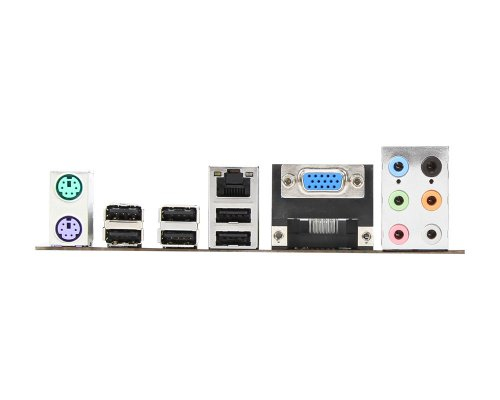

Rear panel I/O ports

USB 2.0 ports quantity6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity2
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity0
DVI-D ports quantity0
Headphone outputs1
Microphone inYes

Network

Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111E
Wi-Fi standardsNot supported
BluetoothNo
Networking featuresGigabit Ethernet

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® H61
Audio chipRealtek ALC887
Audio output channels7.1 channels
Power source typeATX

Expansion slots

PCI Express x1 slots2
PCI Express x16 slots1
PCI Express slots version2.0
PCI slots3

BIOS

BIOS typeUEFI
Clear CMOS jumperYes

Weight & dimensions

Width205 mm
Depth305 mm

Packaging content

Drivers includedYes

Other features

Quick installation guideYes
