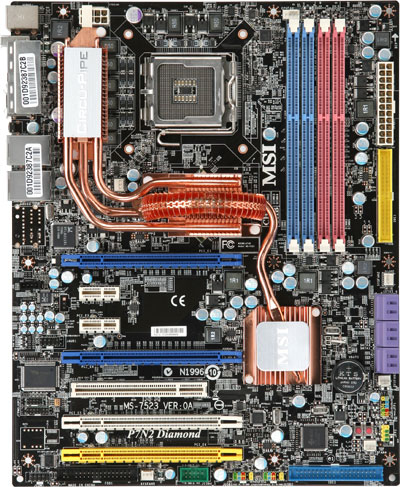

MSI P7N2 Diamond
Model P7N2 DiamondPart no. 7523-010REAN 4719072076528
29 specifications
- Processor manufacturerIntel
- Number of memory slots4
- RAID levels0, 1, 0+1, 5, JBOD
- USB 2.0 ports quantity6
- Motherboard form factorATX
- Width304 mm
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- RAID levels
- 0, 1, 0+1, 5, JBOD
- USB 2.0 ports quantity
- 6
- Motherboard form factor
- ATX
- Width
- 304 mm
- Brand
- MSI
- Category
- Motherboard
- Model
- P7N2 Diamond
- Part numbers
- 7523-010R, P7N2 DIAMOND, P7N2-DIAMOND
- EAN / UPC
- 4719072076528
- Also known as
- MSI P7N2 Diamond LGA 775 (Socket T) ATX
Specifications
29 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
| Compatible processor series | Intel® Pentium® D |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Maximum internal memory | 8 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 0+1, 5, JBOD |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 4 |
| Number of SATA connectors | 6 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| Number of IEEE1394 connectors | 1 |
| TPM connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| Ethernet LAN (RJ-45) ports | 2 |
| eSATA ports quantity | 2 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 1 |
| S/PDIF out port | Yes |
| Digital audio optical out | 1 |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 4 x PCI Express x16 2 x PCI Express x1 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 304 mm |
| Depth | 245 mm |
Other features
| Specification | Value |
|---|---|
| Floppy disk drive connector | Yes |
What people say
Reviews & ratings
MSI P7N2 Diamond
- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare MSI P7N2 Diamond
All motherboard comparisons- MSI P7N2 Diamond vsMSI P7N SLI-FICompare specs

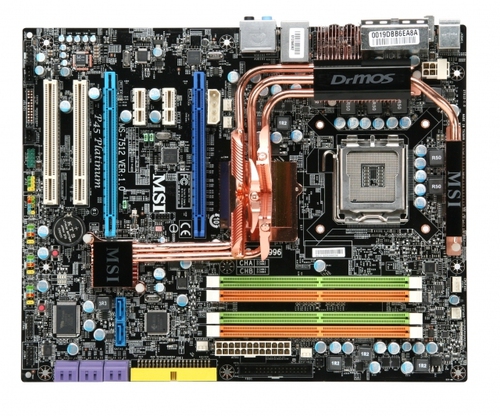

- MSI P7N2 Diamond vsMSI P45 PLATINUMCompare specs
