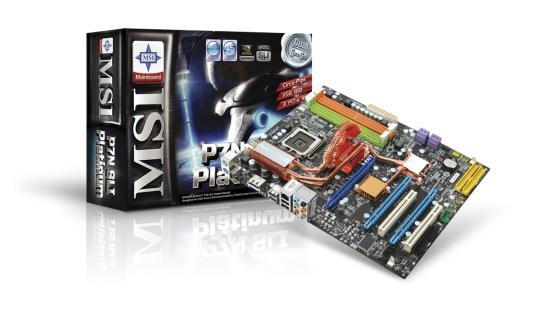

MSI P7N SLI Platinum
Model P7N SLI PlatinumPart no. P7N SLI PLATINUMEAN 816909043020
30 specifications
- Processor manufacturerIntel
- Number of memory slots4
- RAID levels0, 1, 0+1, 5, JBOD
- Motherboard form factorATX
- Expansion slots2 x PCI 3 x PCI-E 2.0 x16
- Width304 mm
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- RAID levels
- 0, 1, 0+1, 5, JBOD
- Motherboard form factor
- ATX
- Expansion slots
- 2 x PCI 3 x PCI-E 2.0 x16
- Width
- 304 mm
- Brand
- MSI
- Category
- Motherboard
- Model
- P7N SLI Platinum
- Part numbers
- P7N SLI PLATINUM, 7380-010R
- EAN / UPC
- 816909043020, 4719072071325
- Also known as
- MSI P7N SLI Platinum LGA 775 (Socket T) ATX
Specifications
30 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
| Compatible processor series | Intel® Pentium® D |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Maximum internal memory | 8 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 0+1, 5, JBOD |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 4 |
| Number of SATA connectors | 4 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| Number of IEEE1394 connectors | 1 |
| TPM connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 2 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 1 |
| S/PDIF out port | Yes |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | Realtek ALC888 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 2 x PCI 3 x PCI-E 2.0 x16 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 304 mm |
| Depth | 245 mm |
Other features
| Specification | Value |
|---|---|
| Floppy disk drive connector | Yes |
What people say
Reviews & ratings
MSI P7N SLI Platinum
No reviews yet
Be the first to tell others how MSI P7N SLI Platinum works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare MSI P7N SLI Platinum
All motherboard comparisons- MSI P7N SLI Platinum vsMSI P6NG NEO-LCompare specs
- MSI P7N SLI Platinum vsMSI K9NGM4-F V2Compare specs

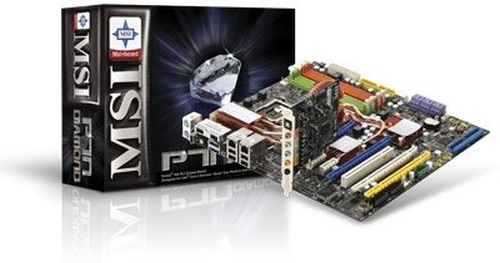

- MSI P7N SLI Platinum vsMSI P7N DiamondCompare specs

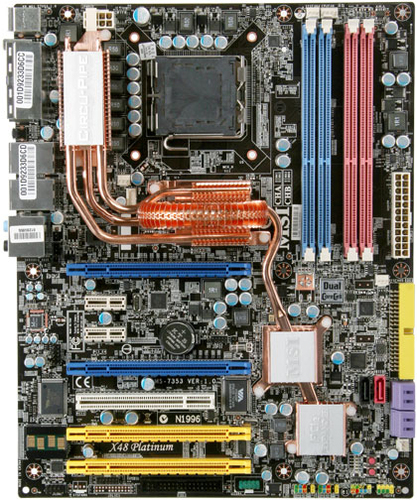

- MSI P7N SLI Platinum vsMSI X48 PlatinumCompare specs
- MSI P7N SLI Platinum vsGIGABYTE GA-X38-DS4 - ATX, LGA 775Compare specs
- MSI P7N SLI Platinum vsGIGABYTE GA-945GCM-S2C motherboard LGA 775 (Socket T) ATXCompare specs
- MSI P7N SLI Platinum vsASUS P5W LGA 775 (Socket T) ATXCompare specs

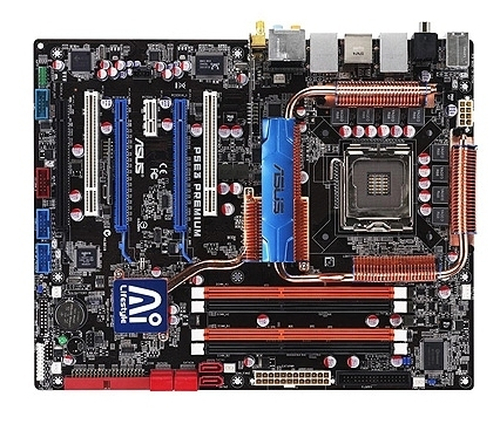

- MSI P7N SLI Platinum vsASUS P5E3 Premium/WiFi-AP @nCompare specs
