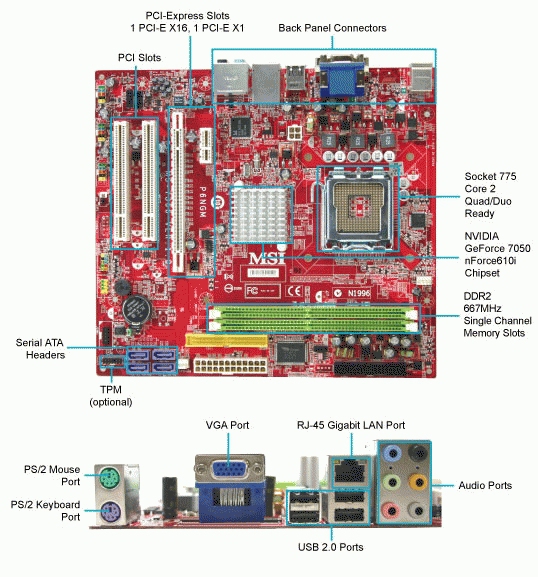

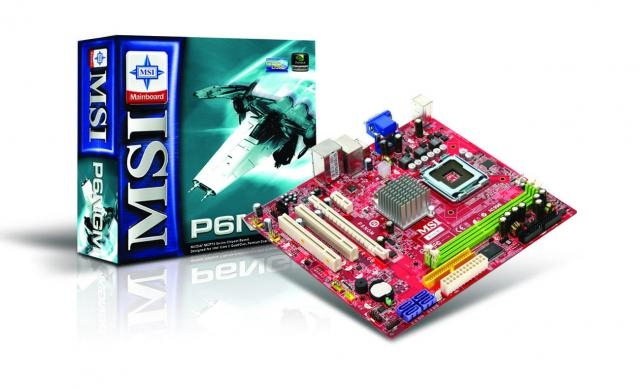

MSI P6NGM-L motherboard LGA 775 (Socket T) micro ATX
Model P6NGM-LEAN 4719072025878
27 specifications
- Processor manufacturerIntel
- Number of memory slots2
- RAID levels0
- USB 2.0 connectors6
- USB 2.0 ports quantity4
- LAN controllerRealtek RTL8201CL
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 2
- RAID levels
- 0
- USB 2.0 connectors
- 6
- USB 2.0 ports quantity
- 4
- LAN controller
- Realtek RTL8201CL
- Brand
- MSI
- Category
- Motherboard
- Model
- P6NGM-L
- Part numbers
- P6NGM-L, 7366-050R, 7366-020, 7366-05S
- EAN / UPC
- 4719072025878, 816909042016
- Also known as
- MSI P6NGM-L motherboard LGA 775 (Socket T) micro ATX
Specifications
27 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
| Compatible processor series | Intel® Pentium® D |
| Processor system buses supported | 1333 MHz |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| Maximum internal memory | 4 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 6 |
| Number of SATA connectors | 4 |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| TPM connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| S/PDIF out port | Yes |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8201CL |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Audio chip | Realtek ALC888 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1 x PCI Express 16X 1 x PCI Express 1X 2 x PCI 2.3 32-bit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 228 mm |
| Depth | 241 mm |
Other features
| Specification | Value |
|---|---|
| Floppy disk drive connector | Yes |
