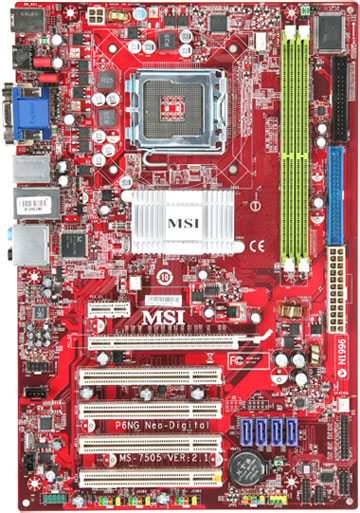

MSI P6NG Neo-Digital
Model P6NG Neo-DigitalPart no. 7505-030REAN 4719072078942
28 specifications
- Processor manufacturerIntel
- Number of memory slots2
- RAID levels0, 1
- USB 2.0 connectors3
- USB 2.0 ports quantity4
- LAN controllerRealtek RTL8201CL
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 2
- RAID levels
- 0, 1
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 4
- LAN controller
- Realtek RTL8201CL
- Brand
- MSI
- Category
- Motherboard
- Model
- P6NG Neo-Digital
- Part numbers
- 7505-030R, P6NG NEO-DIGITAL
- EAN / UPC
- 4719072078942
- Also known as
- MSI P6NG Neo-Digital LGA 775 (Socket T) ATX
Specifications
28 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| Maximum internal memory | 2 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of SATA connectors | 4 |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8201CL |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | Realtek ALC888 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 205 mm |
Other features
| Specification | Value |
|---|---|
| Floppy disk drive connector | Yes |
