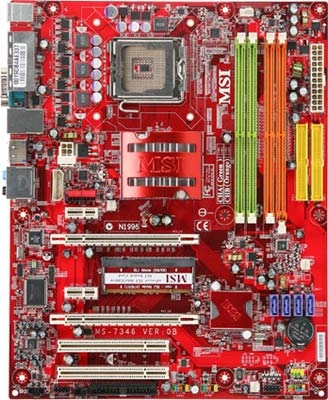

MSI P6N SLI-F
Model P6N SLI-FPart no. 7346-010REAN 4719072053574
33 specifications
- Processor manufacturerIntel
- Number of memory slots4
- RAID levels0, 1, 0+1
- USB 2.0 connectors2
- LAN controllerVitesse VSC8601
- Motherboard form factorATX
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- RAID levels
- 0, 1, 0+1
- USB 2.0 connectors
- 2
- LAN controller
- Vitesse VSC8601
- Motherboard form factor
- ATX
- Brand
- MSI
- Category
- Motherboard
- Model
- P6N SLI-F
- Part number
- 7346-010R
- EAN / UPC
- 4719072053574
- Also known as
- MSI P6N SLI-F LGA 775 (Socket T) ATX
Specifications
33 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
| Compatible processor series | Intel® Pentium® D |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Maximum internal memory | 8 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 0+1 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 4 |
| Number of Parallel ATA connectors | 2 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 3 |
| Chassis intrusion connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Vitesse VSC8601 |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | Realtek ALC888 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | • 2x PCI Express x16(v1.0a) • 2x PCI Express x1(v1.0a) • 2x 32-bit v2.3 Master PCI(3.3v/5v PCI) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 245 mm |
| Depth | 305 mm |
Other features
| Specification | Value |
|---|---|
| Controller 2nd interface type | SATA |
| Controller interface type | SATA II |
| Floppy disk drive connector | Yes |
What people say
Reviews & ratings
MSI P6N SLI-F
- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare MSI P6N SLI-F

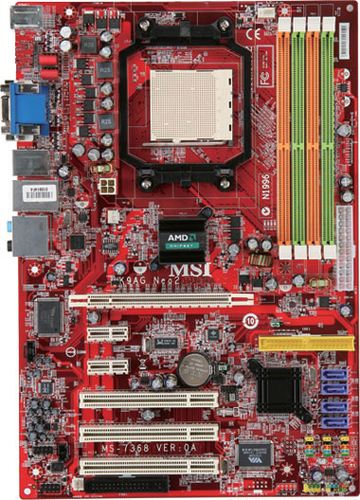

All motherboard comparisons- MSI P6N SLI-F vsMSI K9AG Neo2Compare specs

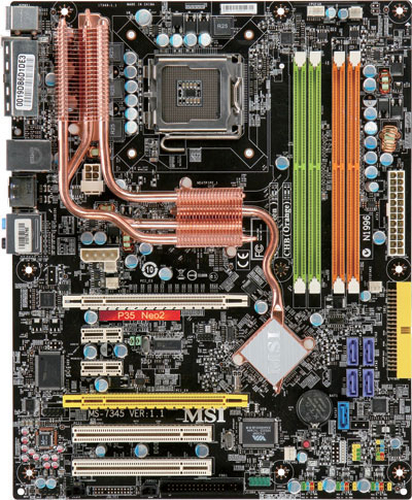

- MSI P6N SLI-F vsMSI P35 Neo2-FRCompare specs

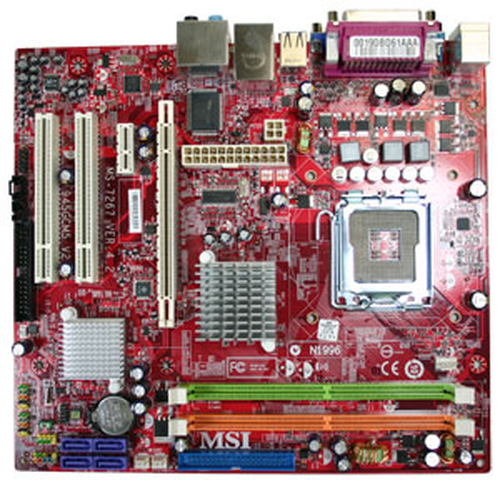

- MSI P6N SLI-F vsMSI 945GCM5-F V2Compare specs
