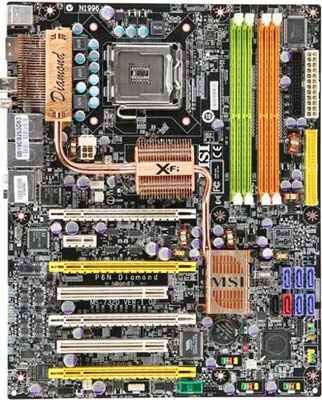

MSI P6N Diamond
Model P6N DiamondPart no. 7320-111EAN 4719072053338
27 specifications
- Processor manufacturerIntel
- Number of memory slots4
- RAID levels0, 1, 0+1
- USB 2.0 connectors3
- Motherboard form factorATX
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- RAID levels
- 0, 1, 0+1
- USB 2.0 connectors
- 3
- Motherboard form factor
- ATX
- Brand
- MSI
- Category
- Motherboard
- Model
- P6N Diamond
- Part number
- 7320-111
- EAN / UPC
- 4719072053338
- Also known as
- MSI P6N Diamond LGA 775 (Socket T) ATX
Specifications
27 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
| Compatible processor series | Intel® Core™2 Duo |
| Processor system buses supported | 1333 MHz |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Maximum internal memory | 8 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 0+1 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of SATA connectors | 7 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| Number of IEEE1394 connectors | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 2 |
| eSATA ports quantity | 1 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 1 |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Compatible operating systems | Vista Premium |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 2 x PCI 1 x PCI-E x1 4x PCI-E x16 |
Other features
| Specification | Value |
|---|---|
| Floppy disk drive connector | Yes |
