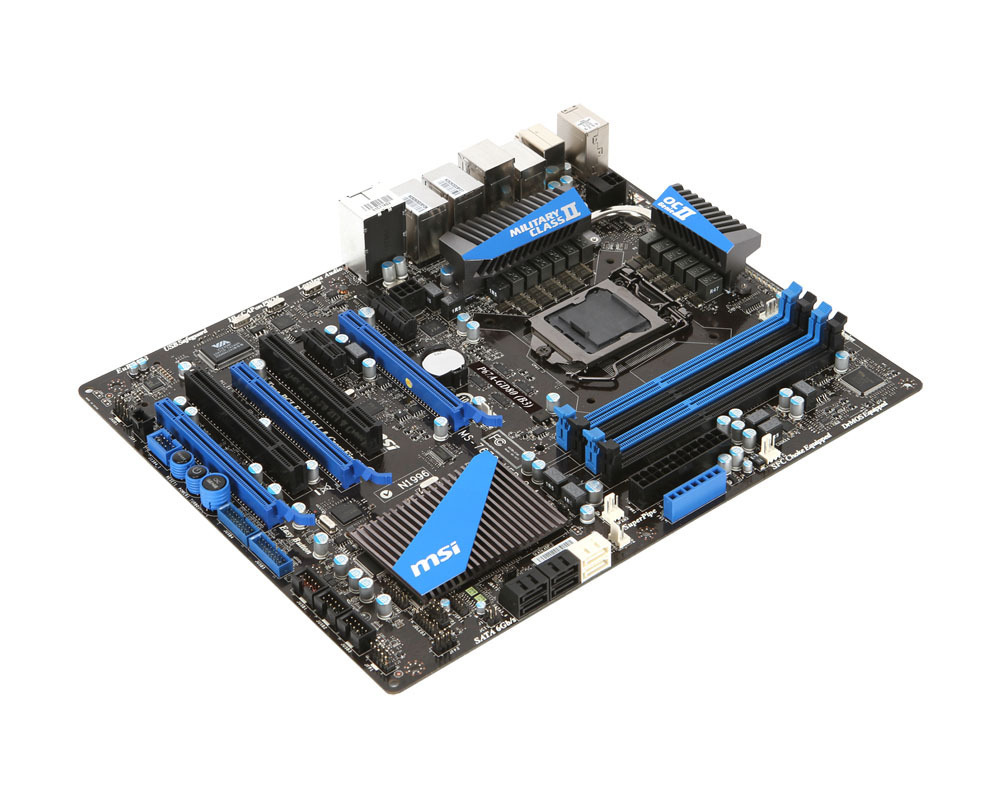

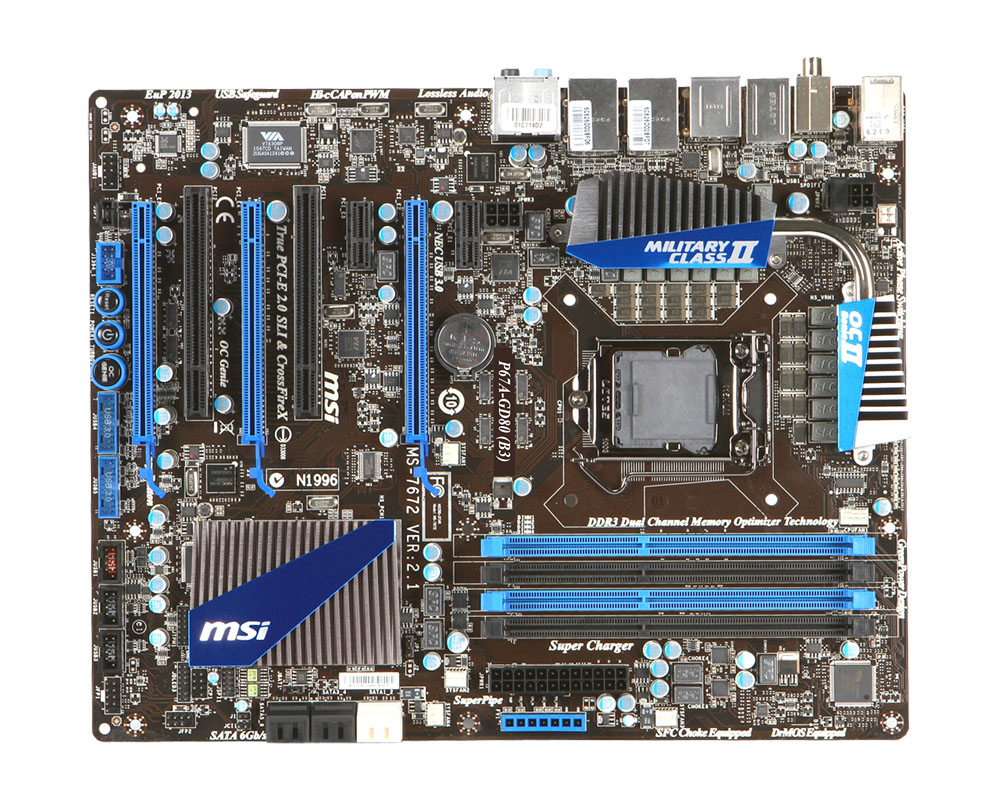

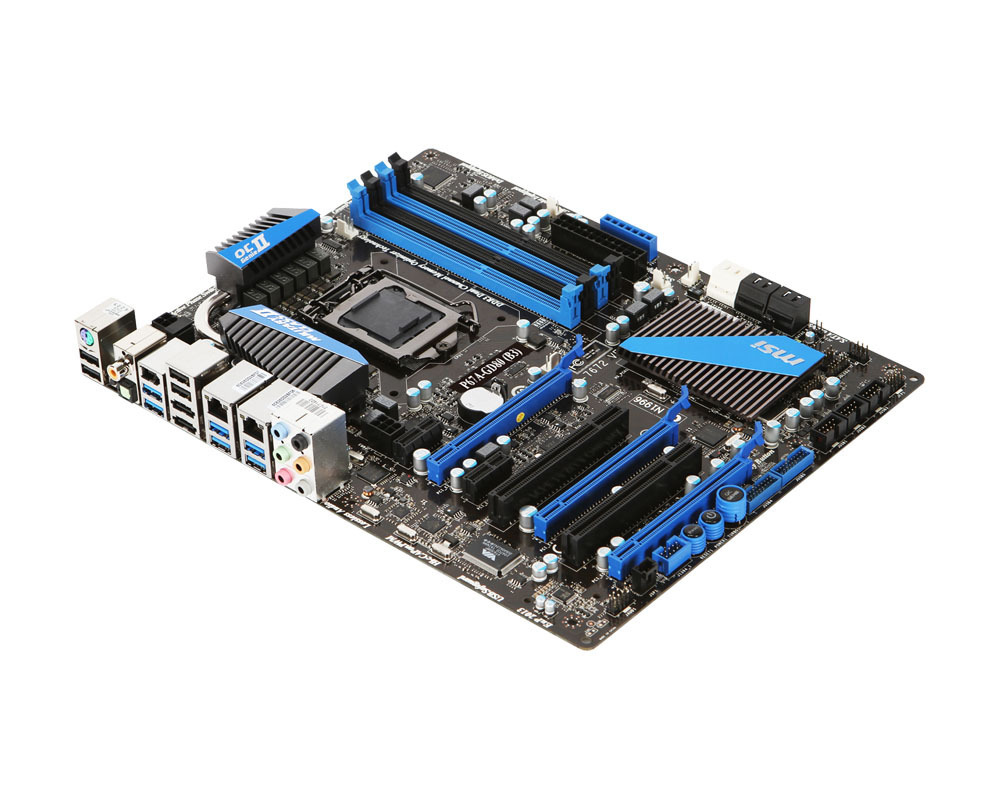

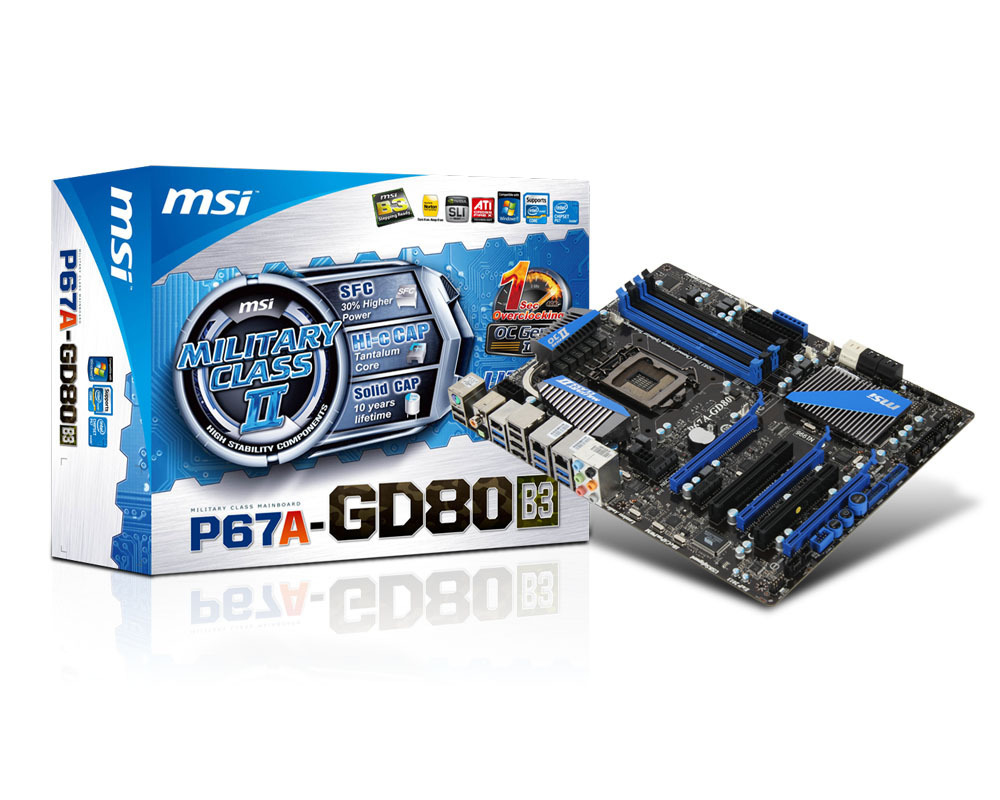

MSI P67A-GD80 (B3)
Model P67A-GD80 (B3)Part no. 7672-010REAN 816909083705
36 specifications
- Processor manufacturerIntel
- Number of memory slots4
- RAID levels0, 1, 5, 10
- Parallel processing technology supportNot supported
- USB 2.0 connectors3
- USB 2.0 ports quantity6
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- RAID levels
- 0, 1, 5, 10
- Parallel processing technology support
- Not supported
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 6
- Brand
- MSI
- Category
- Motherboard
- Model
- P67A-GD80 (B3)
- Part numbers
- 7672-010R, P67A-GD80 (B3), P67A-GD80(B3)
- EAN / UPC
- 816909083705, 4719072199364, 4719072218300
- Also known as
- MSI P67A-GD80 (B3) LGA 1155 (Socket H2) ATX
Specifications
36 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1155 (Socket H2) |
| Compatible processor series | Intel® Core™ i5, Intel® Core™ i7 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Maximum internal memory | 32 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | Not supported |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA connectors | 6 |
| Number of Parallel ATA connectors | 0 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| Number of IEEE1394 connectors | 1 |
| TPM connector | Yes |

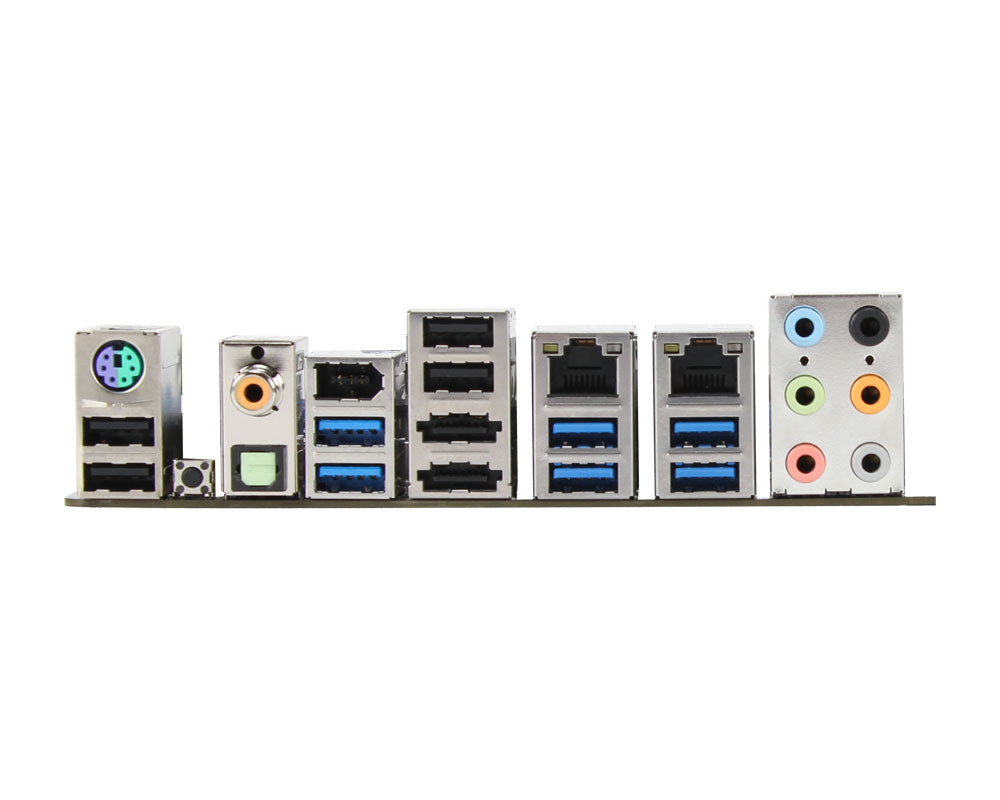

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| Ethernet LAN (RJ-45) ports | 2 |
| eSATA ports quantity | 2 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 1 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Microphone in | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet interface type | Fast Ethernet |
| LAN controller | Realtek RTL8111E |
| Networking features | 10/100/1000 Fast Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | Realtek ALC892 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 slots | 3 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 305 mm |
What people say
Reviews & ratings
MSI P67A-GD80 (B3)
No reviews yet
Be the first to tell others how MSI P67A-GD80 (B3) works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare MSI P67A-GD80 (B3)

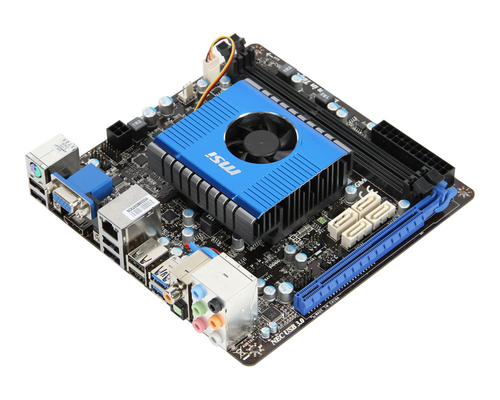

All motherboard comparisons- MSI P67A-GD80 (B3) vsMSI E350IA-E45 motherboard AMD A50M NA (integrated CPU) mini ITXCompare specs

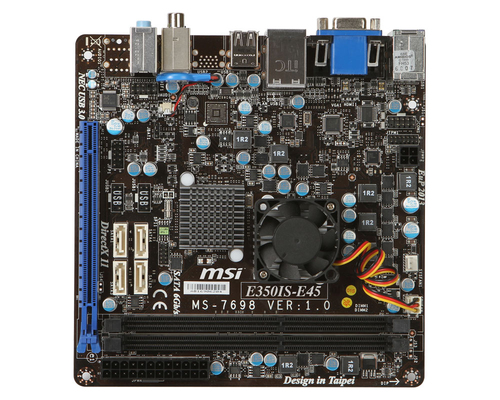

- MSI P67A-GD80 (B3) vsMSI E350IS-E45 motherboard AMD A50M NA (integrated CPU) mini ITXCompare specs
- MSI P67A-GD80 (B3) vsMSI H67MA-E35 motherboard LGA 1155 (Socket H2) micro ATXCompare specs
- MSI P67A-GD80 (B3) vsMSI G41M-P28 motherboard LGA 775 (Socket T) micro ATXCompare specs

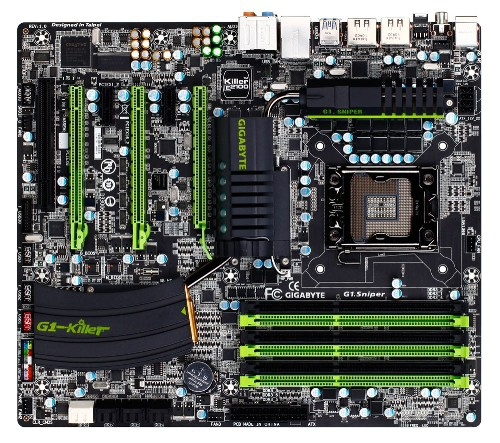

- MSI P67A-GD80 (B3) vsGIGABYTE G1.SNIPER motherboard Socket B (LGA 1366) ATXCompare specs
- MSI P67A-GD80 (B3) vsGIGABYTE GA-E350N-USB3 motherboard AMD A50 FCH Socket M (mPGA478MT) mini ITXCompare specs

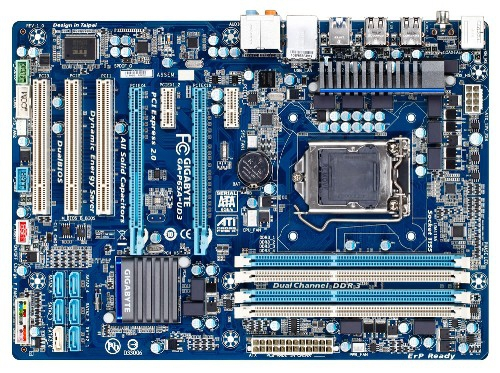

- MSI P67A-GD80 (B3) vsGIGABYTE GA-P65A-UD3 motherboard Intel B65 LGA 1155 (Socket H2) ATXCompare specs
