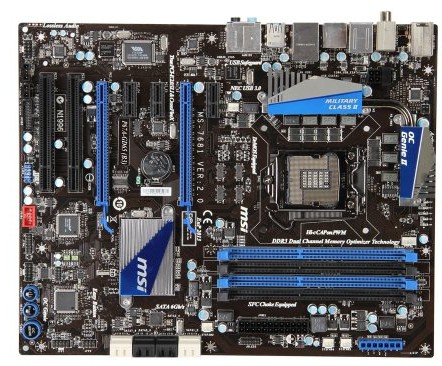

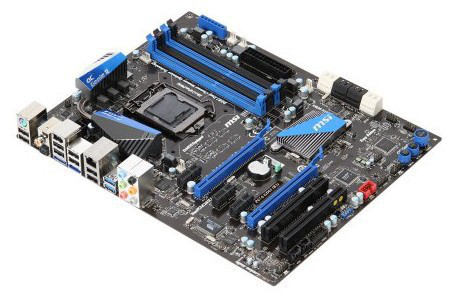

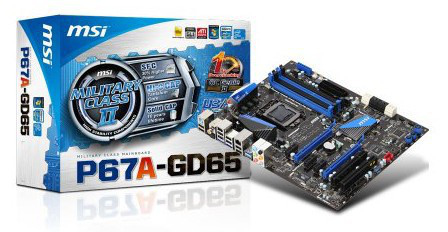

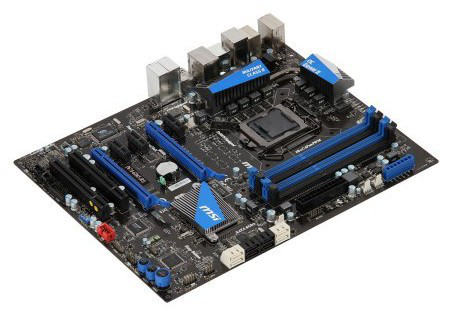

MSI P67A-GD65 (B3)

MSI P67A-GD65 (B3)

Model P67A-GD65 (B3)Part no. 7681-031R

59 specifications
  • Processor manufacturerIntel
  • Number of memory slots4
  • Supported storage drive interfacesSATA II, SATA III
  • On-board graphics cardNo
  • USB 2.0 connectors1
  • USB 2.0 ports quantity8
See all specifications

Overview

Processor manufacturer
Intel
Number of memory slots
4
Supported storage drive interfaces
SATA II, SATA III
On-board graphics card
No
USB 2.0 connectors
1
USB 2.0 ports quantity
8
Brand
MSI
Category
Motherboard
Model
P67A-GD65 (B3)
Part numbers
7681-031R, P67A-GD65 (B3), P67A-GD65(B3)
Also known as
MSI P67A-GD65 (B3) LGA 1155 (Socket H2) ATX

Specifications

59 specifications in 12 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1155 (Socket H2)
Compatible processor seriesIntel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7
Processor system buses supported1066,1333 MHz

Memory

Number of memory slots4
Memory channelsDual-channel
Memory voltage1.5 V
Supported memory clock speeds1066,1333,1600,2133 MHz
Maximum internal memory32 GB
Supported memory module capacities1GB, 2GB, 4GB, 8GB

Storage controllers

Supported storage drive interfacesSATA II, SATA III
RAID levels0, 1, 5, 10

Graphics

On-board graphics cardNo
Graphics card familyAMD

Internal I/O

USB 2.0 connectors1
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Number of SATA III connectors4
Number of SATA II connectors4
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
CD/AUX audio inYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors4
Chassis intrusion connectorYes
Number of IEEE1394 connectors1
TPM connectorYes

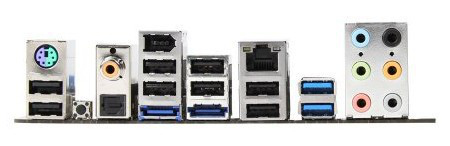

Rear panel I/O ports

USB 2.0 ports quantity8
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
eSATA ports quantity2
PS/2 ports quantity1
Firewire (IEEE 1394) ports1
VGA (D-Sub) ports quantity0
HDMI ports quantity0
DVI-D ports quantity0
Headphone outputs1
Microphone inYes
S/PDIF out portYes
Serial ports quantity1

Network

Ethernet interface typeFast Ethernet
LAN controllerRealtek RTL8111E
Networking features10/100/1000 Mbps

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyIntel
Audio chipRealtek ALC892
Audio output channels7.1 channels
Power source typeATX
Compatible operating systemsWin 98SE/ME/2000/XP/Vista/7 32Bit

Expansion slots

PCI Express x1 slots2
PCI Express x16 slots2
PCI slots2

BIOS

BIOS typeUEFI

Weight & dimensions

Width245 mm
Depth305 mm

Other features

Controller 2nd interface typeSATAIII 6Gb/s, eSATAII
Controller interface typeSATAII 3Gb/s
