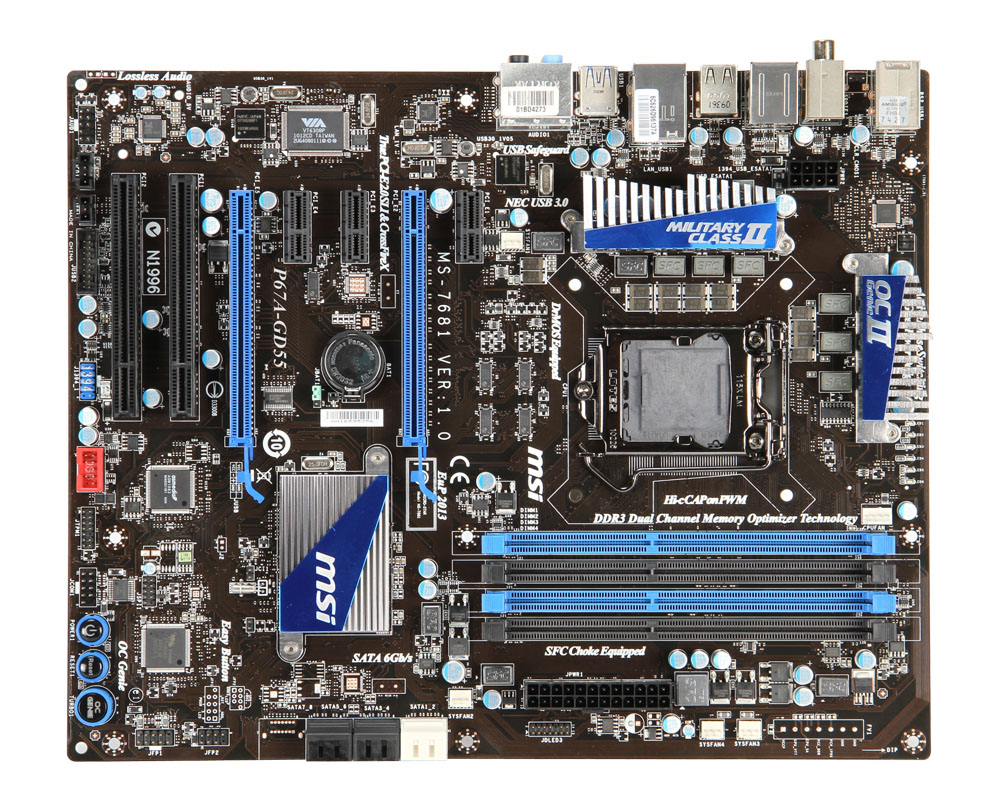

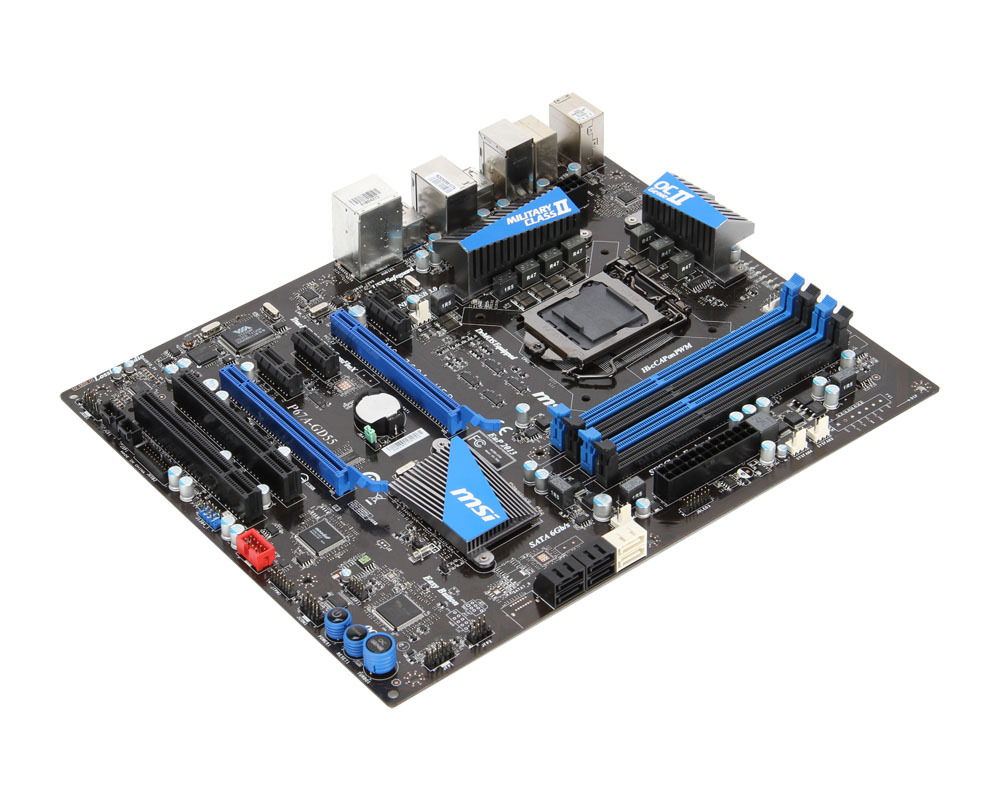

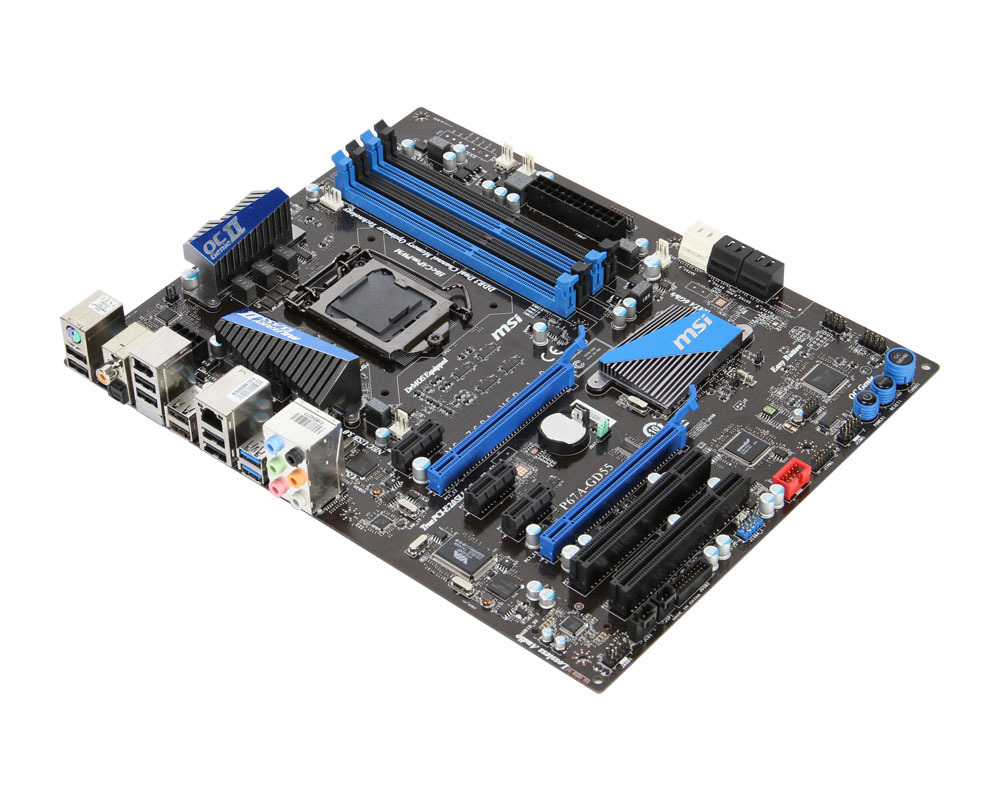

MSI P67A-GD55 LGA 1155 (Socket H2) ATX
Model P67A-GD55Part no. 7681-010REAN 4719072199388
34 specifications
- Processor socketLGA 1155 (Socket H2)
- Number of memory slots3
- RAID levels0, 1, 5, 10
- On-board graphics cardNo
- USB 2.0 connectors2
- USB 2.0 ports quantity6
Overview
- Processor socket
- LGA 1155 (Socket H2)
- Number of memory slots
- 3
- RAID levels
- 0, 1, 5, 10
- On-board graphics card
- No
- USB 2.0 connectors
- 2
- USB 2.0 ports quantity
- 6
- Brand
- MSI
- Category
- Motherboard
- Model
- P67A-GD55
- Part numbers
- 7681-010R, P67A-GD55
- EAN / UPC
- 4719072199388
- Also known as
- MSI P67A-GD55 LGA 1155 (Socket H2) ATX
Specifications
34 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Processor socket | LGA 1155 (Socket H2) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 3 |
| Supported memory clock speeds | 1066,1333,1600,2133 MHz |
| Maximum internal memory | 16 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | No |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 6 |
| Number of Parallel ATA connectors | 0 |
| S/PDIF out connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of IEEE1394 connectors | 1 |
| TPM connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | Realtek ALC892 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 3 |
| PCI Express x8 slots | 1 |
| PCI Express x16 slots | 2 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 245 mm |
| Depth | 305 mm |
