MSI P5KPL GREEN
Model P5KPL GREENPart no. P5KPL <GREEN>
36 specifications
- Processor manufacturerIntel
- Number of memory slots4
- Motherboard form factorATX
- BIOS memory size64 Mbit
- Width305 mm
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- Motherboard form factor
- ATX
- BIOS memory size
- 64 Mbit
- Width
- 305 mm
- Brand
- MSI
- Category
- Motherboard
- Model
- P5KPL GREEN
- Part number
- P5KPL <GREEN>
- Also known as
- MSI P5KPL GREEN LGA 775 (Socket T) ATX
Specifications
36 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 4 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 4 |
| Number of SATA connectors | 4 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 1 |
| PS/2 ports quantity | 2 |
| S/PDIF out port | Yes |
| Parallel ports quantity | 1 |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | Realtek ALC662 |
| Audio output channels | 5.1 channels |
| Power source type | ATX |
| Compatible operating systems | Windows 2000/XP/Vista |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1x PCI Express X16, 1x PCI Express X1, 3x PCI |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 64 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 193 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | SATA, UDMA, USB |
| Bundled software | ASUS PC Probe II, ASUS LiveUpdate |
Other features
| Specification | Value |
|---|---|
| Controller 2nd interface type | UltraDMA 100/66 |
| Controller interface type | Serial ATA 150/300 |
| Azalia Digital Header (ADH) connector | 1 |
| Special features | ASUS CrashFreeBIOS3, ASUS EZ Flash2, ASUS Q-Fan, ASUS MyLogo2 |
| Manageability features | WOL @ PME,WOR @ PME, WOR @ Ring |
What people say
Reviews & ratings
MSI P5KPL GREEN
- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare MSI P5KPL GREEN
All motherboard comparisons- MSI P5KPL GREEN vsMSI P5K LGA 775 (Socket T) ATXCompare specs
- MSI P5KPL GREEN vsMSI 5000X Speedster2-A4VCompare specs

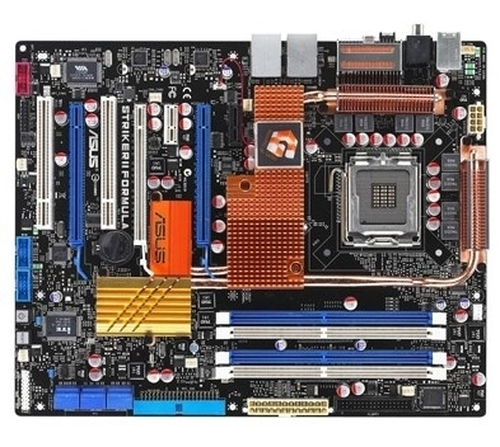

- MSI P5KPL GREEN vsMSI Striker II FormulaCompare specs

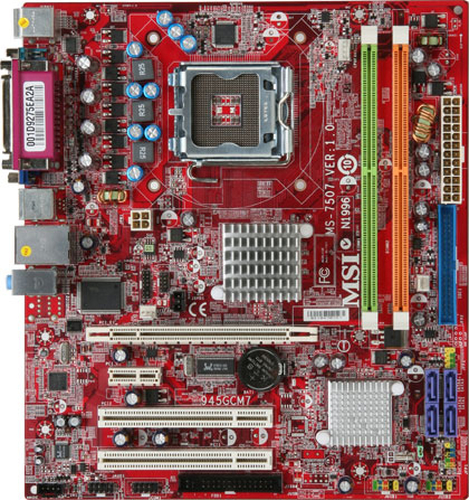

- MSI P5KPL GREEN vsMSI 945GCM7-L motherboard LGA 775 (Socket T) micro ATXCompare specs
