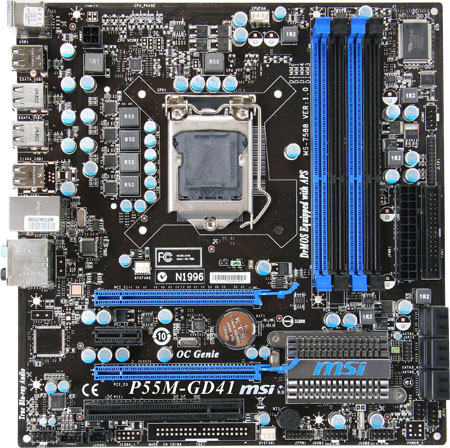

MSI P55M-GD41 motherboard Intel® P55 LGA 1156 (Socket H) micro ATX
Model P55M-GD41EAN 816909067347
37 specifications
- Processor manufacturerIntel
- Number of memory slots4
- RAID levels0, 1, 10
- USB 2.0 connectors2
- USB 2.0 ports quantity10
- LAN controllerRealtek RTL8111D(L)
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- RAID levels
- 0, 1, 10
- USB 2.0 connectors
- 2
- USB 2.0 ports quantity
- 10
- LAN controller
- Realtek RTL8111D(L)
- Brand
- MSI
- Category
- Motherboard
- Model
- P55M-GD41
- Part numbers
- P55M-GD41, P55-GD41
- EAN / UPC
- 816909067347, 4719072147136
- Also known as
- MSI P55M-GD41 motherboard Intel® P55 LGA 1156 (Socket H) micro ATX
Specifications
37 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1156 (Socket H) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Memory voltage | 1.5 V |
| Maximum internal memory | 16 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 10 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 6 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| TPM connector | Yes |

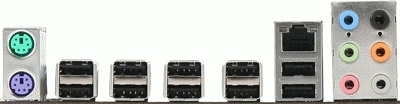

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 10 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 6 |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8111D(L) |
| Networking features | 10/100/1000 Mbps |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Motherboard chipset | Intel® P55 |
| Audio chip | Realtek ALC889 / ALC888S |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 2 |
| PCI slots | 1 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 235 mm |
Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
