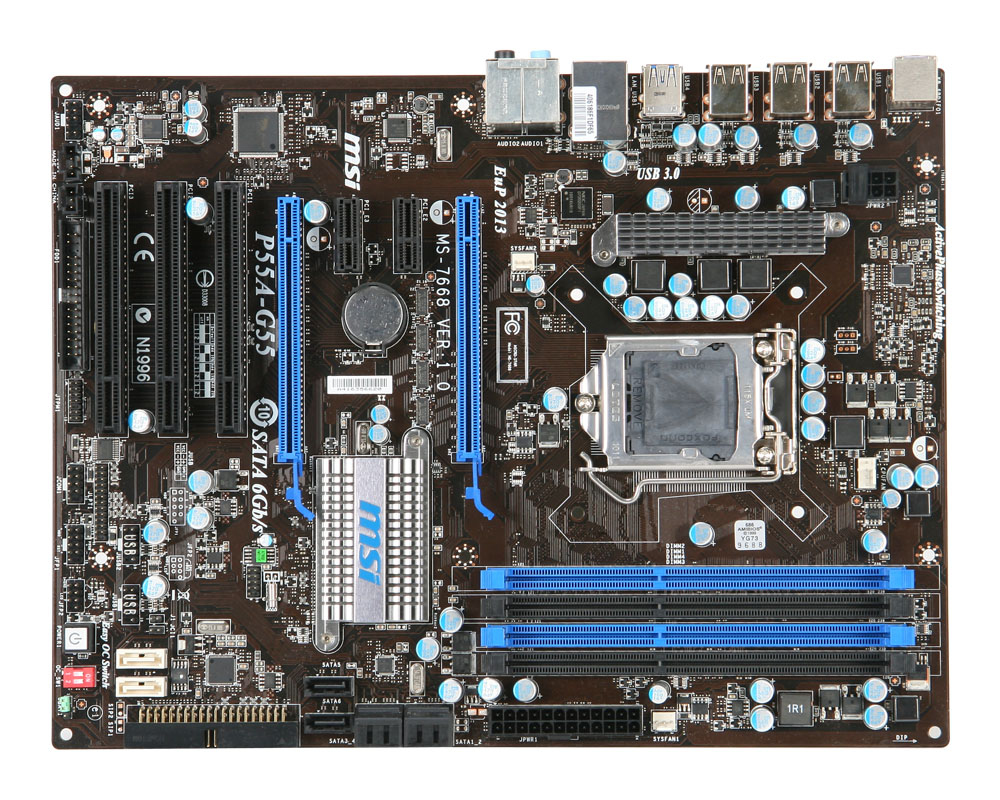

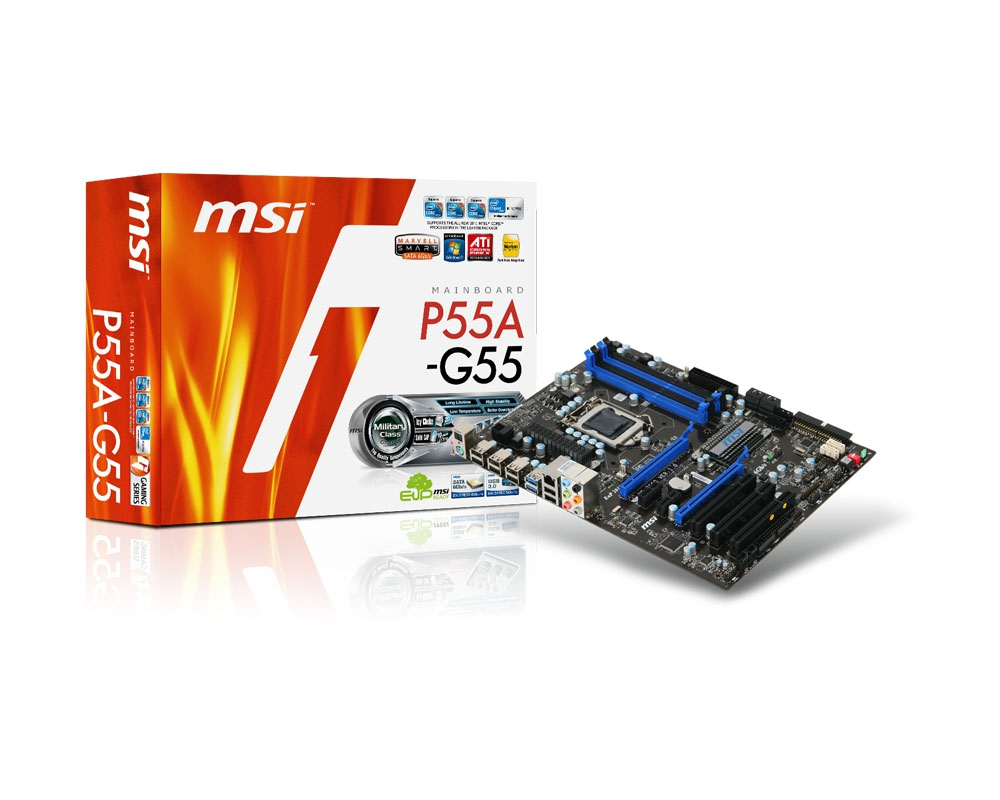

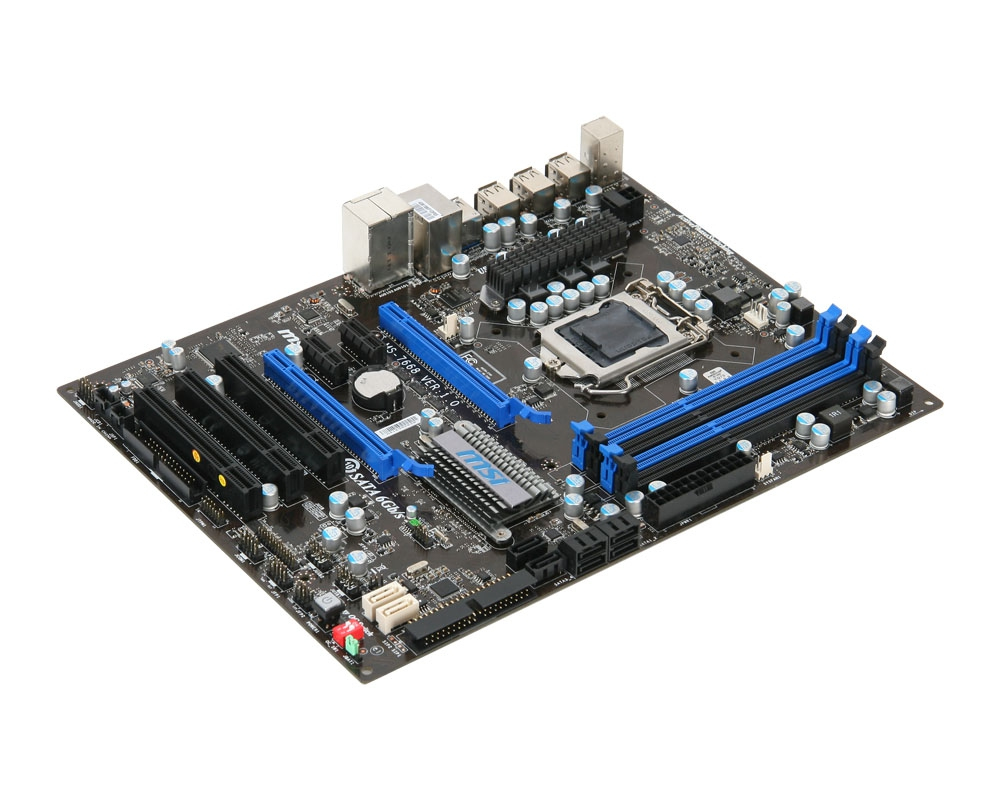

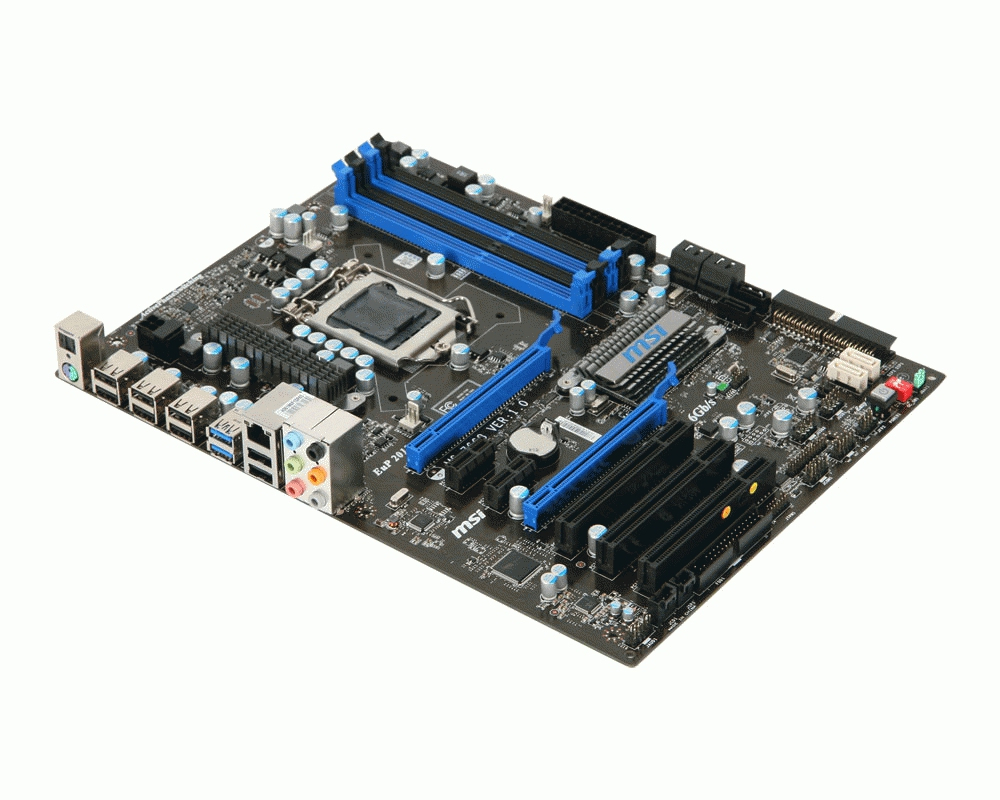

MSI P55A-G55 LGA 1156 (Socket H) ATX
Model P55A-G55Part no. 7668-010REAN 816909073706
35 specifications
- Processor manufacturerIntel
- Number of memory slots4
- USB 2.0 connectors2
- USB 2.0 ports quantity8
- LAN controllerRealtek RTL8111DL
- Motherboard form factorATX
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- USB 2.0 connectors
- 2
- USB 2.0 ports quantity
- 8
- LAN controller
- Realtek RTL8111DL
- Motherboard form factor
- ATX
- Brand
- MSI
- Category
- Motherboard
- Model
- P55A-G55
- Part numbers
- 7668-010R, P55A-G55
- EAN / UPC
- 816909073706, 4719072171025
- Also known as
- MSI P55A-G55 LGA 1156 (Socket H) ATX
Specifications
35 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1156 (Socket H) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Maximum internal memory | 16 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 8 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| TPM connector | Yes |

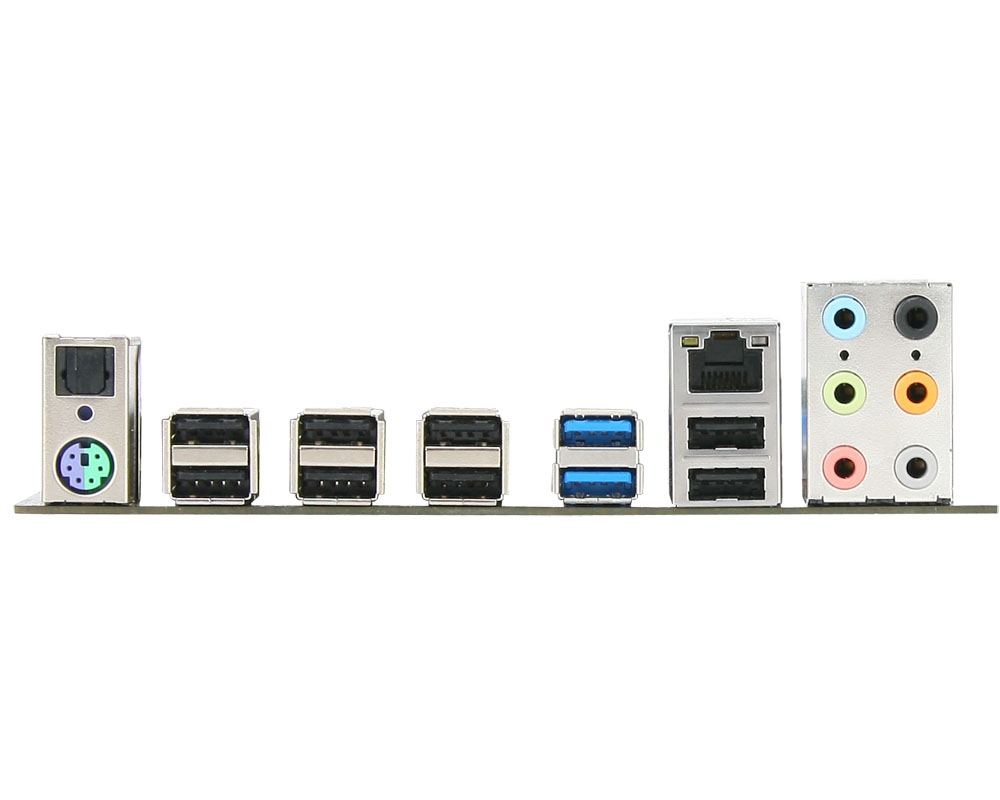

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 8 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8111DL |
| Networking features | Gb LAN |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | Realtek ALC892 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 2 |
| PCI Express x16 slots | 2 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 230 mm |
| Depth | 305 mm |
Other features
| Specification | Value |
|---|---|
| Controller 2nd interface type | IDE |
| Controller interface type | SATAII/SATAIII |
What people say
Reviews & ratings
MSI P55A-G55 LGA 1156 (Socket H) ATX
No reviews yet
Be the first to tell others how MSI P55A-G55 LGA 1156 (Socket H) ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare MSI P55A-G55 LGA 1156 (Socket H) ATX

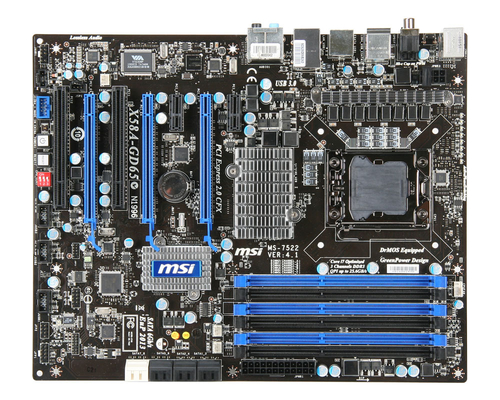

All motherboard comparisons- MSI P55A-G55 LGA 1156 (Socket H) ATX vsMSI X58A-GD65 Socket B (LGA 1366) ATXCompare specs

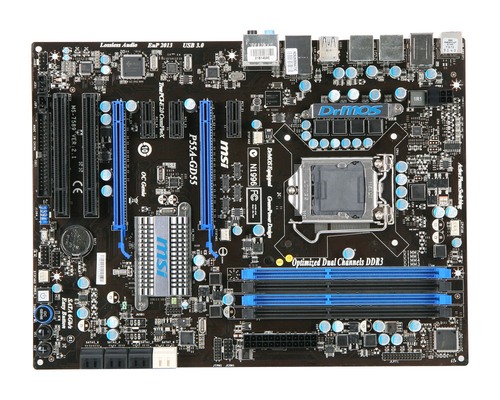

- MSI P55A-G55 LGA 1156 (Socket H) ATX vsMSI P55A-GD55 Intel® P55 LGA 1156 (Socket H) ATXCompare specs
- MSI P55A-G55 LGA 1156 (Socket H) ATX vsMSI P55A-GD65 LGA 1156 (Socket H) ATXCompare specs
- MSI P55A-G55 LGA 1156 (Socket H) ATX vsMSI Big Bang-XPowerCompare specs

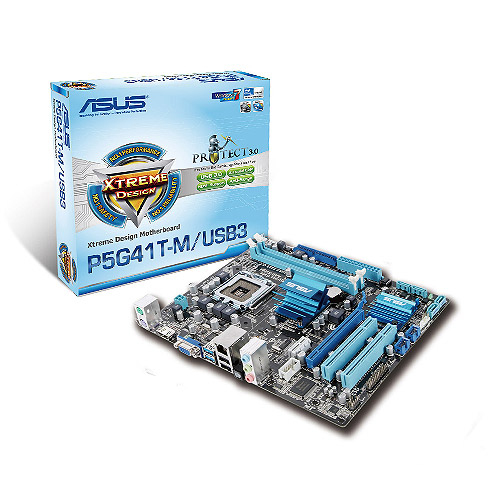

- MSI P55A-G55 LGA 1156 (Socket H) ATX vsASUS P5G41T-M/USB3 LGA 775 (Socket T) micro ATXCompare specs

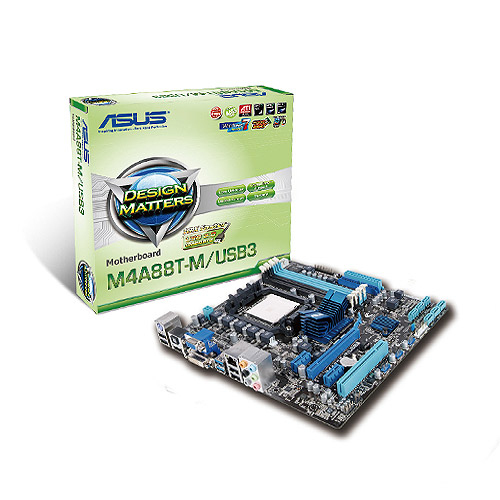

- MSI P55A-G55 LGA 1156 (Socket H) ATX vsASUS M4A88T-M/USB3 AMDCompare specs
