MSI P55A Fuzion
Model P55A FuzionPart no. P55A-FUZIONEAN 816909073737
34 specifications
- Processor manufacturerIntel
- Number of memory slots4
- USB 2.0 connectors3
- USB 2.0 ports quantity6
- LAN controllerRealtek RTL8111E
- Motherboard form factorATX
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 6
- LAN controller
- Realtek RTL8111E
- Motherboard form factor
- ATX
- Brand
- MSI
- Category
- Motherboard
- Model
- P55A Fuzion
- Part numbers
- P55A-FUZION, 7688 -010R, 7688-010R, P55A FUZION
- EAN / UPC
- 816909073737, 5052179916700, 4719072171056
- Also known as
- MSI P55A Fuzion LGA 1156 (Socket H) ATX
Specifications
34 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1156 (Socket H) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Maximum internal memory | 16 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of SATA connectors | 8 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of IEEE1394 connectors | 1 |
| TPM connector | Yes |

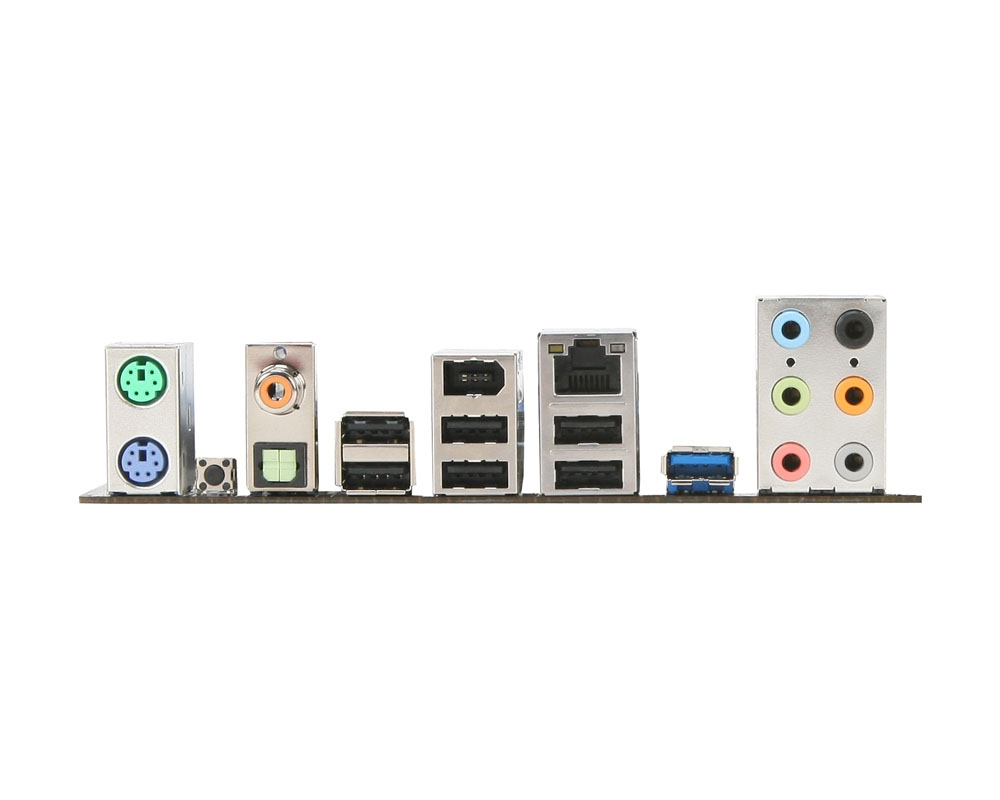

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 1 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8111E |
| Networking features | Fast Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | Realtek ALC892 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 2 |
| PCI Express x16 slots | 2 |
BIOS
| Specification | Value |
|---|---|
| ACPI version | 2.0 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 243 mm |
| Depth | 305 mm |
