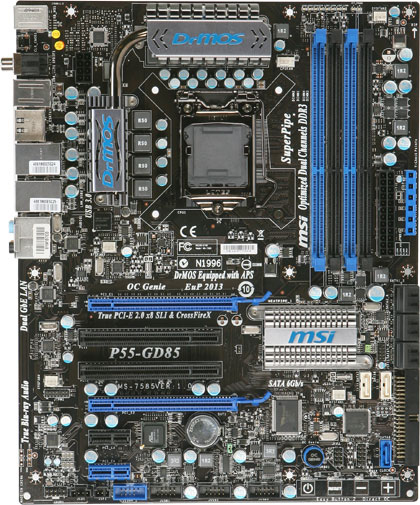

MSI P55-GD85 LGA 1156 (Socket H) ATX
Model P55-GD85Part no. 7585-010REAN 4719072155742
34 specifications
- Processor manufacturerIntel
- Number of memory slots4
- USB 2.0 connectors3
- USB 2.0 ports quantity5
- LAN controllerRealtek RTL8111DL
- Motherboard form factorATX
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 5
- LAN controller
- Realtek RTL8111DL
- Motherboard form factor
- ATX
- Brand
- MSI
- Category
- Motherboard
- Model
- P55-GD85
- Part numbers
- 7585-010R, P55-GD85
- EAN / UPC
- 4719072155742, 5052179445750
- Also known as
- MSI P55-GD85 LGA 1156 (Socket H) ATX
Specifications
34 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1156 (Socket H) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Maximum internal memory | 16 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of SATA connectors | 9 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
| TPM connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 5 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 0 |
| eSATA ports quantity | 1 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8111DL |
| Networking features | Dual LAN |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | Realtek ALC889 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 2 |
| PCI Express x16 slots | 2 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
What people say
Reviews & ratings
MSI P55-GD85 LGA 1156 (Socket H) ATX
No reviews yet
Be the first to tell others how MSI P55-GD85 LGA 1156 (Socket H) ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare MSI P55-GD85 LGA 1156 (Socket H) ATX
All motherboard comparisons- MSI P55-GD85 LGA 1156 (Socket H) ATX vsMSI Big Bang-FuzionCompare specs

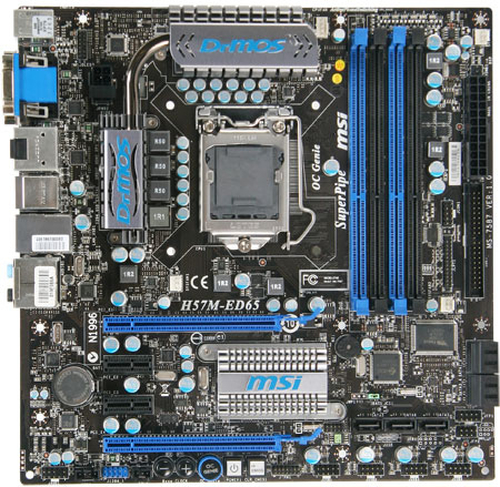

- MSI P55-GD85 LGA 1156 (Socket H) ATX vsMSI H57M-ED65 LGA 1156 (Socket H) micro ATXCompare specs
- MSI P55-GD85 LGA 1156 (Socket H) ATX vsMSI 945GCM478 motherboard Socket 478 micro ATXCompare specs
- MSI P55-GD85 LGA 1156 (Socket H) ATX vsMSI K7T TurboCompare specs
- MSI P55-GD85 LGA 1156 (Socket H) ATX vsASUS M4A78LT-M Socket AM3 micro ATXCompare specs

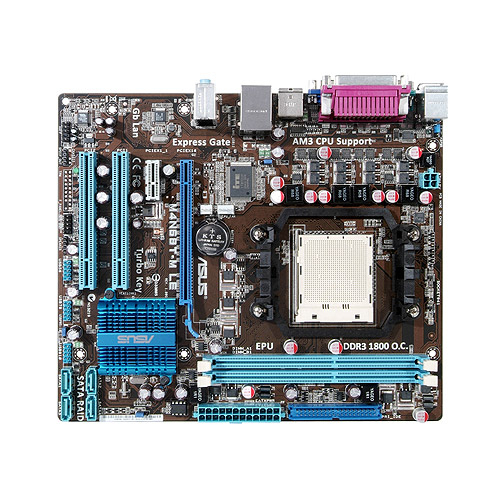

- MSI P55-GD85 LGA 1156 (Socket H) ATX vsASUS M4N68T-M LECompare specs
