MSI P55-GD80 Intel® P55 LGA 1156 (Socket H) ATX
Model P55-GD80Part no. 7581-010REAN 5051964728986
41 specifications
- Processor manufacturerIntel
- Number of memory slots4
- USB 2.0 connectors3
- USB 2.0 ports quantity7
- LAN controllerRealtek RTL8111D(L)
- Motherboard form factorATX
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 7
- LAN controller
- Realtek RTL8111D(L)
- Motherboard form factor
- ATX
- Brand
- MSI
- Category
- Motherboard
- Model
- P55-GD80
- Part numbers
- 7581-010R, 601-7581-010, P55-GD80, 911-7581-002, 007581-010R
- EAN / UPC
- 5051964728986, 816909062380
- Also known as
- MSI P55-GD80 Intel® P55 LGA 1156 (Socket H) ATX
Specifications
41 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1156 (Socket H) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Maximum internal memory | 16 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of SATA connectors | 8 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Number of IEEE1394 connectors | 1 |
| TPM connector | Yes |

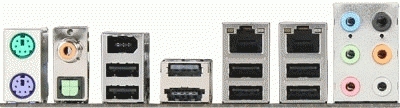

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 7 |
| Ethernet LAN (RJ-45) ports | 2 |
| eSATA ports quantity | 1 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 1 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 6 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8111D(L) |
| Networking features | 10/100/1000 Mbit |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Motherboard chipset | Intel® P55 |
| Audio chip | Realtek ALC889 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 2 |
| PCI Express x16 slots | 3 |
| PCI slots | 2 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
Other features
| Specification | Value |
|---|---|
| Controller 2nd interface type | ATA-133/100/66/33 |
| AGP x4 slots | 0 |
| AGP x8 slots | 0 |
What people say
Reviews & ratings
MSI P55-GD80 Intel® P55 LGA 1156 (Socket H) ATX
No reviews yet
Be the first to tell others how MSI P55-GD80 Intel® P55 LGA 1156 (Socket H) ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare MSI P55-GD80 Intel® P55 LGA 1156 (Socket H) ATX
All motherboard comparisons- MSI P55-GD80 Intel® P55 LGA 1156 (Socket H) ATX vsMSI 790FX-GD70 Winki EditionCompare specs
- MSI P55-GD80 Intel® P55 LGA 1156 (Socket H) ATX vsMSI 785GM-E51 AMDCompare specs
- MSI P55-GD80 Intel® P55 LGA 1156 (Socket H) ATX vsMSI G31TM-P21 motherboard Intel® G31 LGA 775 (Socket T) micro ATXCompare specs
- MSI P55-GD80 Intel® P55 LGA 1156 (Socket H) ATX vsMSI 785GM-E65 motherboard AMDCompare specs

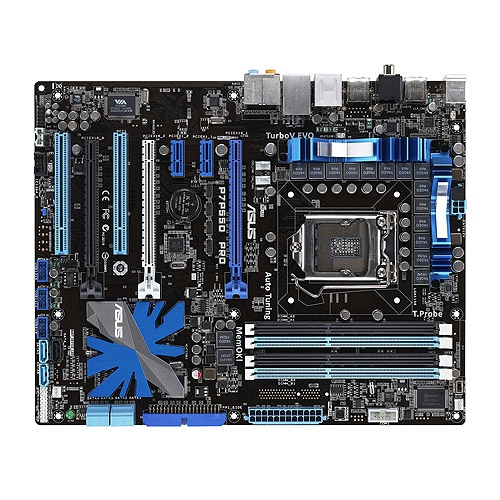

- MSI P55-GD80 Intel® P55 LGA 1156 (Socket H) ATX vsASUS P7P55D PROCompare specs

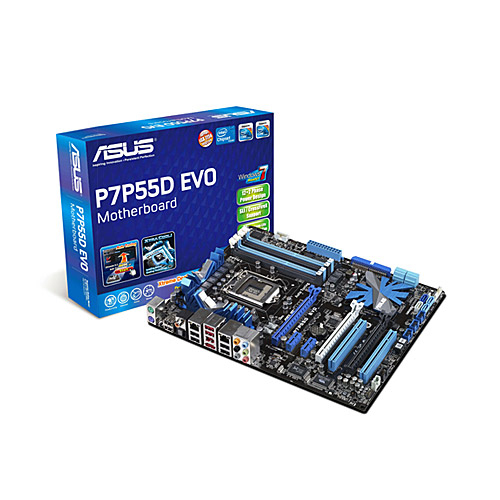

- MSI P55-GD80 Intel® P55 LGA 1156 (Socket H) ATX vsASUS P7P55D EVOCompare specs
