MSI P55-DGD65 motherboard Intel® P55 LGA 1156 (Socket H) ATX
Model P55-DGD65
38 specifications
- Processor manufacturerIntel
- Number of memory slots4
- RAID levels0, 1, 5, 10, JBOD
- USB 2.0 connectors3
- USB 2.0 ports quantity7
- Motherboard form factorATX
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- RAID levels
- 0, 1, 5, 10, JBOD
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 7
- Motherboard form factor
- ATX
- Brand
- MSI
- Category
- Motherboard
- Model
- P55-DGD65
- Part number
- P55-DGD65
- Also known as
- MSI P55-DGD65 motherboard Intel® P55 LGA 1156 (Socket H) ATX
Specifications
38 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1156 (Socket H) |
| Compatible processor series | Intel® Core™ i5 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Memory voltage | 1.5 V |
| Maximum internal memory | 16 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 5, 10, JBOD |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of SATA connectors | 8 |
| Number of Parallel ATA connectors | 1 |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| Number of IEEE1394 connectors | 2 |
| TPM connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 7 |
| Ethernet LAN (RJ-45) ports | 2 |
| eSATA ports quantity | 1 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 2 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 1 |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| Networking features | 2 x Realtek RTL8111DL - Ethernet, Fast Ethernet, Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Motherboard chipset | Intel® P55 |
| Audio chip | Realtek ALC889 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 2 |
| PCI Express x16 slots | 2 |
| PCI slots | 2 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 305 mm |
What people say
Reviews & ratings
MSI P55-DGD65 motherboard Intel® P55 LGA 1156 (Socket H) ATX
No reviews yet
Be the first to tell others how MSI P55-DGD65 motherboard Intel® P55 LGA 1156 (Socket H) ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare MSI P55-DGD65 motherboard Intel® P55 LGA 1156 (Socket H) ATX
All motherboard comparisons- MSI P55-DGD65 motherboard Intel® P55 LGA 1156 (Socket H) ATX vsMSI NF520T-C35 motherboard Socket AM2 ATXCompare specs
- MSI P55-DGD65 motherboard Intel® P55 LGA 1156 (Socket H) ATX vsMSI 770T-C45 motherboard AMD 770 Socket AM2 ATXCompare specs

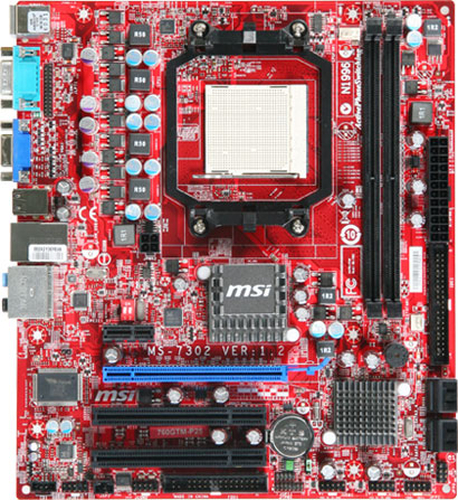

- MSI P55-DGD65 motherboard Intel® P55 LGA 1156 (Socket H) ATX vsMSI 740GTM-P25 motherboard AMDCompare specs

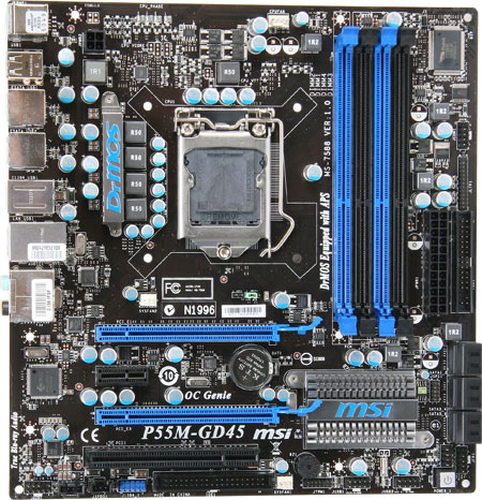

- MSI P55-DGD65 motherboard Intel® P55 LGA 1156 (Socket H) ATX vsMSI P55M-GD45 motherboard LGA 1156 (Socket H) micro ATXCompare specs
- MSI P55-DGD65 motherboard Intel® P55 LGA 1156 (Socket H) ATX vsGIGABYTE GA-P55M-UD4 motherboard Intel® P55 LGA 1156 (Socket H) micro ATXCompare specs

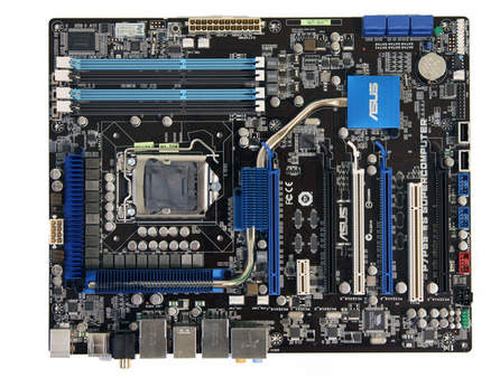

- MSI P55-DGD65 motherboard Intel® P55 LGA 1156 (Socket H) ATX vsASUS P7P55 WS SUPERCOMPUTERCompare specs
- MSI P55-DGD65 motherboard Intel® P55 LGA 1156 (Socket H) ATX vsGIGABYTE GA-P55-UD3R motherboard LGA 1156 (Socket H) ATXCompare specs

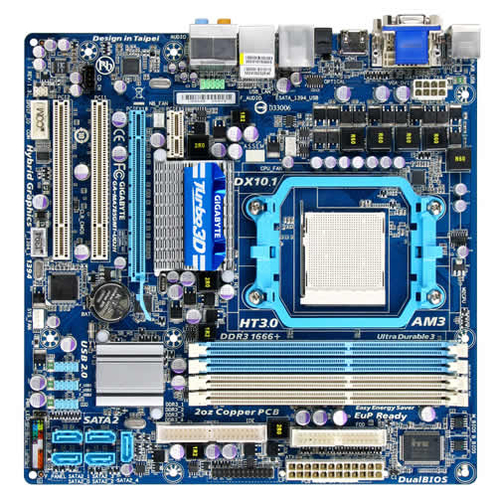

- MSI P55-DGD65 motherboard Intel® P55 LGA 1156 (Socket H) ATX vsGIGABYTE MA785GMT-UD2H motherboard AMDCompare specs
