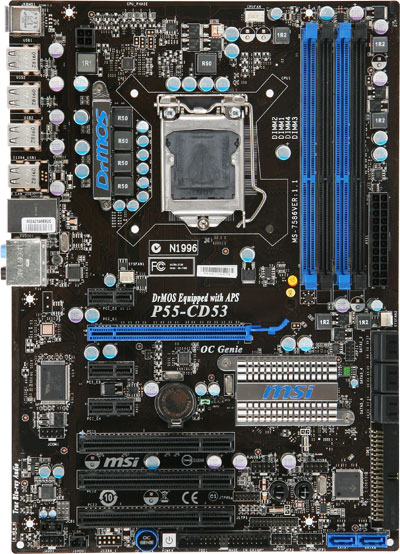

MSI P55-CD53 Intel® P55 LGA 1156 (Socket H) ATX
Model P55-CD53Part no. 601-7586-010EAN 5051964735878
39 specifications
- Memory0 GB
- Processor manufacturerIntel
- Number of memory slots4
- RAID levels0, 1, 5, 10, JBOD
- USB 2.0 connectors2
- USB 2.0 ports quantity10
Overview
- Memory
- 0 GB
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- RAID levels
- 0, 1, 5, 10, JBOD
- USB 2.0 connectors
- 2
- USB 2.0 ports quantity
- 10
- Brand
- MSI
- Category
- Motherboard
- Model
- P55-CD53
- Part numbers
- 601-7586-010, 7586-010B, 911-7586-001, 911-7586-007, 7586-010R, P55-CD53
- EAN / UPC
- 5051964735878, 816909062403, 4719072129132
- Also known as
- MSI P55-CD53 Intel® P55 LGA 1156 (Socket H) ATX
Specifications
39 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1156 (Socket H) |
| Compatible processor series | Intel® Core™ i5 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Memory voltage | 1.5 V |
| Internal memory | 0 GB |
| Maximum internal memory | 16 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 5, 10, JBOD |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 8 |
| Number of Parallel ATA connectors | 1 |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of IEEE1394 connectors | 1 |
| TPM connector | Yes |

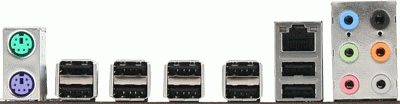

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 10 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 1 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 1 |
Network
| Specification | Value |
|---|---|
| Networking features | Realtek RTL8111DL - Ethernet, Fast Ethernet, Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Motherboard chipset | Intel® P55 |
| Audio chip | Realtek ALC889 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Compatible operating systems | Windows Vista |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 3 |
| PCI Express x16 slots | 1 |
| PCI slots | 3 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 215 mm |
| Depth | 305 mm |
Other features
| Specification | Value |
|---|---|
| I/O ports | On-Board: 1 x Front panel 1 x Serial port 1 x Parallel port 1 x Clear CMOS button 1 x Power button 1 x OC switch 2 x Base Clock Control Buttons |
