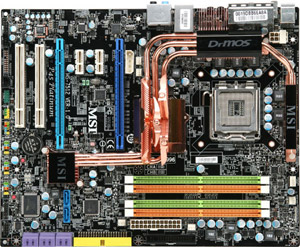

MSI P45PLATINUM Motherboard
Model P45PLATINUM MotherboardPart no. P45PLATINUM
35 specifications
- Processor manufacturerIntel
- Number of memory slots4
- Number of SATA connectors8
- USB 2.0 ports quantity12
- Motherboard form factorATX
- PCI Express x1 slots2
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- Number of SATA connectors
- 8
- USB 2.0 ports quantity
- 12
- Motherboard form factor
- ATX
- PCI Express x1 slots
- 2
- Brand
- MSI
- Category
- Motherboard
- Model
- P45PLATINUM Motherboard
- Part number
- P45PLATINUM
- Also known as
- MSI P45PLATINUM Motherboard LGA 775 (Socket T) ATX
Specifications
35 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
Internal I/O
| Specification | Value |
|---|---|
| Number of SATA connectors | 8 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| Number of IEEE1394 connectors | 1 |
| TPM connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 12 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 1 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| Serial ports quantity | 1 |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | Realtek ALC888 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 2 |
| PCI Express x16 slots | 2 |
| PCI slots | 2 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 243.8 mm |
| Depth | 304.8 mm |
Other features
| Specification | Value |
|---|---|
| Audio output | Yes |
| Floppy disk drive connector | Yes |
