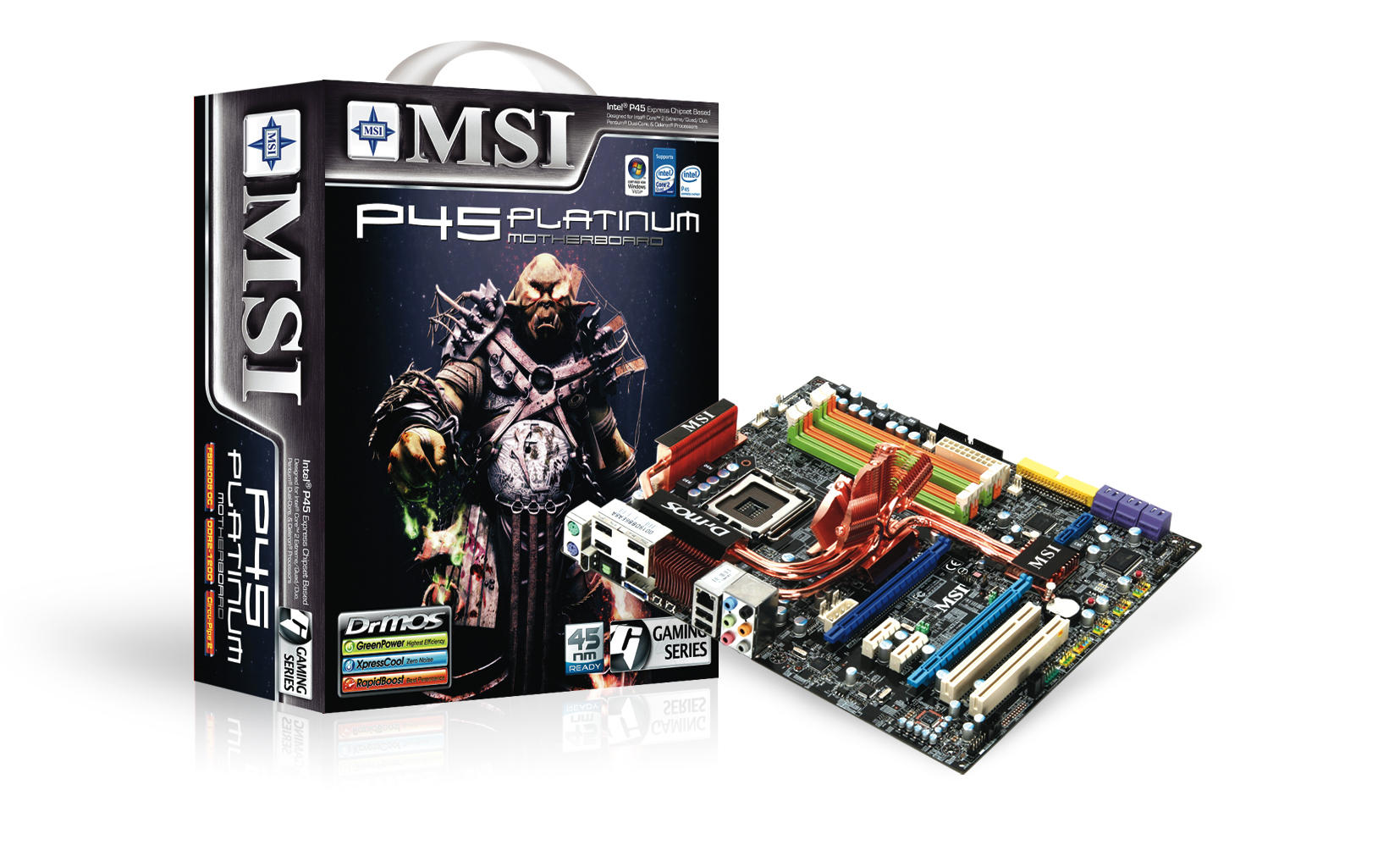

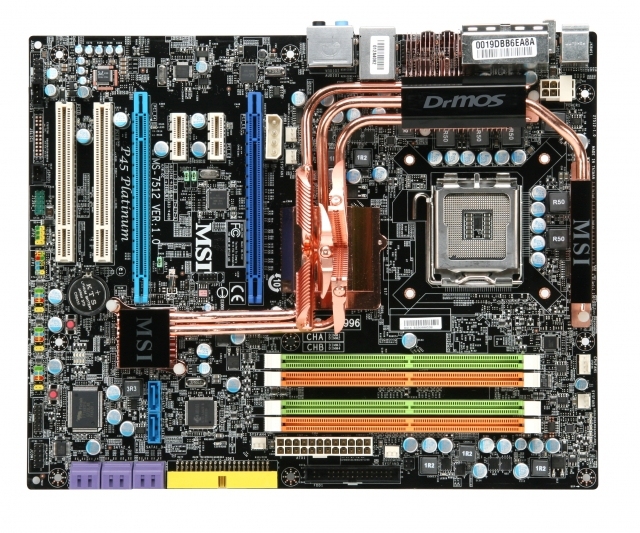

MSI P45 PLATINUM
Model P45 PLATINUMPart no. 7512-020REAN 816909045635
39 specifications
- Processor manufacturerIntel
- Number of memory slots4
- RAID levels0, 1, 10
- USB 2.0 connectors3
- USB 2.0 ports quantity6
- LAN controllerRealtek RTL8111C
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- RAID levels
- 0, 1, 10
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 6
- LAN controller
- Realtek RTL8111C
- Brand
- MSI
- Category
- Motherboard
- Model
- P45 PLATINUM
- Part numbers
- 7512-020R, P45 PLATINUM, 911-7512-001
- EAN / UPC
- 816909045635
- Also known as
- MSI P45 PLATINUM LGA 775 (Socket T) ATX
Specifications
39 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Maximum internal memory | 16 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 10 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of SATA connectors | 8 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| Number of IEEE1394 connectors | 1 |
| TPM connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 1 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8111C |
| Networking features | 10/100/1000 Fast Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | Realtek ALC888 / ALC888T |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Compatible operating systems | Microsoft Windows Vista |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 2 x PCI-E x1 2 x PCI 2 x PCI-E 2.0 x16 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 245 mm |
| Depth | 305 mm |
Other features
| Specification | Value |
|---|---|
| Controller 2nd interface type | Ultra DMA 66/100/133 IDE |
| Controller interface type | SATAII |
| Floppy disk drive connector | Yes |
| Special features | Circu-Pipe 2, Dr. Mos, 2-phase chipset / memory, Green Power Center |
What people say
Reviews & ratings
MSI P45 PLATINUM
- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare MSI P45 PLATINUM

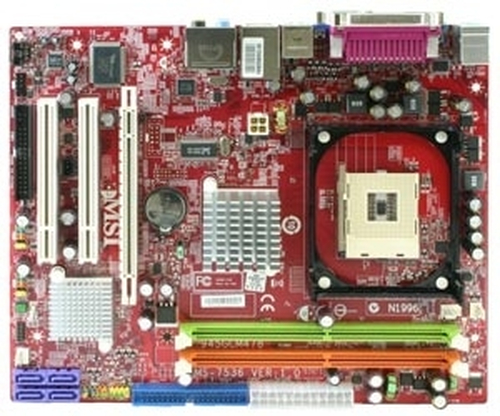

All motherboard comparisons- MSI P45 PLATINUM vsMSI 945GCM478-L Socket 478 micro ATXCompare specs

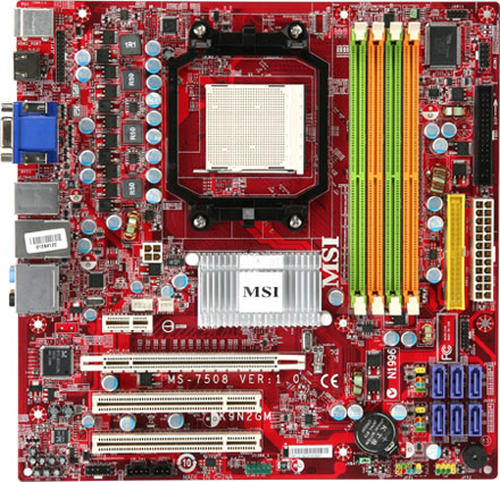

- MSI P45 PLATINUM vsMSI K9N2GM-FD / FIHCompare specs
