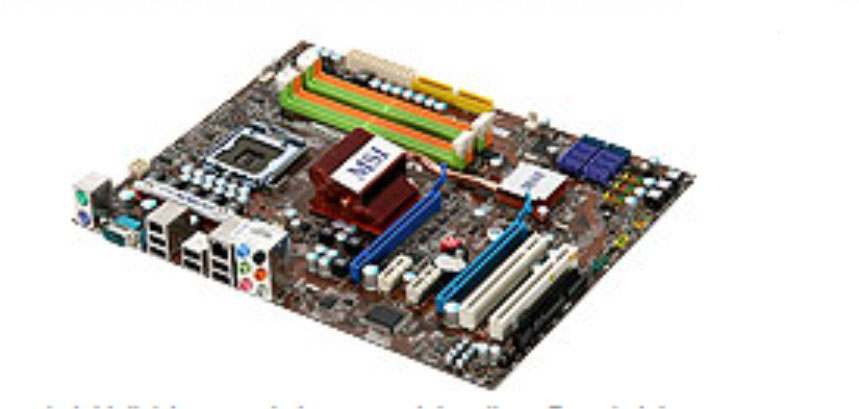

MSI P45 Neo2-FIR
Model P45 Neo2-FIRPart no. 7558-010REAN 4719072092726
38 specifications
- Memory0 GB
- Processor manufacturerIntel
- Number of memory slots4
- USB 2.0 connectors3
- USB 2.0 ports quantity6
- Motherboard form factorATX
Overview
- Memory
- 0 GB
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 6
- Motherboard form factor
- ATX
- Brand
- MSI
- Category
- Motherboard
- Model
- P45 Neo2-FIR
- Part numbers
- 7558-010R, 7558-01S, P45 NEO2-FIR, P45NEO2-FIR
- EAN / UPC
- 4719072092726, 4719072092733
- Also known as
- MSI P45 Neo2-FIR LGA 775 (Socket T) ATX
Specifications
38 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
| Compatible processor series | Intel® Core™2 Duo, Intel® Core™ 2 Extreme, Intel® Core™2 Quad |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Internal memory | 0 GB |
| Maximum internal memory | 16 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of SATA connectors | 8 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| Number of IEEE1394 connectors | 1 |
| TPM connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 1 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking features | IEEE1394 / FireWire, Realtek 8111C |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | Realtek ALC888 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Compatible operating systems | Win Vista |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 2 |
| PCI Express x16 slots | 2 |
| PCI slots | 2 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 305 mm |
Other features
| Specification | Value |
|---|---|
| Floppy disk drive connector | Yes |
| I/O ports | 1 x IDE |
What people say
Reviews & ratings
MSI P45 Neo2-FIR
- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare MSI P45 Neo2-FIR
All motherboard comparisons- MSI P45 Neo2-FIR vsMSI G43M2 LGA 775 (Socket T) micro ATXCompare specs
- MSI P45 Neo2-FIR vsMSI mATX S775Compare specs

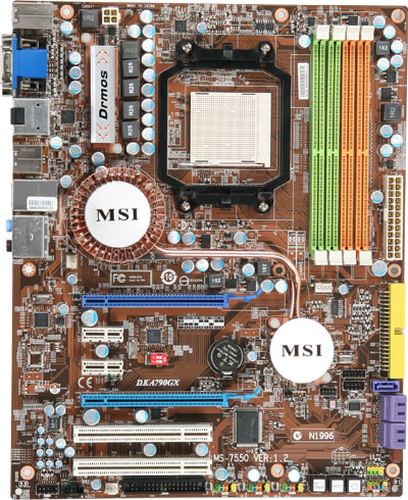

- MSI P45 Neo2-FIR vsMSI DKA790GX AMD 790GX Socket AM2 ATXCompare specs

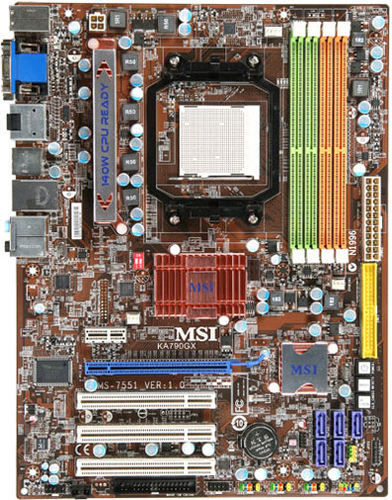

- MSI P45 Neo2-FIR vsMSI KA790GX AMD 790GX LGA 775 (Socket T) ATXCompare specs
- MSI P45 Neo2-FIR vsASUS P5N73-CM LGA 775 (Socket T) micro ATXCompare specs
- MSI P45 Neo2-FIR vsASUS P5Q-E/WiFi-AP LGA 775 (Socket T) ATXCompare specs

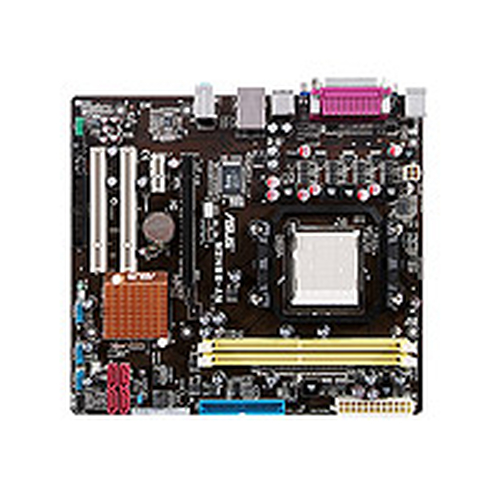

- MSI P45 Neo2-FIR vsASUS M2N68-AM Socket AM2 micro ATXCompare specs

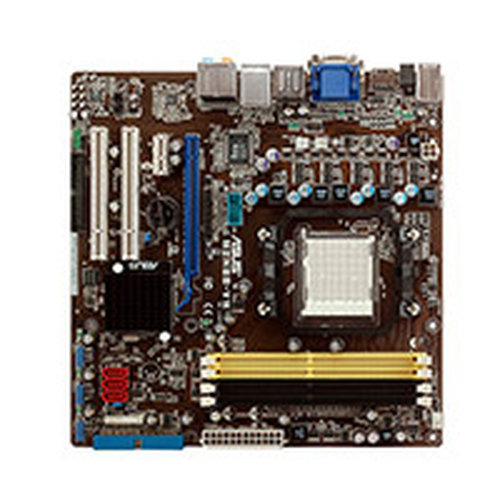

- MSI P45 Neo2-FIR vsASUS M2N68-VM Socket AM2 micro ATXCompare specs
